APPROX WEIGHT: 257.64 lbs.

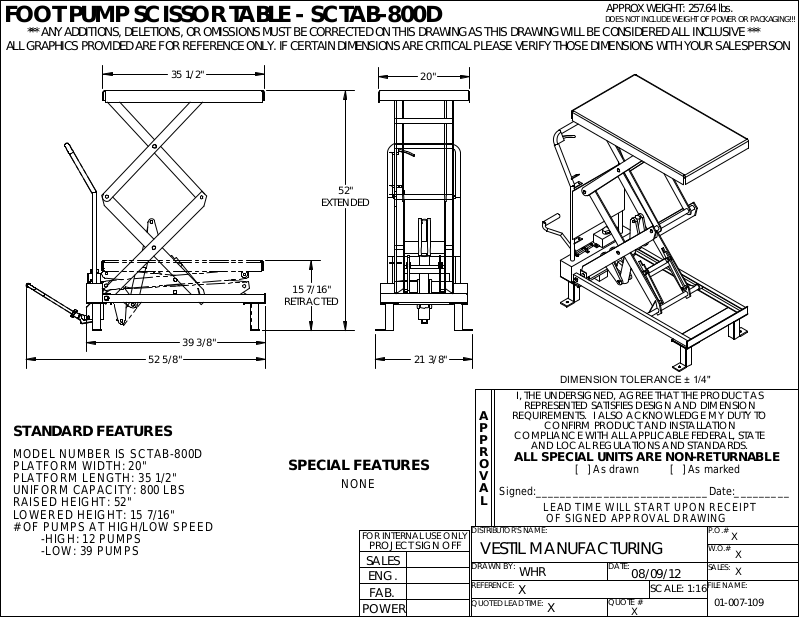

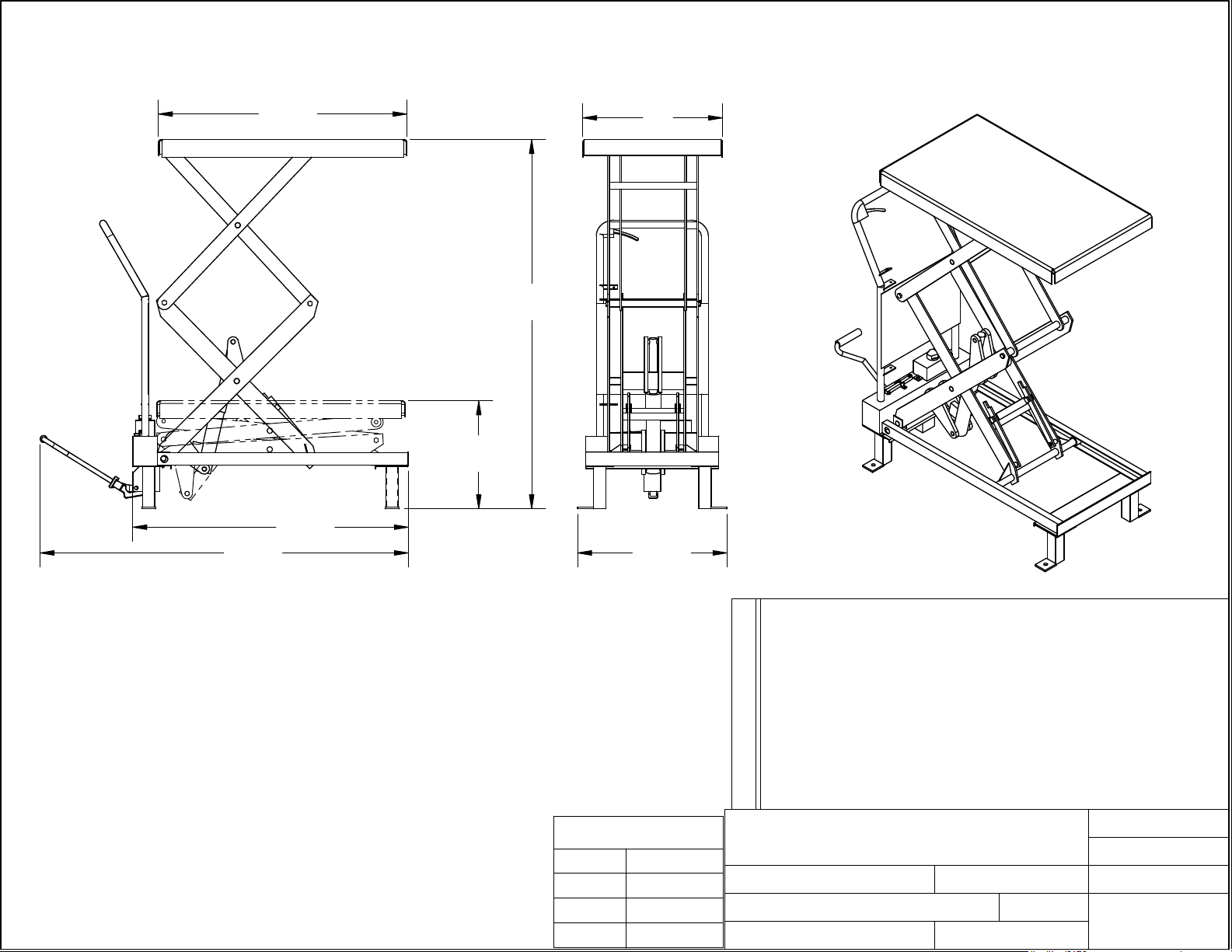

FOOT PUMP SCISSOR TABLE - SCTAB-800D
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
35 1/2"
52 5/8"
20"
52"
EXTENDED
15 7/16"
RETRACTED
39 3/8"
21 3/8"
STANDARD FEATURES
MODEL NUMBER IS SCTAB-800D
PLATFORM WIDTH: 20"
PLATFORM LENGTH: 35 1/2"
UNIFORM CAPACITY: 800 LBS
RAISED HEIGHT: 52"
LOWERED HEIGHT: 15 7/16"
# OF PUMPS AT HIGH/LOW SPEED
-HIGH: 12 PUMPS
-LOW: 39 PUMPS
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
WHR
X
X
DATE:
08/09/12
QUOTE #
X
SCALE: 1:16
P.O.#
W.O.#
SALES:
FILE NAME:
01-007-109
X
X
X
