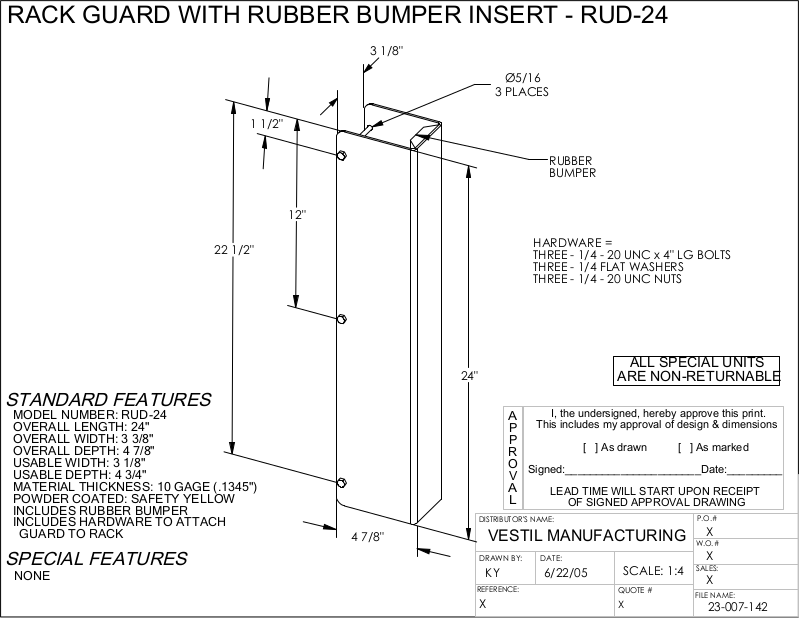

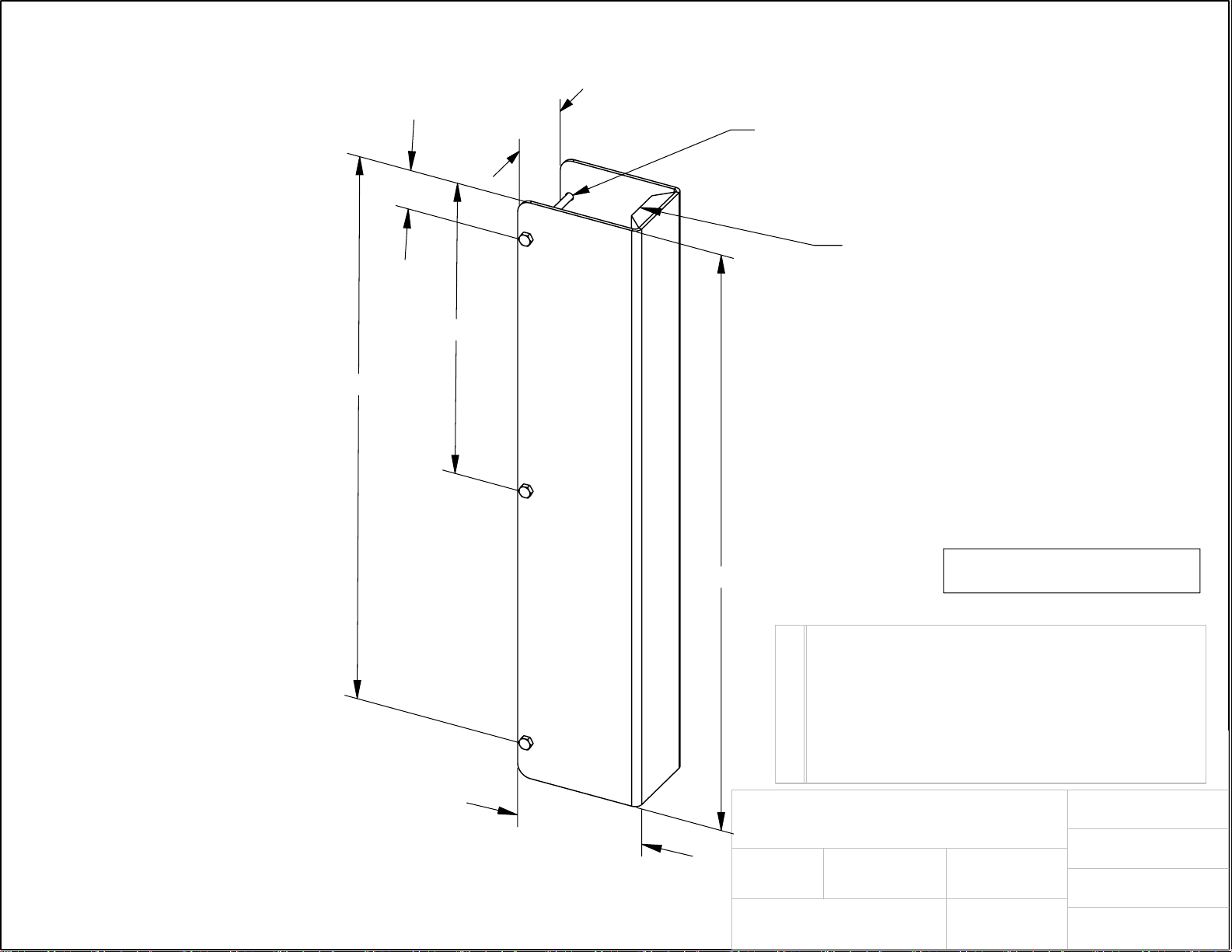

RACK GUARD WITH RUBBER BUMPER INSERT - RUD-24
3 1/8"
Ø5/16
3 PLACES
1 1/2"
RUBBER
BUMPER
12"
22 1/2"
STANDARD FEATURES
MODEL NUMBER: RUD-24
OVERALL LENGTH: 24"
OVERALL WIDTH: 3 3/8"
OVERALL DEPTH: 4 7/8
"
USABLE WIDTH: 3 1/8"
USABLE DEPTH: 4 3/4
"
MATERIAL THICKNESS: 10 GAGE (.1345")
POWDER COATED: SAFETY YELLOW
INCLUDES RUBBER BUMP
INCLUDES HARDWARE TO ATTA
ER
CH
GUARD TO RACK
SPECIAL FEATURES
NONE
4 7/8"
HARDWARE =
THREE - 1/4 - 20 UNC x 4" LG BOLTS
THREE - 1/4 FLAT WASHERS
THREE - 1/4 - 20 UNC NUTS
24"
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
I, the undersigned, hereby approve this print.
This includes my approval of design & dimensions
[ ] As drawn [ ] As marked
Signed:______________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
ARE NON-RETURNABLE
VESTIL MANUFACTURING
DRAWN BY:
KY
REFERENCE:
X
DATE:
6/22/05
SCALE: 1:4
QUOTE #
X
ALL SPECIAL UNITS
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
23-007-142
