APPROX WEIGHT: 864.70 lbs.

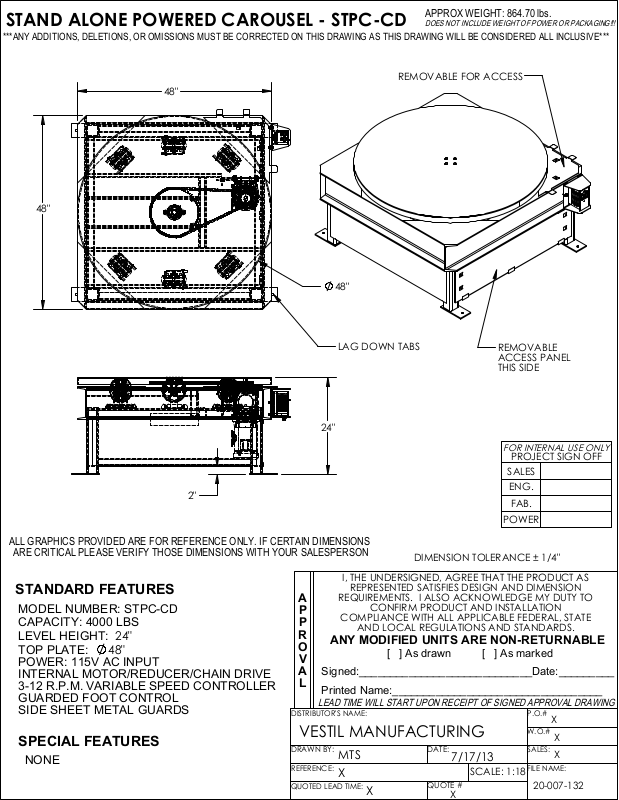

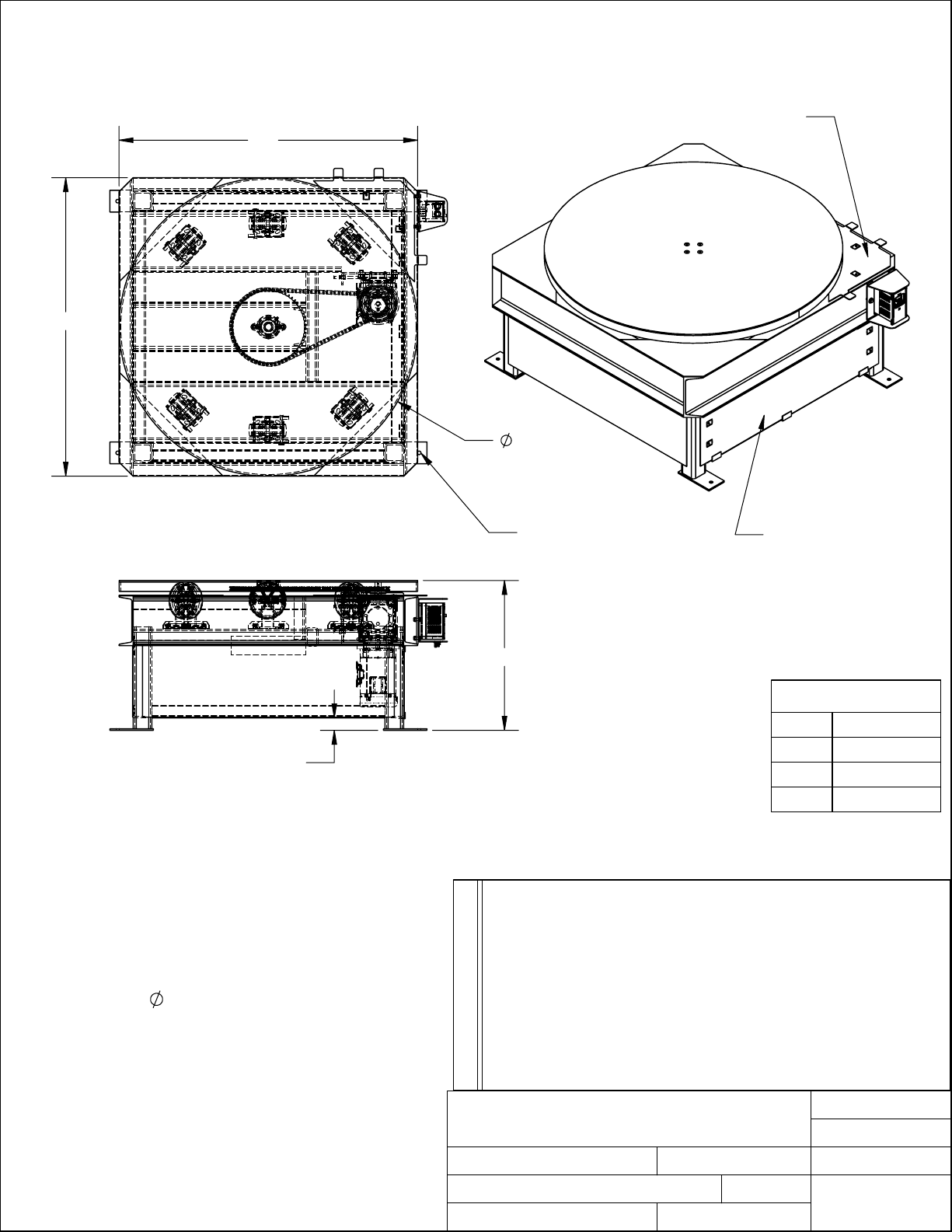

STAND ALONE POWERED CAROUSEL - STPC-CD
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
48"
48"
48"
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
REMOVABLE FOR ACCESS
LAG DOWN TABS
24"
2"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
STANDARD FEATURES
MODEL NUMBER: STPC-CD
CAPACITY: 4000 LBS
LEVEL HEIGHT:
TOP PLATE:
POWER: 115V AC INPUT
INTERNAL MOTOR/REDUCER/CHAIN DRIVE
3-12 R.P.M. VARIABLE SPEED CONTROLLER
GUARDED FOOT CONTROL
SIDE SHEET METAL GUARDS
24"
48"
A
P
P
R
O
V
A
L
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
VESTIL MANUFACTURING
SPECIAL FEATURES
NONE
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
MTS
X
:
REMOVABLE
ACCESS PANEL
THIS SIDE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
CONFIRM PRODUCT AND INSTALLATION
P.O.#
W.O.#
DATE:
SALES:
7/17/13
SCALE: 1:18
X
QUOTE #
X
FILE NAME:
20-007-132
X
X
X
