APPROX WEIGHT: 483.77 lbs.

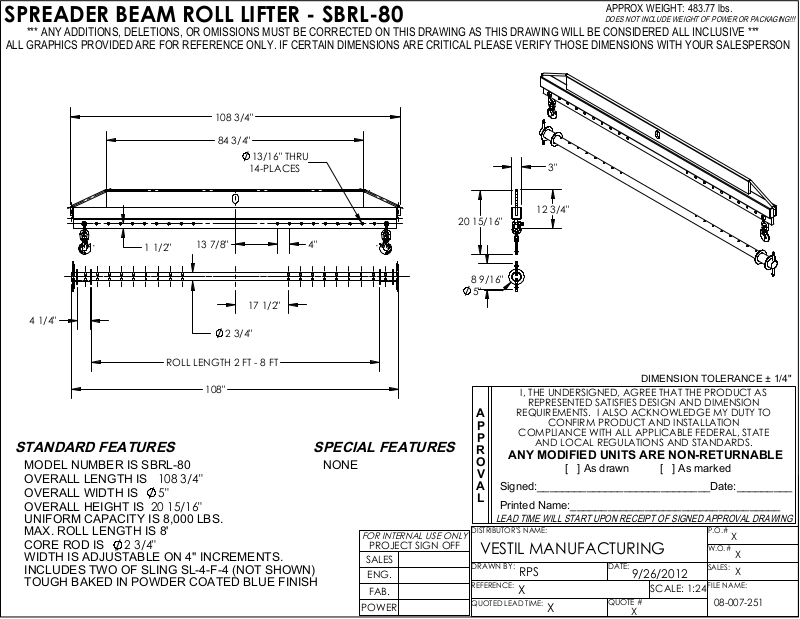

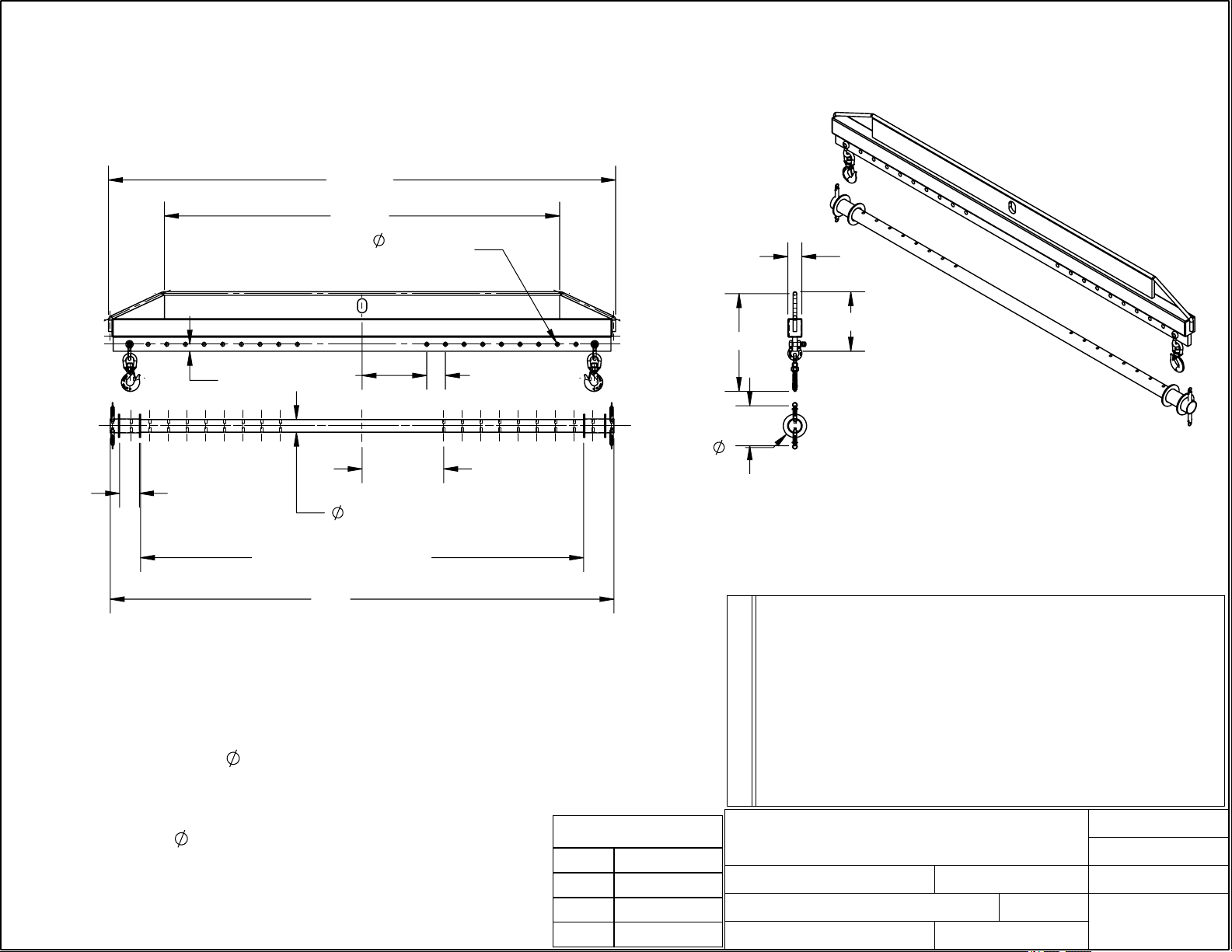

SPREADER BEAM ROLL LIFTER - SBRL-80
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
108 3/4"
84 3/4"
13/16" THRU
14-PLACES
20 15/16"
3"
12 3/4"
1 1/2"
4 1/4"
13 7/8"
17 1/2"
2 3/4"
ROLL LENGTH 2 FT - 8 FT
108"
STANDARD FEATURES
MODEL NUMBER IS SBRL-80
OVERALL LENGTH IS
OVERALL WIDTH IS
OVERALL HEIGHT IS
UNIFORM CAPACITY IS 8,000 LBS.
MAX. ROLL LENGTH IS 8'
CORE ROD IS
WIDTH IS ADJUSTABLE ON 4" INCREMENTS.
INCLUDES TWO OF SLING SL-4-F-4 (NOT SHOWN)
TOUGH BAKED IN POWDER COATED BLUE FINISH
20 15/16"
2 3/4"
108 3/4"
5"
4"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
8 9/16"
5"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
RPS
X
:
X
DATE:
QUOTE #
DIMENSION TOLERANCE ± 1/4"
P.O.#
X
W.O.#
X
SALES:
9/26/2012
SCALE: 1:24
X
X
FILE NAME:
08-007-251
