APPROX WEIGHT: 7.08 lbs.

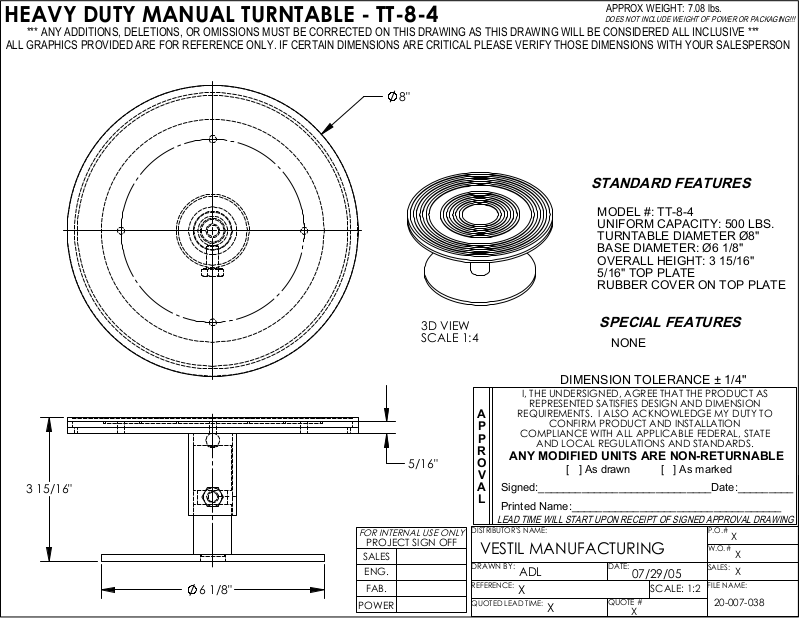

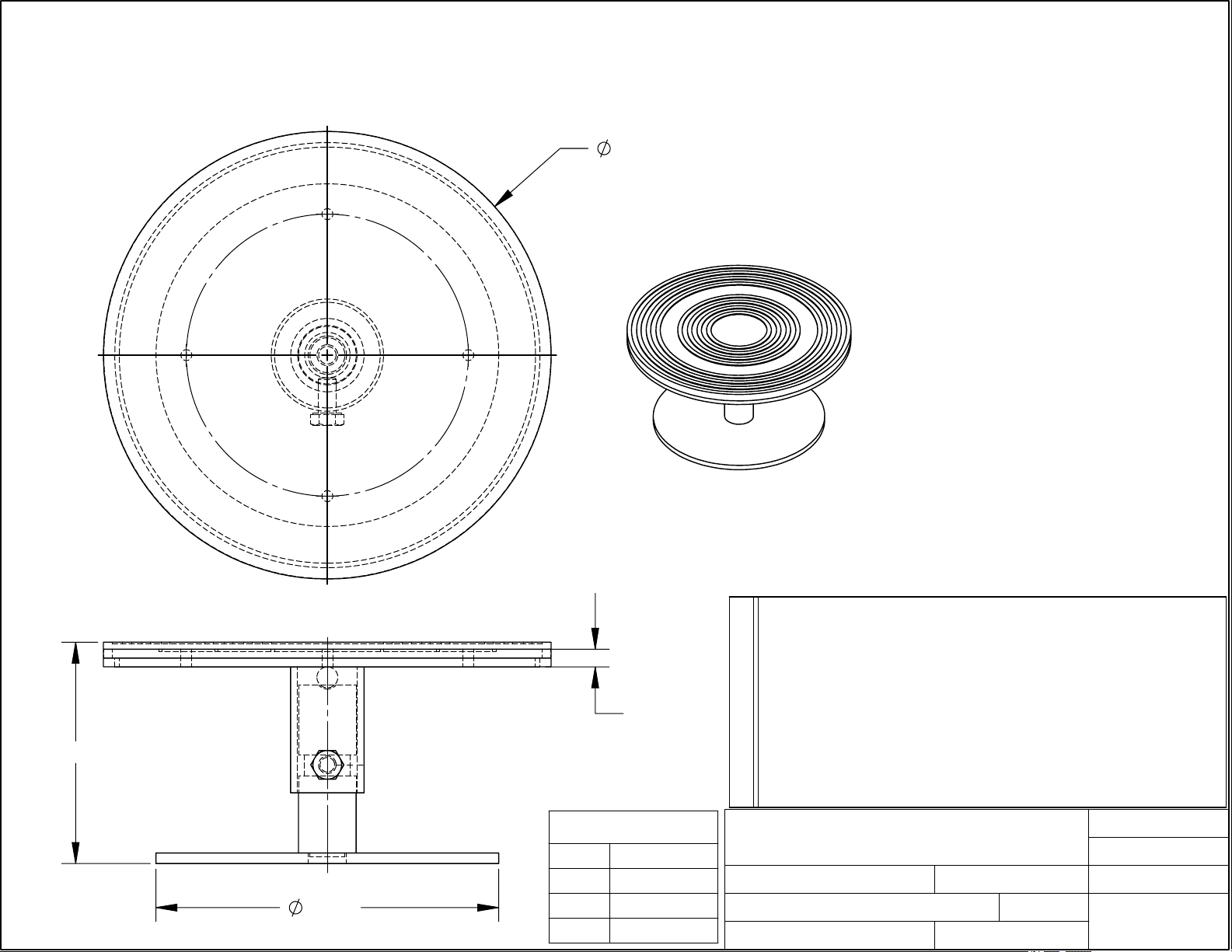

HEAVY DUTY MANUAL TURNTABLE - TT-8-4
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
8"
STANDARD FEATURES
MODEL #: TT-8-4
UNIFORM CAPACITY: 500 LBS.
TURNTABLE DIAMETER Ø8"
BASE DIAMETER: Ø6 1/8"
OVERALL HEIGHT: 3 15/16"
5/16" TOP PLATE
RUBBER COVER ON TOP PLATE
3 15/16"
6 1/8"
3D VIEW
SCALE 1:4
5/16"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
ADL
X
DATE:
07/29/05
SCALE: 1:2
:
X
QUOTE #
X
SALES:
X
FILE NAME:
20-007-038
