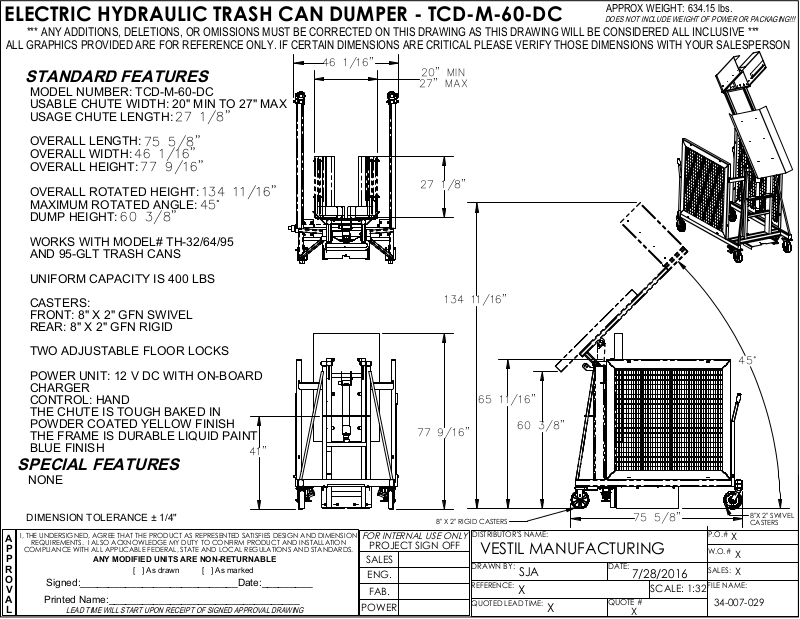

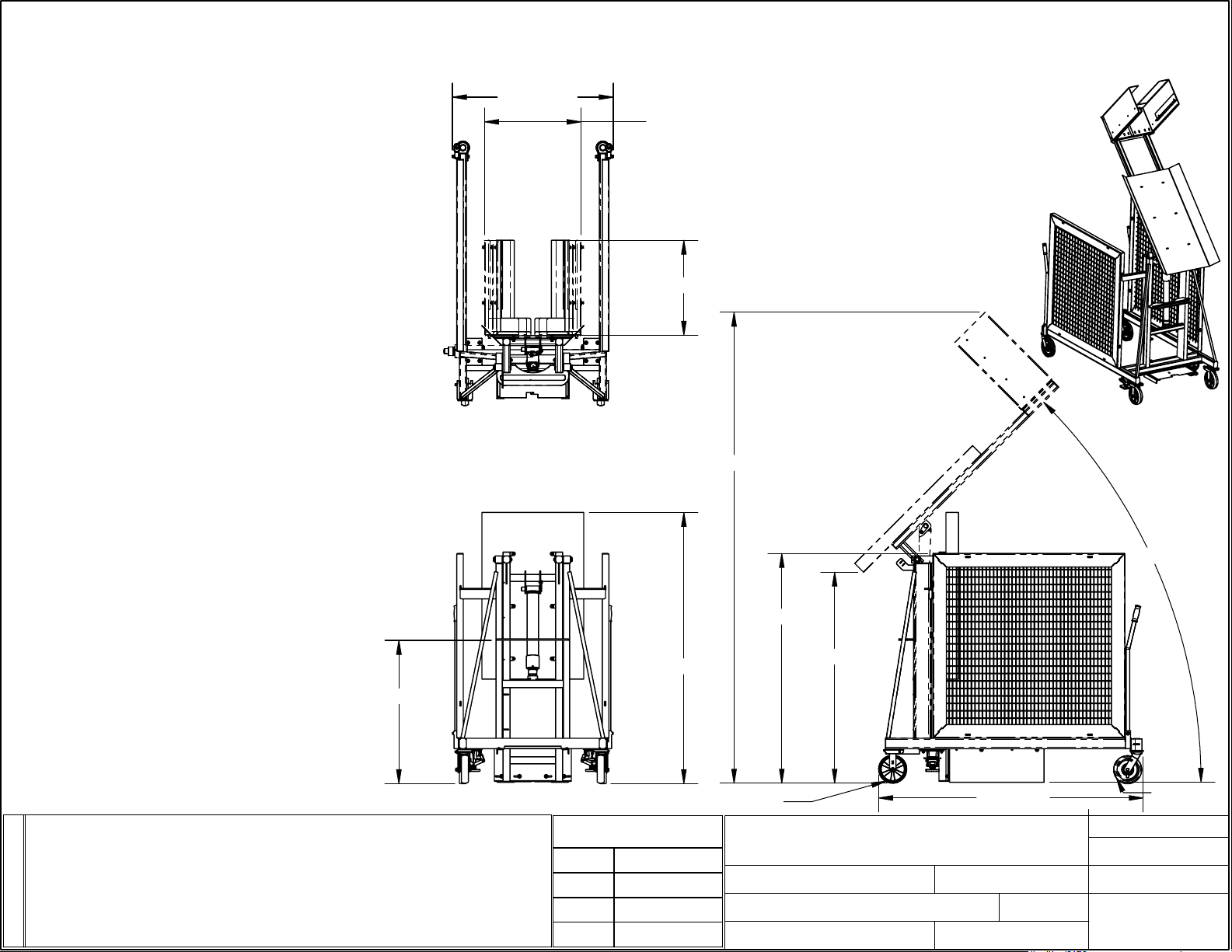

ELECTRIC HYDRAULIC TRASH CAN DUMPER - TCD-M-60-DC
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
APPROX WEIGHT: 634.15 lbs.
46 1/16"
STANDARD FEATURES
20" MIN
27" MAX
MODEL NUMBER: TCD-M-60-DC
USABLE CHUTE WIDTH: 20" MIN TO 27" MAX
USAGE CHUTE LENGTH:
27 1/8"
OVERALL LENGTH:
OVERALL WIDTH:
OVERALL HEIGHT:
OVERALL ROTATED HEIGHT:
MAXIMUM ROTATED ANGLE:
DUMP HEIGHT:
75 5/8"
46 1/16"
77 9/16"
134 11/16"
45°
60 3/8"
WORKS WITH MODEL# TH-32/64/95
AND 95-GLT TRASH CANS
UNIFORM CAPACITY IS 400 LBS
CASTERS:
FRONT: 8" X 2" GFN SWIVEL
REAR: 8" X 2" GFN RIGID
TWO ADJUSTABLE FLOOR LOCKS
POWER UNIT: 12 V DC WITH ON-BOARD
CHARGER
CONTROL: HAND
THE CHUTE IS TOUGH BAKED IN
POWDER COATED YELLOW FINISH
THE FRAME IS DURABLE LIQUID PAINT
BLUE FINISH
SPECIAL FEATURES
NONE
41"
27 1/8"
134 11/16"
77 9/16"
45°
65 11/16"
60 3/8"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS REPRESENTED SATISFIES DESIGN AND DIMENSION
A
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE AND LOCAL REGULATIONS AND STANDARDS.
P
P
R
O
V
A
L
Signed:____________________________Date:_________
Printed Name:__________________________________
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
8" X 2" RIGID CASTERS
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
75 5/8"
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
SJA
X
:
X
DATE:
7/28/2016
QUOTE #
X
SCALE: 1:32
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
34-007-029
8"X 2" SWIVEL
CASTERS
