APPROX WEIGHT: 268.52 lbs.

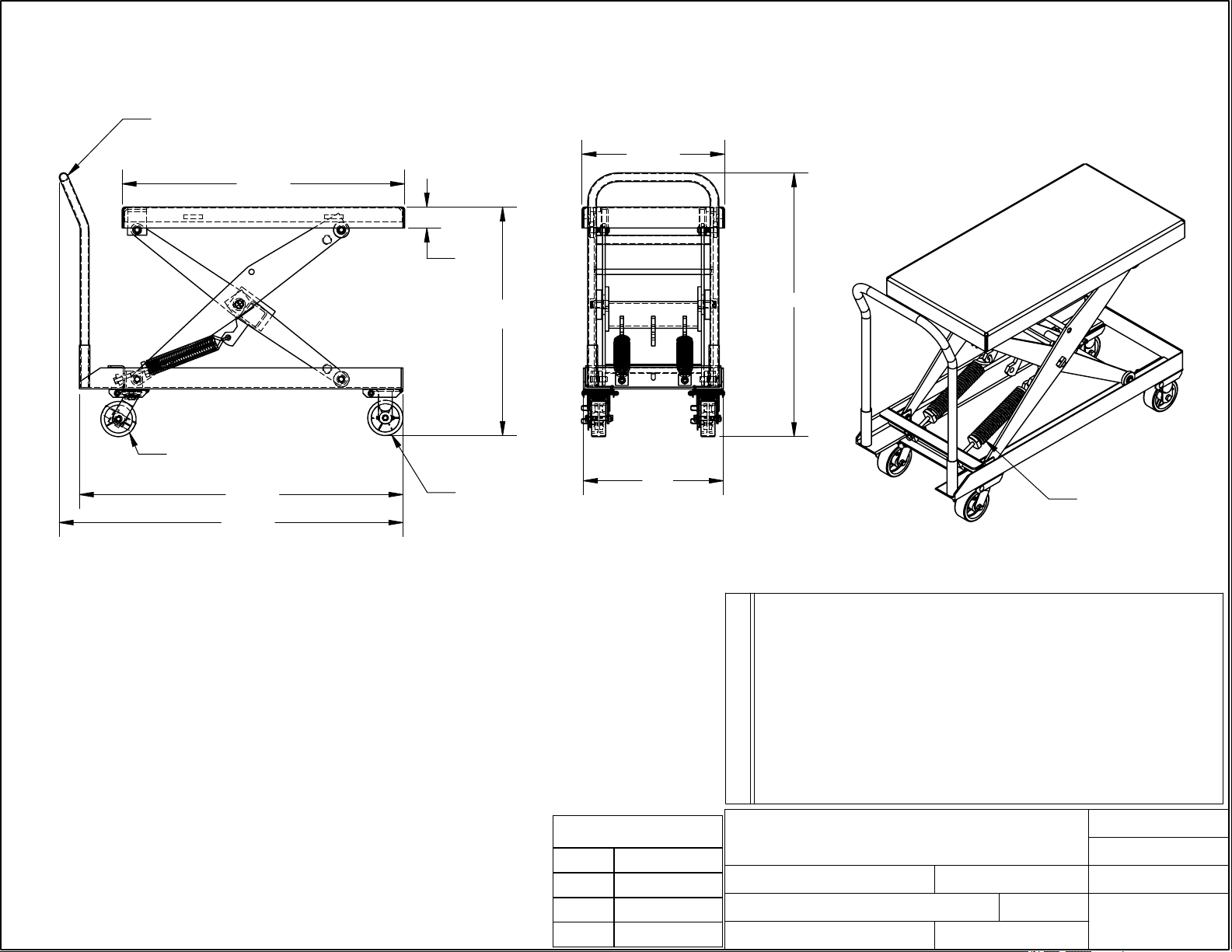

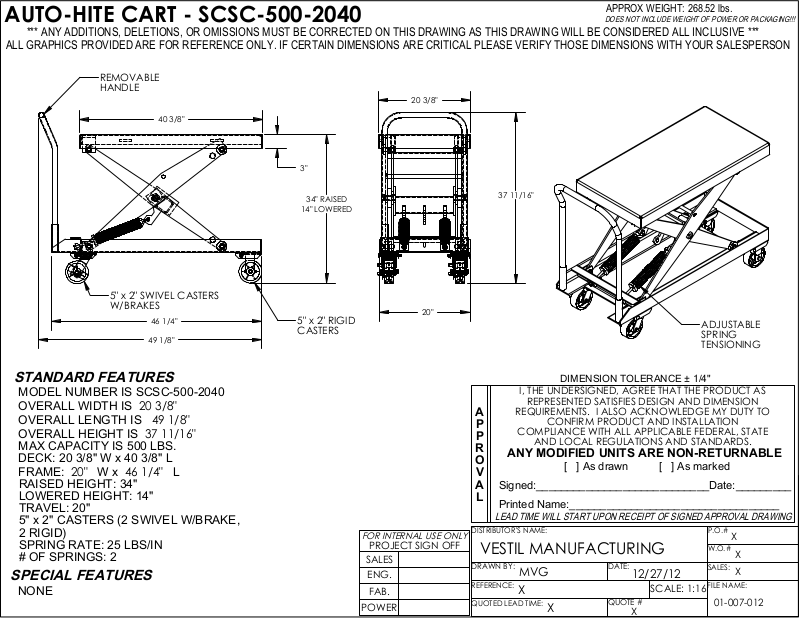

AUTO-HITE CART - SCSC-500-2040
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
REMOVABLE
HANDLE
20 3/8"
40 3/8"
3"
5" x 2" SWIVEL CASTERS
W/BRAKES
46 1/4"
49 1/8"
STANDARD FEATURES
MODEL NUMBER IS SCSC-500-2040
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
20 3/8"
49 1/8"
37 11/16"
MAX CAPACITY IS 500 LBS.
DECK: 20 3/8" W x 40 3/8" L
FRAME:
20"
W x
46 1/4"
L
RAISED HEIGHT: 34"
LOWERED HEIGHT: 14"
TRAVEL: 20"
5" x 2" CASTERS (2 SWIVEL W/BRAKE,
2 RIGID)
SPRING RATE: 25 LBS/IN
# OF SPRINGS: 2
SPECIAL FEATURES
NONE
34" RAISED
14" LOWERED
5" x 2" RIGID
CASTERS
20"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
37 11/16"
ADJUSTABLE
SPRING
TENSIONING
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
MVG
X
DATE:
12/27/12
SCALE: 1:16
:
X
QUOTE #
X
SALES:
X
FILE NAME:
01-007-012
