Page 1
APPROX WEIGHT: 178.46 lbs.

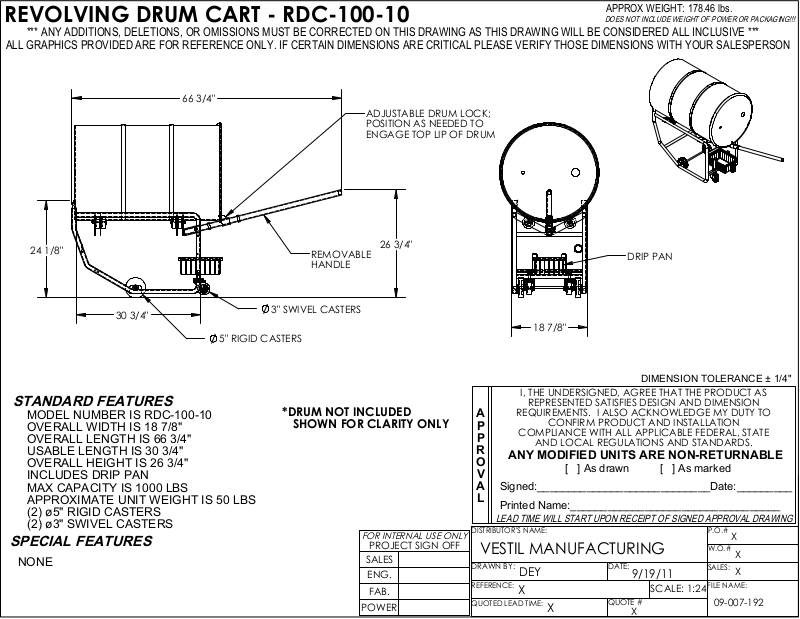

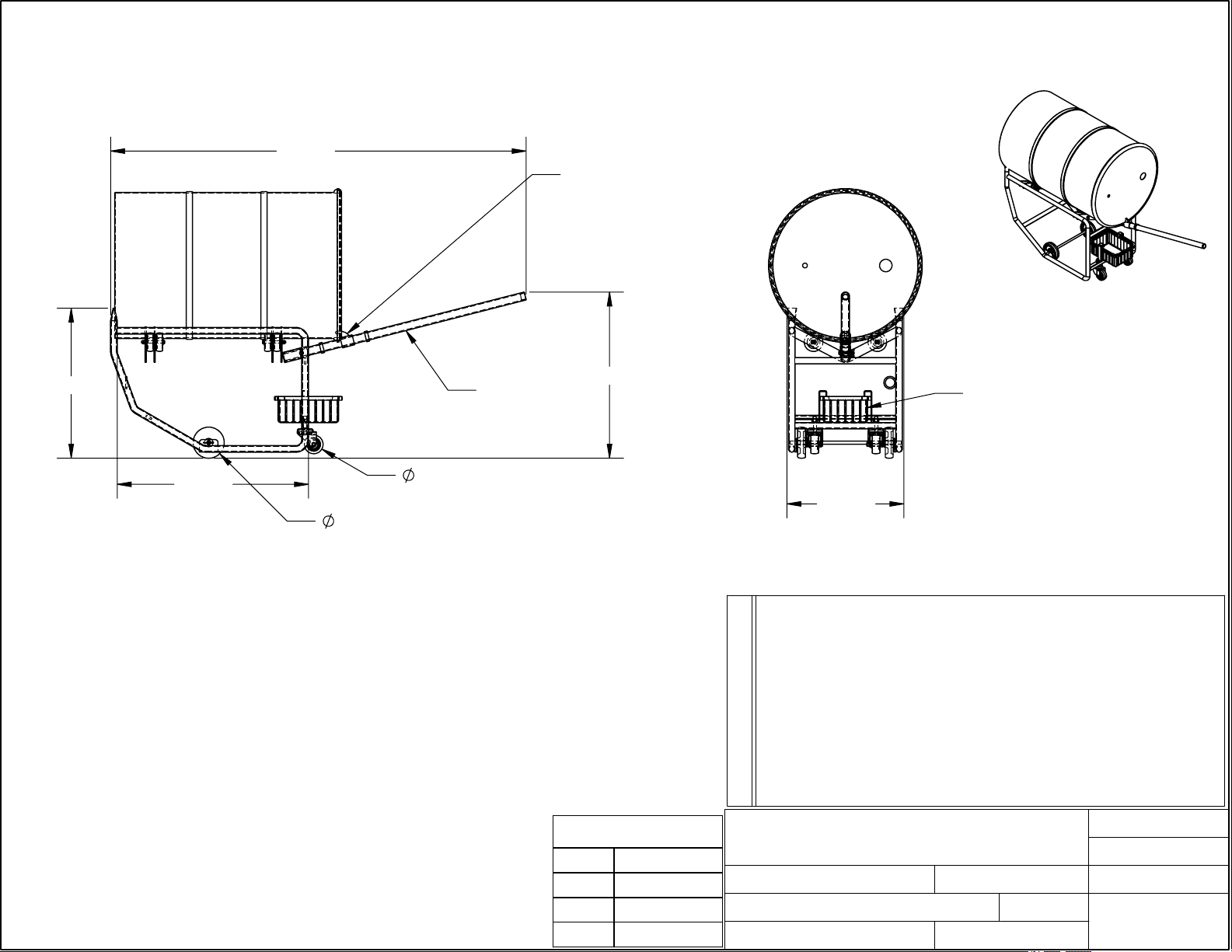

REVOLVING DRUM CART - RDC-100-10
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
66 3/4"
ADJUSTABLE DRUM LOCK;
POSITION AS NEEDED TO
ENGAGE TOP LIP OF DRUM
24 1/8"
30 3/4"
STANDARD FEATURES
MODEL NUMBER IS RDC-100-10
OVERALL WIDTH IS 18 7/8"
OVERALL LENGTH IS 66 3/4"
USABLE LENGTH IS 30 3/4"
OVERALL HEIGHT IS 26 3/4"
INCLUDES DRIP PAN
MAX CAPACITY IS 1000 LBS
APPROXIMATE UNIT WEIGHT IS 50 LBS
(2) ø5" RIGID CASTERS
(2) ø3" SWIVEL CASTERS
SPECIAL FEATURES
NONE
3" SWIVEL CASTERS
5" RIGID CASTERS
*DRUM NOT INCLUDED
SHOWN FOR CLARITY ONLY
REMOVABLE
HANDLE
FOR INTERNAL USE ONLY
POWER
26 3/4"
PROJECT SIGN OFF
SALES
ENG.
FAB.
DRIP PAN
18 7/8"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
DEY
X
DATE:
9/19/11
SCALE: 1:24
:
X
QUOTE #
X
SALES:
X
FILE NAME:
09-007-192
