APPROX WEIGHT: 10.26 lbs.

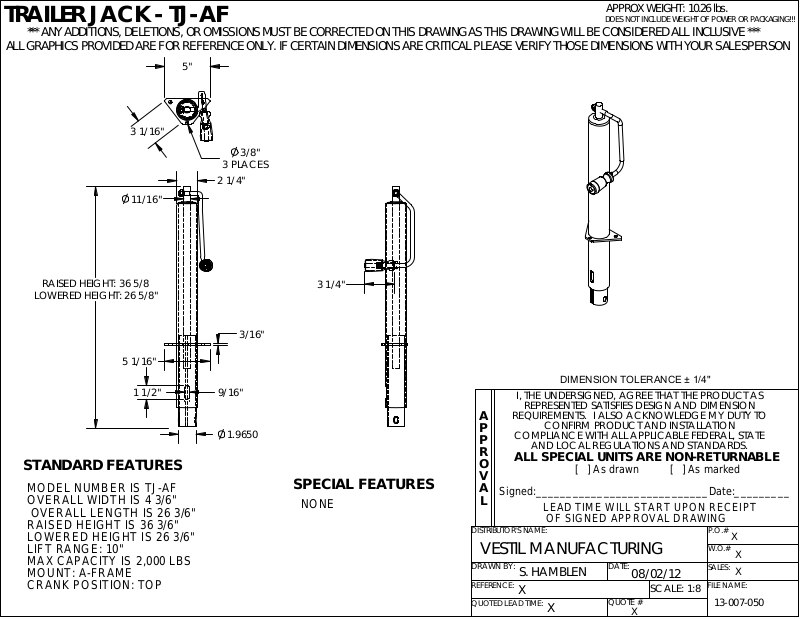

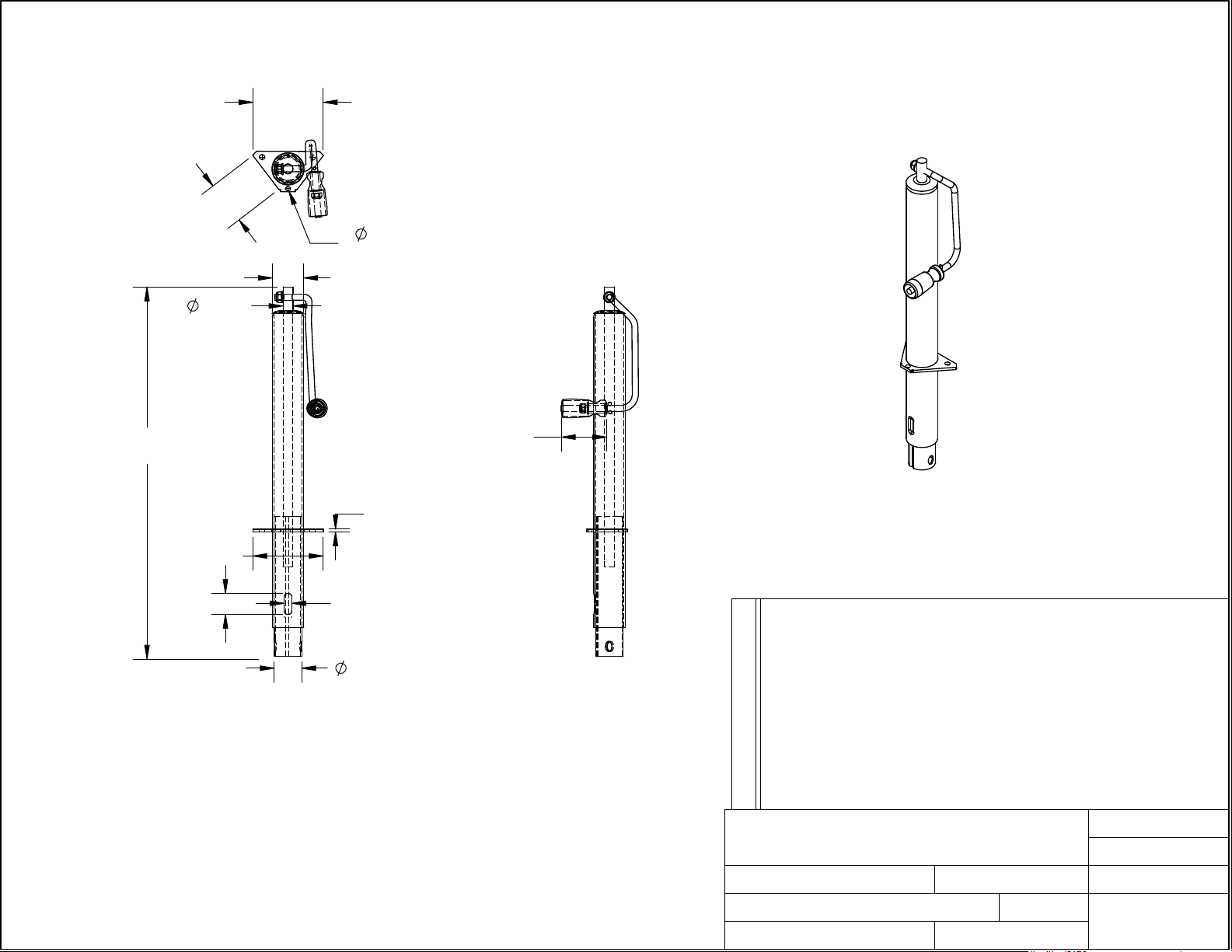

TRAILER JACK - TJ-AF
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
5"
3 1/16"
3/8"
3 PLACES
2 1/4"
11/16"
RAISED HEIGHT: 36 5/8
LOWERED HEIGHT: 26 5/8"
5 1/16"
1 1/2" 9/16"
STANDARD FEATURES
MODEL NUMBER IS TJ-AF
OVERALL WIDTH IS 4 3/6"
OVERALL LENGTH IS 26 3/6"
RAISED HEIGHT IS 36 3/6"
LOWERED HEIGHT IS 26 3/6"
LIFT RANGE: 10"
MAX CAPACITY IS 2,000 LBS
MOUNT: A-FRAME
CRANK POSITION: TOP
3/16"
1.9650
3 1/4"
SPECIAL FEATURES
NONE
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
S. HAMBLEN
X
X
DATE:
08/02/12
QUOTE #
X
SCALE: 1:8
P.O.#
W.O.#
SALES:
FILE NAME:
13-007-050
X
X
X
