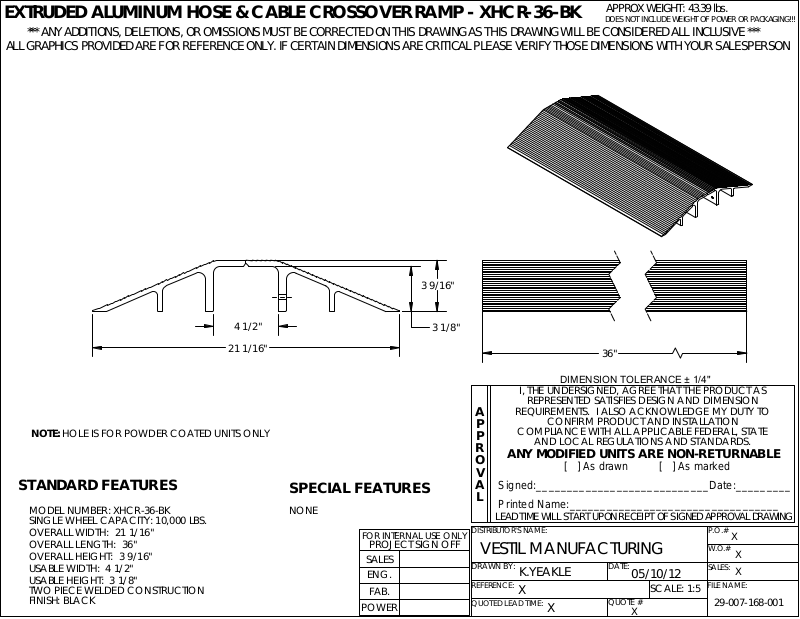

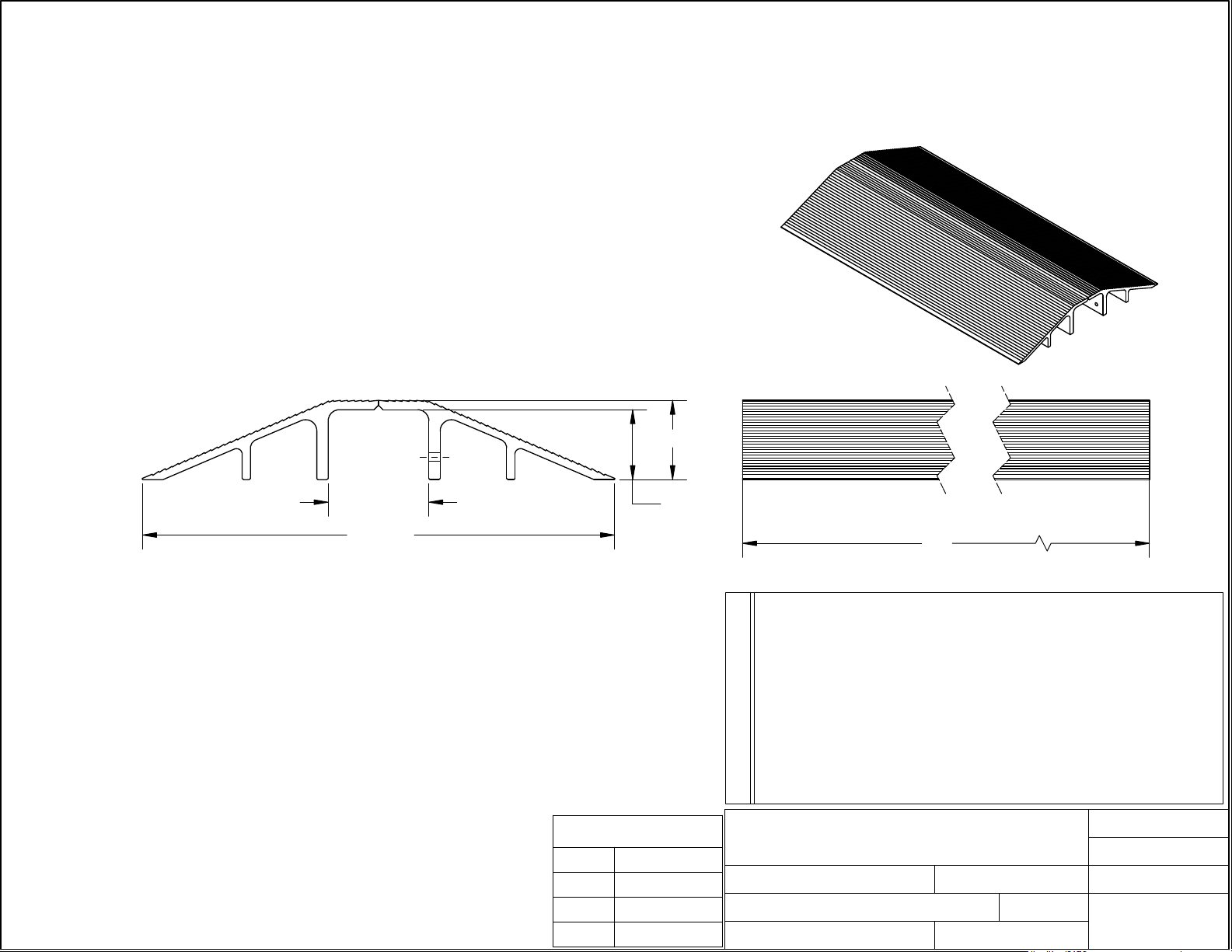

EXTRUDED ALUMINUM HOSE & CABLE CROSSOVER RAMP - XHCR-36-BK
APPROX WEIGHT: 43.39 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
3 9/16"
4 1/2"
21 1/16"
NOTE: HOLE IS FOR POWDER COATED UNITS ONLY
STANDARD FEATURES
MODEL NUMBER: XHCR-36-BK
SINGLE WHEEL CAPACITY: 10,000 LBS.
OVERALL WIDTH: 21 1/16"
OVERALL LENGTH: 36"
OVERALL HEIGHT: 3 9/16"
USABLE WIDTH: 4 1/2"
USABLE HEIGHT: 3 1/8"
TWO PIECE WELDED CONSTRUCTION
FINISH: BLACK
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
3 1/8"
36"
DIMENSION TOLERANCE ± 1/4"
