APPROX WEIGHT: 14.99 lbs.

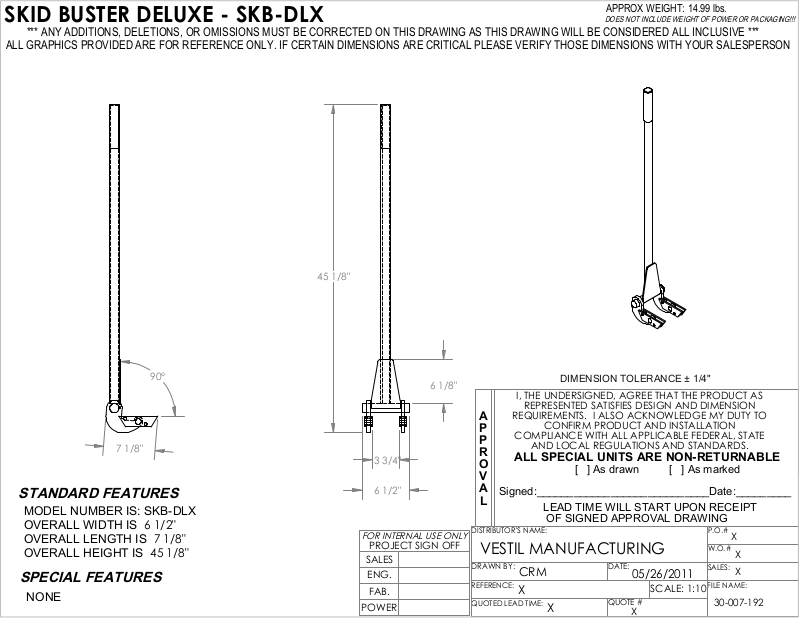

SKID BUSTER DELUXE - SKB-DLX
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
45 1/8"
90°
7 1/8"
STANDARD FEATURES
MODEL NUMBER IS: SKB-DLX
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
6 1/2"
7 1/8"
45 1/8"
SPECIAL FEATURES
NONE
6 1/8"
3 3/4"
6 1/2"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
AGREE THAT
THE PRODUCT AS
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
CRM
X
:
X
DATE:
05/26/2011
QUOTE #
X
SCALE: 1:10
P.O.#
W.O.#
SALES:
FILE NAME:
30-007-192
X
X
X
