APPROX WEIGHT: 350.99 lbs.

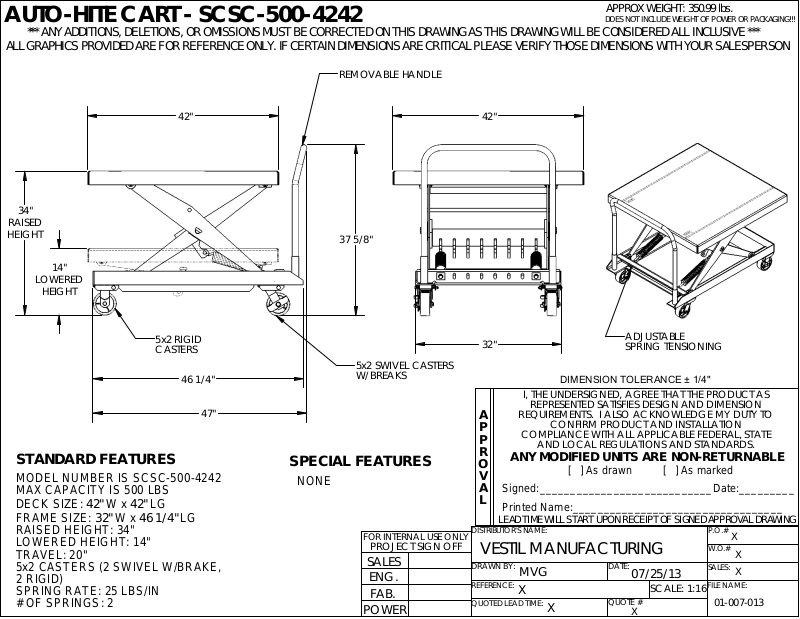

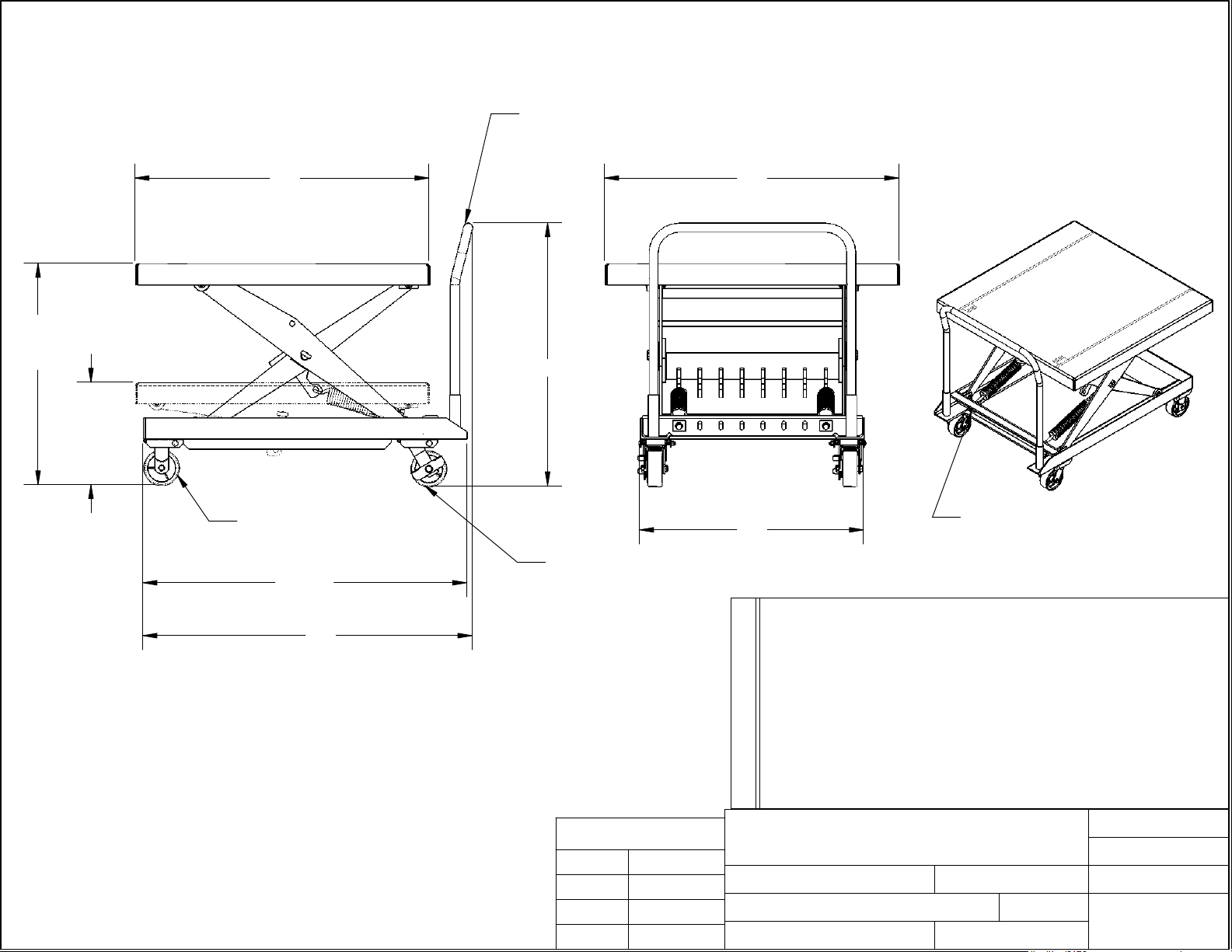

AUTO-HITE CART - SCSC-500-4242
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
REMOVABLE HANDLE
42"
34"
RAISED
HEIGHT
14"
LOWERED
HEIGHT
5x2 RIGID
CASTERS
46 1/4"
STANDARD FEATURES
MODEL NUMBER IS SCSC-500-4242
MAX CAPACITY IS 500 LBS
DECK SIZE:
FRAME SIZE: 32" W x 46 1/4" LG
RAISED HEIGHT: 34"
LOWERED HEIGHT: 14"
TRAVEL: 20"
5x2 CASTERS (2 SWIVEL W/BRAKE,
2 RIGID)
SPRING RATE: 25 LBS/IN
# OF SPRINGS: 2
42"
W x
42"
LG
47"
37 5/8"
5x2 SWIVEL CASTERS
W/BREAKS
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
42"
32"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
MVG
X
X
ADJUSTABLE
SPRING TENSIONING
DATE:
07/25/13
SCALE: 1:16
QUOTE #
X
P.O.#
X
W.O.#
SALES:
FILE NAME:
01-007-013
X
X
