APPROX WEIGHT: 739 lbs.

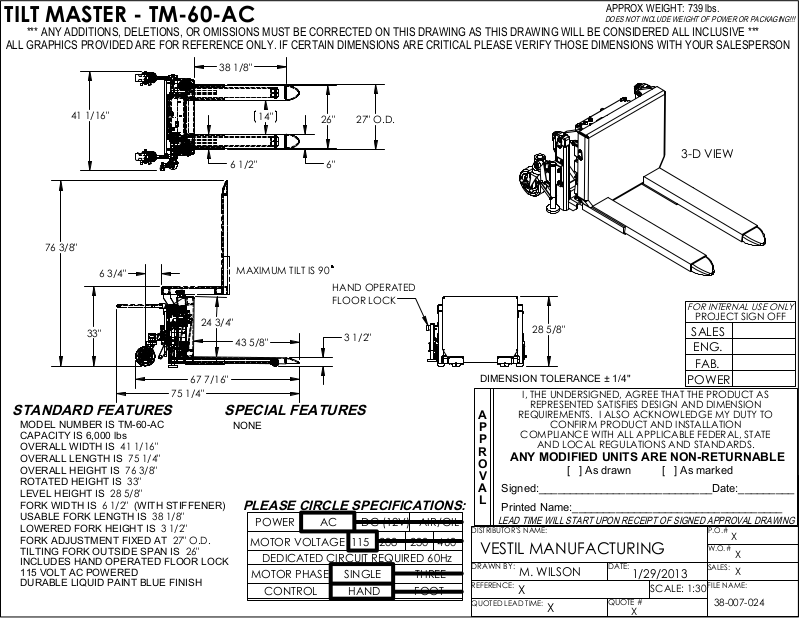

TILT MASTER - TM-60-AC
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
38 1/8"
41 1/16"
76 3/8"
6 3/4"
24 3/4"
33"
67 7/16"
75 1/4"
STANDARD FEATURES
MODEL NUMBER IS TM-60-AC
CAPACITY IS 6,000 lbs
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
ROTATED HEIGHT IS
LEVEL HEIGHT IS
FORK WIDTH IS
USABLE FORK LENGTH IS
LOWERED FORK HEIGHT IS
FORK ADJUSTMENT FIXED AT
TILTING FORK OUTSIDE SPAN IS
INCLUDES HAND OPERATED FLOOR LOCK
115 VOLT AC POWERED
DURABLE LIQUID PAINT BLUE FINISH
41 1/16"
76 3/8"
28 5/8"
6 1/2"
75 1/4"
33"
(WITH STIFFENER)
38 1/8"
3 1/2"
27" O.D.
26"
14"
6 1/2"
MAXIMUM TILT IS 90
43 5/8"
26"
27" O.D.
6"
HAND OPERATED
FLOOR LOCK
3 1/2"
SPECIAL FEATURES
NONE
PLEASE CIRCLE SPECIFICATIONS:
POWER AC DC (12V) AIR/OIL
MOTOR VOLTAGE 115 208 230 460
DEDICATED CIRCUIT REQUIRED 60Hz
MOTOR PHASE SINGLE THREE
CONTROL HAND FOOT
3-D VIEW
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
28 5/8"
SALES
ENG.
FAB.
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
M. WILSON
X
:
X
DATE:
1/29/2013
SCALE: 1:30
QUOTE #
X
POWER
P.O.#
W.O.#
SALES:
FILE NAME:
38-007-024
X
X
X
