Page 1
APPROX WEIGHT: 9.79 lbs.

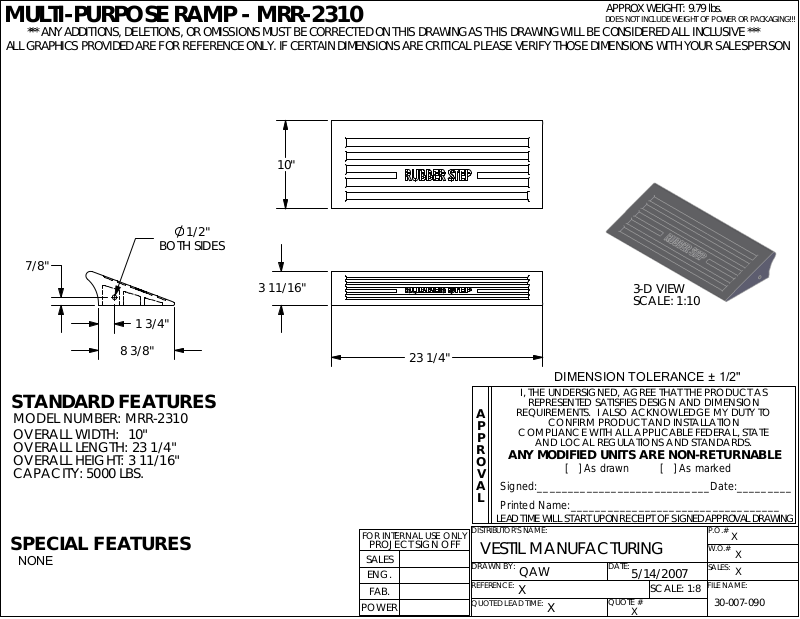

MULTI-PURPOSE RAMP - MRR-2310
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
10"
1/2"
BOTH SIDES
7/8"
1 3/4"
8 3/8"
STANDARD FEATURES
MODEL NUMBER: MRR-2310
OVERALL WIDTH:
10"
OVERALL LENGTH: 23 1/4"
OVERALL HEIGHT: 3 11/16"
CAPACITY: 5000 LBS.
SPECIAL FEATURES
NONE
3 11/16"
23 1/4"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
3-D VIEW
SCALE: 1:10
DIMENSION TOLERANCE ± 1/2"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
QAW
X
DATE:
5/14/2007
SCALE: 1:8
X
QUOTE #
X
SALES:
X
FILE NAME:
30-007-090
