APPROX WEIGHT: 1047.85 lbs.

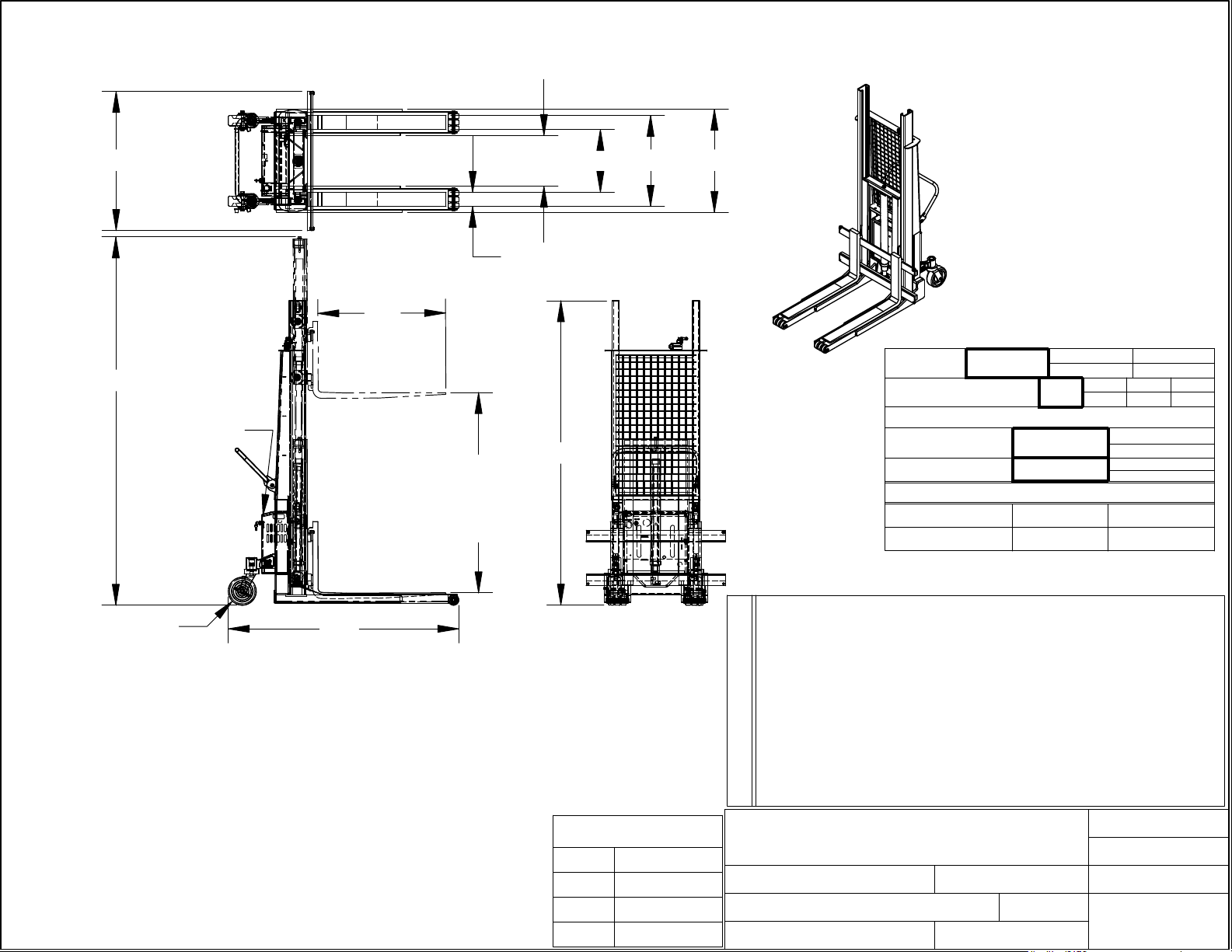

BASKET AND SKID STACKER - PMSS-60-AC
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
36"
105 1/2"
115V AC
POWER UNIT
8 X 3 PHENOLIC
SWIVEL CASTERS
66"
STANDARD FEATURES
MODEL NUMBER IS PMSS-60-AC
CAPACITY IS 4,000LBS
OVERALL WIDTH IS
OUTSIDE LEG WIDTH
OVERALL LENGTH IS 66"
OVERALL LOWERED HEIGHT IS
OVERALL RAISED HEIGHT IS
FORK SIZE IS 1 1/2" THICK X
LOWERED FORK HEIGHT IS 3 1/2"
RAISED FORK HEIGHT IS 60"
8 X 3 PHENOLIC SWIVEL CASTERS IN REAR
115V AC POWER UNIT
CONTROL PENDANT W/ 8' CORD NOT SHOWN
39 3/4"
29 1/2"
88"
105 1/2"
4"
WIDE X
36"
LONG
14 1/2" 29 1/2" 39 3/4"
18" 26"
4"
SERVICE
88"
RANGE
3 1/2"
TO 60"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
PLEASE CIRCLE SPECIFICATIONS:
POWER AC DC AIR/OIL
MOTOR VOLTAGE 115 208 230 460
DEDICATED CIRCUIT REQUIRED
MOTOR PHASE SINGLE THREE
CONTROL HAND FOOT
~ ALL BATTERY CHARGERS ARE 115V AC ~
BATTERY CHRG.
*
CHRG. INDICATOR
*
* AVAILABLE AT ADDITIONAL COST
*
*
REMOTE ON-BOARD
YES NO
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
K.HOOS
X
X
DATE:
9/19/2016
SCALE: 1:32
QUOTE #
X
SALES:
X
FILE NAME:
15-007-103-001
*
>
