APPROX WEIGHT: 12.57 lbs.

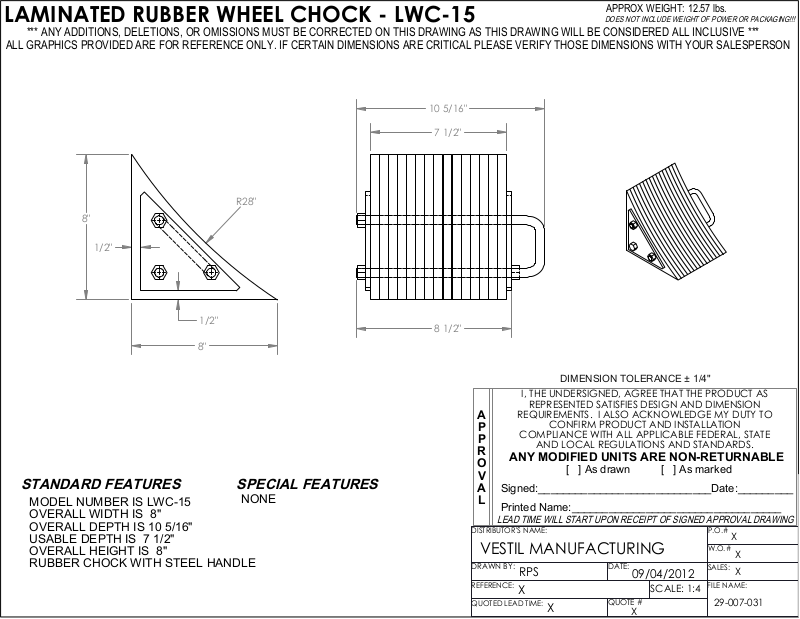

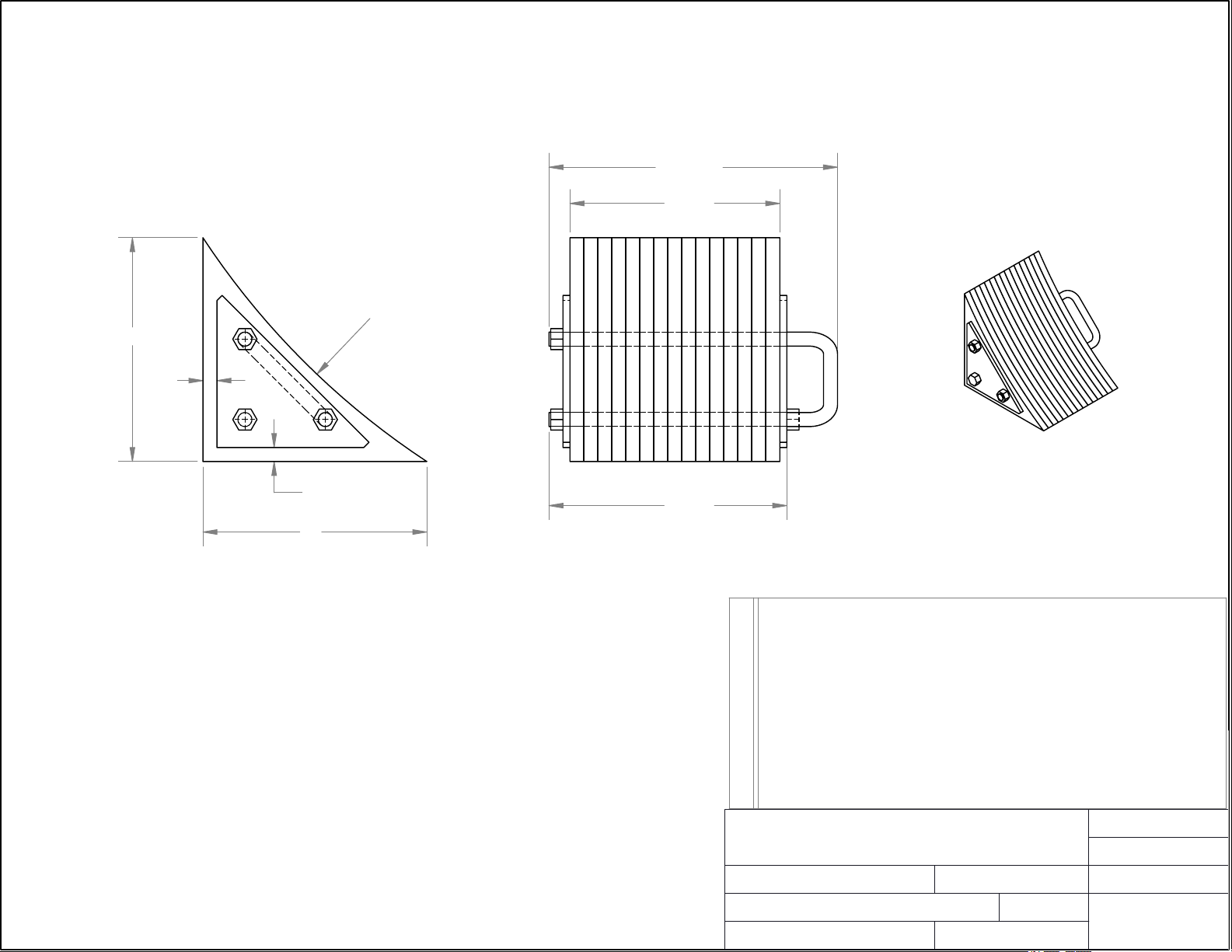

LAMINATED RUBBER WHEEL CHOCK - LWC-15
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
10 5/16"
7 1/2"
R28"
8"
1/2"
1/2"
8"
STANDARD FEATURES
MODEL NUMBER IS LWC-15
OVERALL WIDTH IS 8"
OVERALL DEPTH IS 10 5/16"
USABLE DEPTH IS 7 1/2"
OVERALL HEIGHT IS 8"
RUBBER CHOCK WITH STEEL HANDLE
SPECIAL FEATURES
NONE
8 1/2"
DIMENSION TOLERANCE ± 1/4"
