APPROX WEIGHT: 282.68 lbs.

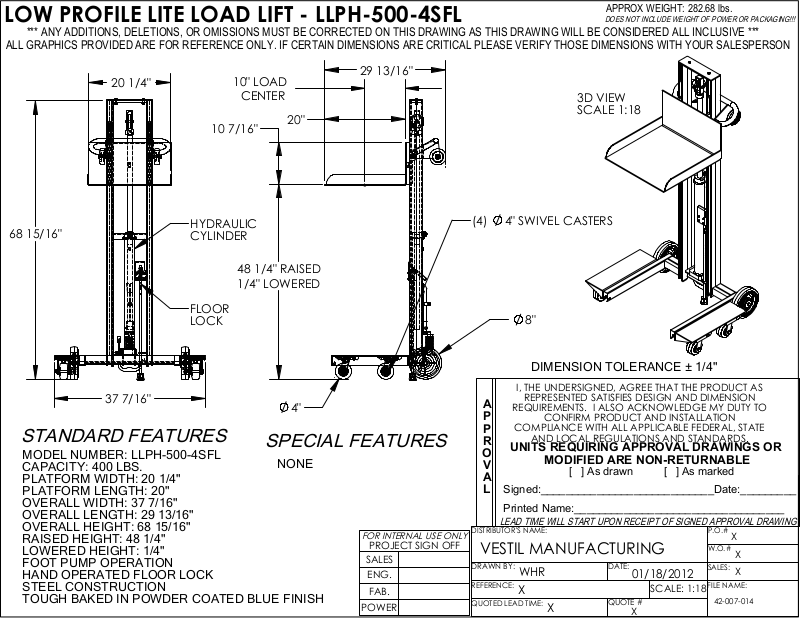

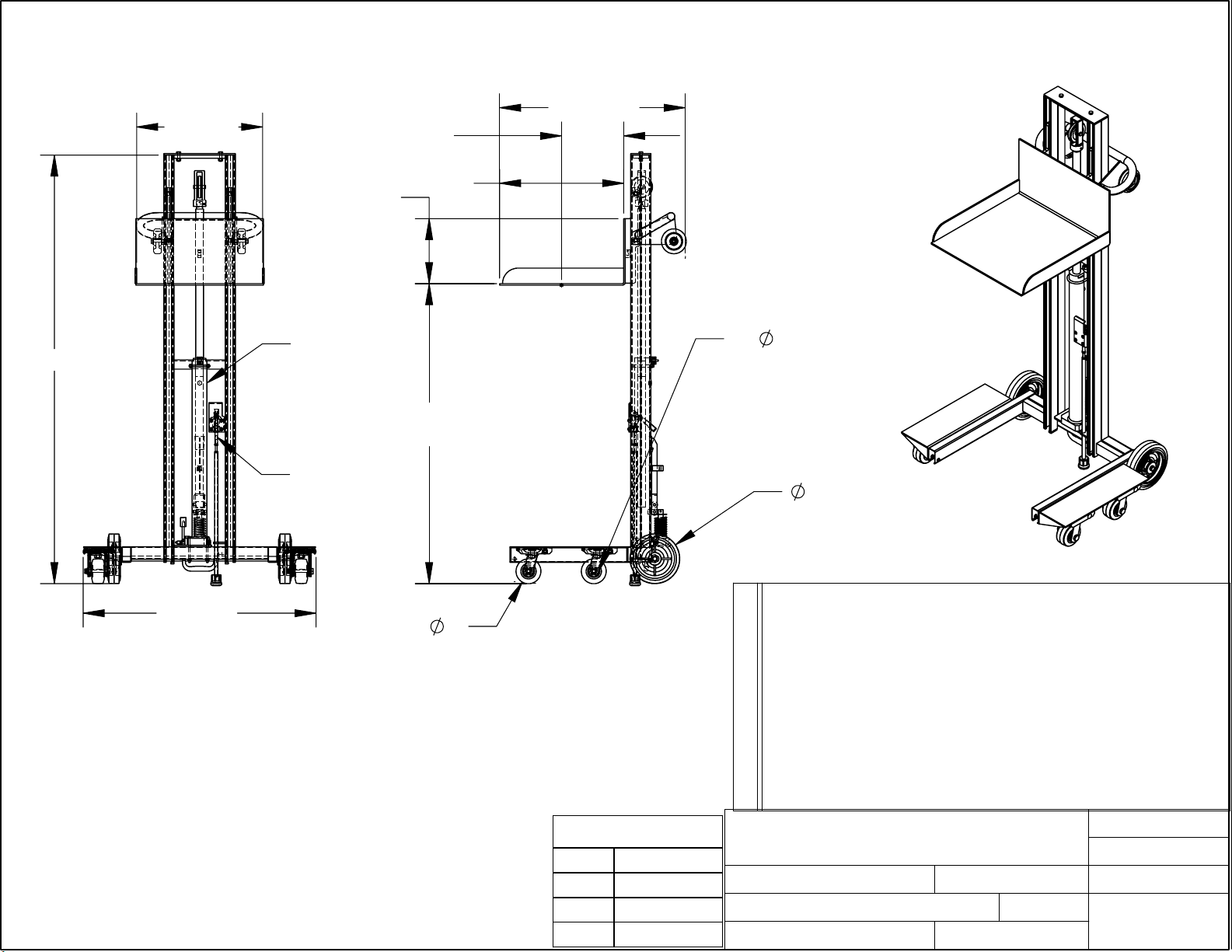

LOW PROFILE LITE LOAD LIFT - LLPH-500-4SFL
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
29 13/16"
10"
20 1/4"
LOAD
CENTER
3D VIEW
SCALE 1:18
20"
10 7/16"
HYDRAULIC
68 15/16"
CYLINDER
48 1/4" RAISED
1/4" LOWERED
FLOOR
LOCK
37 7/16"
STANDARD FEATURES
SPECIAL FEATURES
MODEL NUMBER: LLPH-500-4SFL
CAPACITY: 400 LBS.
NONE
PLATFORM WIDTH: 20 1/4"
PLATFORM LENGTH: 20"
OVERALL WIDTH: 37 7/16"
OVERALL LENGTH: 29 13/16"
OVERALL HEIGHT: 68 15/16"
RAISED HEIGHT: 48 1/4"
LOWERED HEIGHT: 1/4"
FOOT PUMP OPERATION
HAND OPERATED FLOOR LOCK
STEEL CONSTRUCTION
TOUGH BAKED IN POWDER COATED BLUE FINISH
4"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
(4)
4" SWIVEL CASTERS
8"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
WHR
X
:
X
DATE:
01/18/2012
SCALE: 1:18
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
42-007-014
