APPROX WEIGHT: 107.73 lbs.

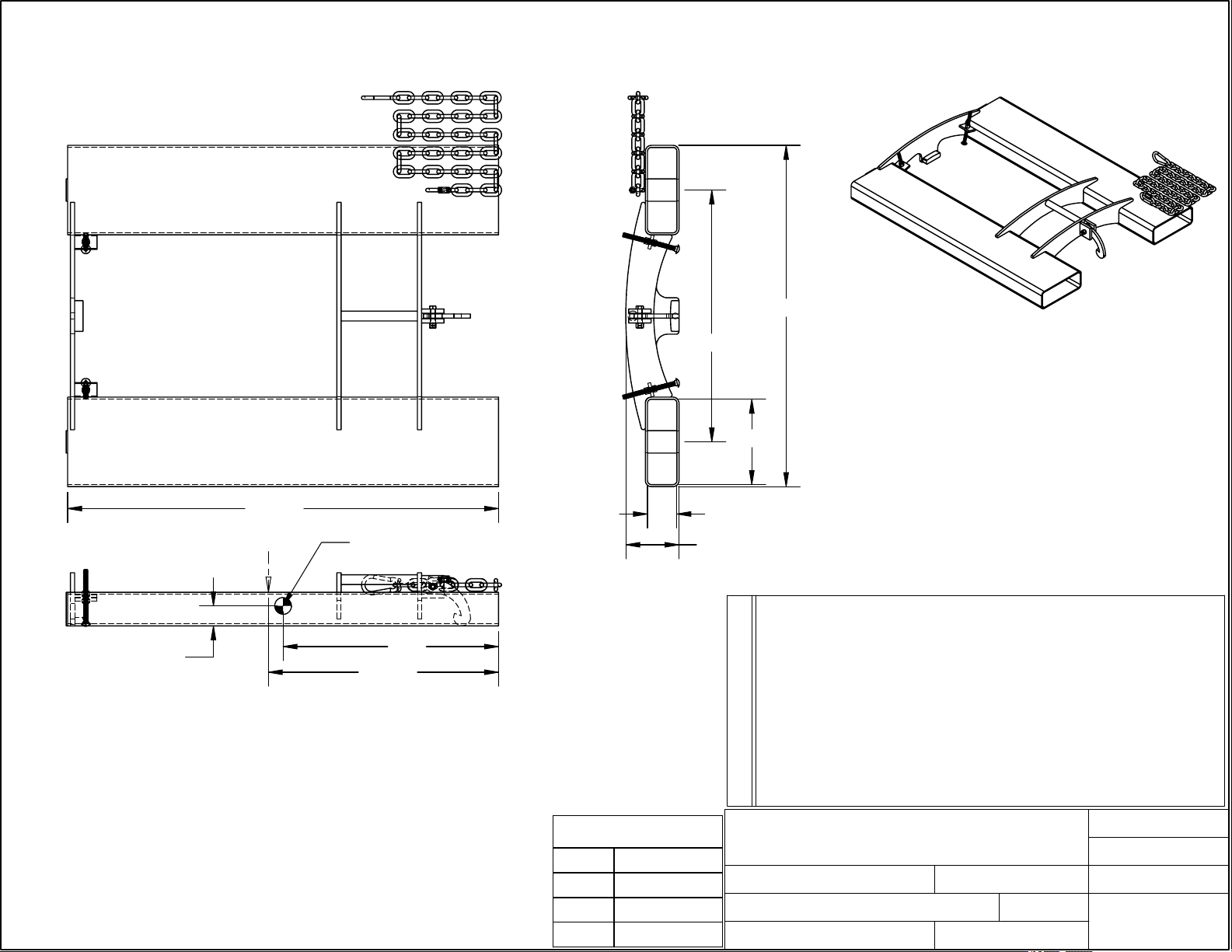

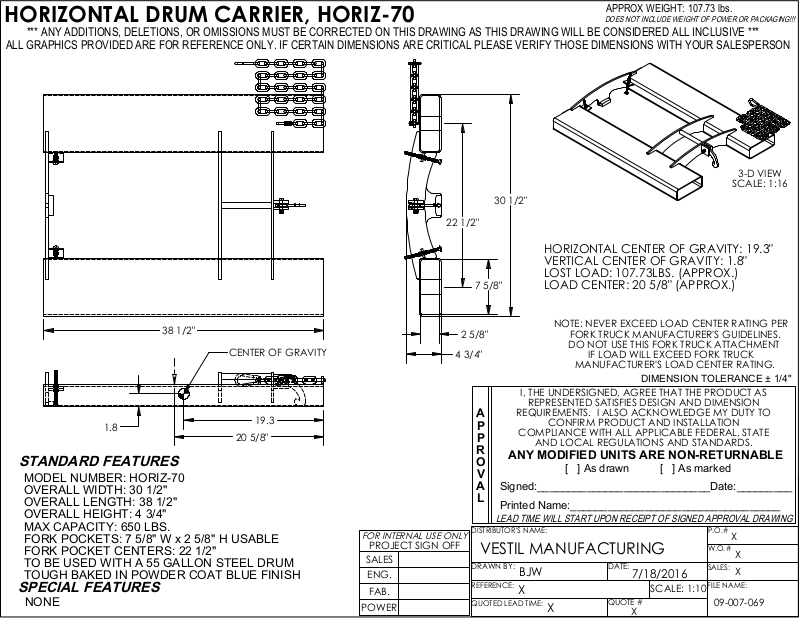

HORIZONTAL DRUM CARRIER, HORIZ-70
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
3-D VIEW
SCALE: 1:16
30 1/2"
22 1/2"
HORIZONTAL CENTER OF GRAVITY: 19.3"
VERTICAL CENTER OF GRAVITY: 1.8"
LOST LOAD: 107.73LBS. (APPROX.)
7 5/8"
LOAD CENTER: 20 5/8" (APPROX.)
38 1/2"
CENTER OF GRAVITY
1.8
19.3
20 5/8"
STANDARD FEATURES
MODEL NUMBER: HORIZ-70
OVERALL WIDTH: 30 1/2"
OVERALL LENGTH: 38 1/2"
OVERALL HEIGHT: 4 3/4"
MAX CAPACITY: 650 LBS.
FORK POCKETS: 7 5/8" W x 2 5/8" H USABLE
FORK POCKET CENTERS: 22 1/2"
TO BE USED WITH A 55 GALLON STEEL DRUM
TOUGH BAKED IN POWDER COAT BLUE FINISH
SPECIAL FEATURES
NONE
2 5/8"
4 3/4"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
NOTE: NEVER EXCEED LOAD CENTER RATING PER
FORK TRUCK MANUFACTURER'S GUIDELINES.
DO NOT USE THIS FORK TRUCK ATTACHMENT
IF LOAD WILL EXCEED FORK TRUCK
MANUFACTURER'S LOAD CENTER RATING.
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
BJW
X
DATE:
7/18/2016
SCALE: 1:10
:
X
QUOTE #
X
SALES:
X
FILE NAME:
09-007-069
