APPROX WEIGHT: 485.46 lbs.

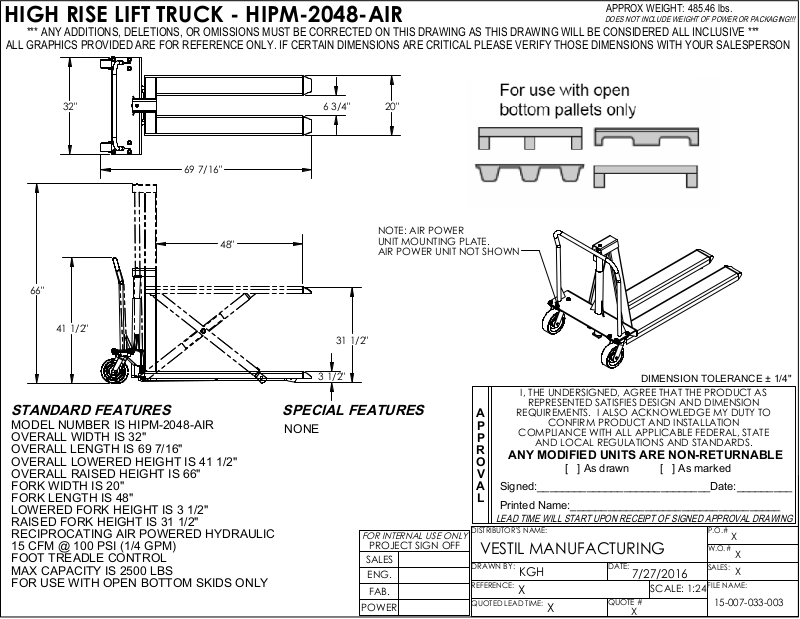

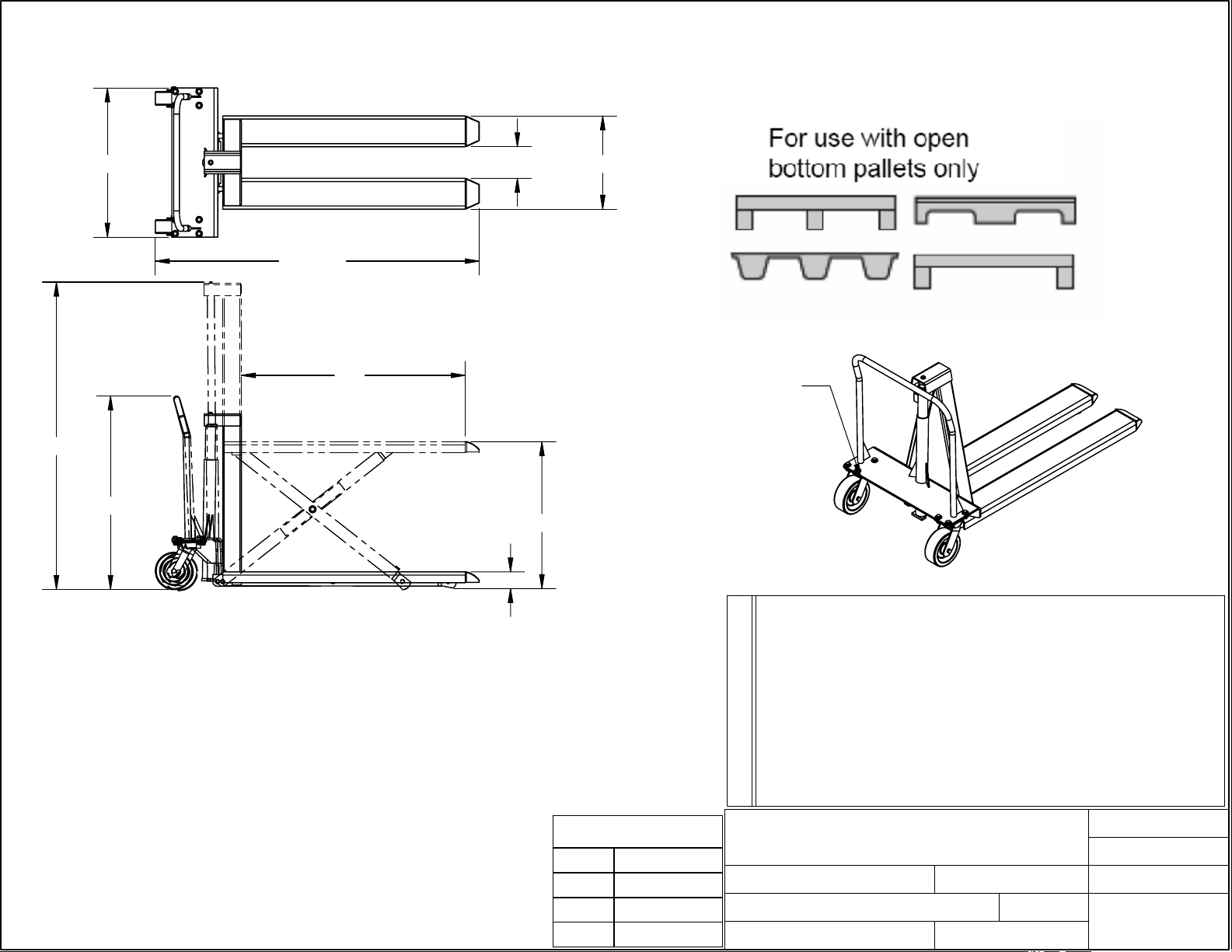

HIGH RISE LIFT TRUCK - HIPM-2048-AIR
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
32"
69 7/16"
48"
66"
41 1/2"
STANDARD FEATURES
MODEL NUMBER IS HIPM-2048-AIR
OVERALL WIDTH IS 32"
OVERALL LENGTH IS 69 7/16"
OVERALL LOWERED HEIGHT IS 41 1/2"
OVERALL RAISED HEIGHT IS 66"
FORK WIDTH IS 20"
FORK LENGTH IS 48"
LOWERED FORK HEIGHT IS 3 1/2"
RAISED FORK HEIGHT IS 31 1/2"
RECIPROCATING AIR POWERED HYDRAULIC
15 CFM @ 100 PSI (1/4 GPM)
FOOT TREADLE CONTROL
MAX CAPACITY IS 2500 LBS
FOR USE WITH OPEN BOTTOM SKIDS ONLY
6 3/4"
31 1/2"
3 1/2"
20"
NOTE: AIR POWER
UNIT MOUNTING PLATE.
AIR POWER UNIT NOT SHOWN
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
