APPROX WEIGHT: 95.83 lbs.

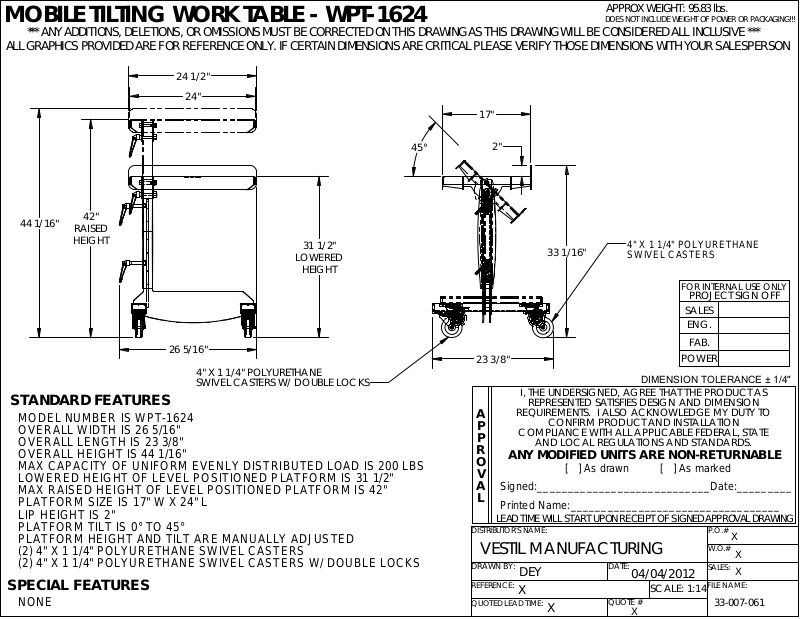

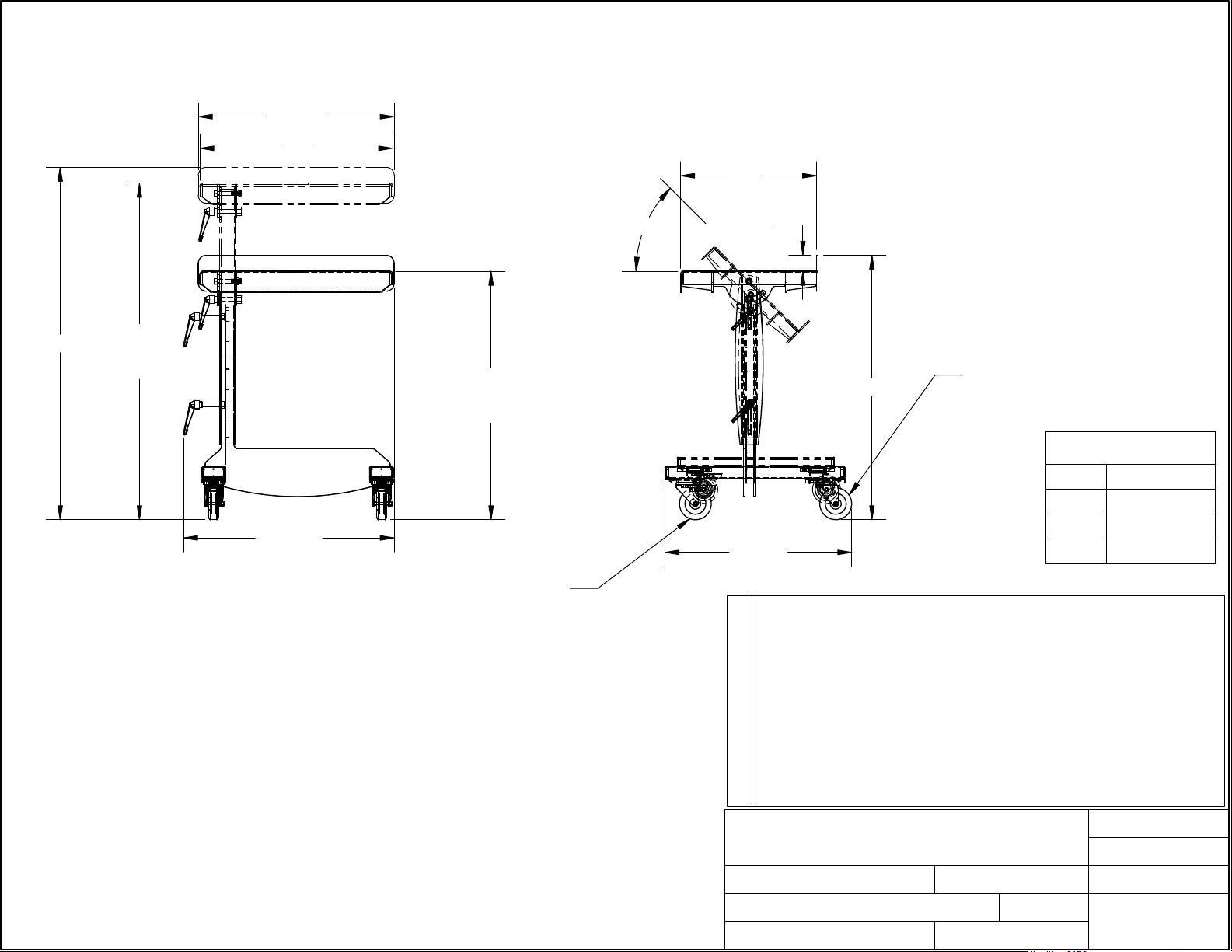

MOBILE TILTING WORK TABLE - WPT-1624
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
24 1/2"
24"
17"
44 1/16"
42"
RAISED
HEIGHT
31 1/2"
LOWERED
HEIGHT
26 5/16"
4" X 1 1/4" POLYURETHANE
SWIVEL CASTERS W/ DOUBLE LOCKS
STANDARD FEATURES
MODEL NUMBER IS WPT-1624
OVERALL WIDTH IS 26 5/16"
OVERALL LENGTH IS 23 3/8"
OVERALL HEIGHT IS 44 1/16"
MAX CAPACITY OF UNIFORM EVENLY DISTRIBUTED LOAD IS 200 LBS
LOWERED HEIGHT OF LEVEL POSITIONED PLATFORM IS 31 1/2"
MAX RAISED HEIGHT OF LEVEL POSITIONED PLATFORM IS 42"
PLATFORM SIZE IS 17" W X 24" L
LIP HEIGHT IS 2"
PLATFORM TILT IS 0° TO 45°
PLATFORM HEIGHT AND TILT ARE MANUALLY ADJUSTED
(2) 4" X 1 1/4" POLYURETHANE SWIVEL CASTERS
(2) 4" X 1 1/4" POLYURETHANE SWIVEL CASTERS W/ DOUBLE LOCKS
SPECIAL FEATURES
NONE
45°
2"
33 1/16"
23 3/8"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
DEY
X
X
4" X 1 1/4" POLYURETHANE
SWIVEL CASTERS
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
P.O.#
W.O.#
DATE:
SALES:
04/04/2012
SCALE: 1:14
QUOTE #
X
FILE NAME:
33-007-061
X
X
X
