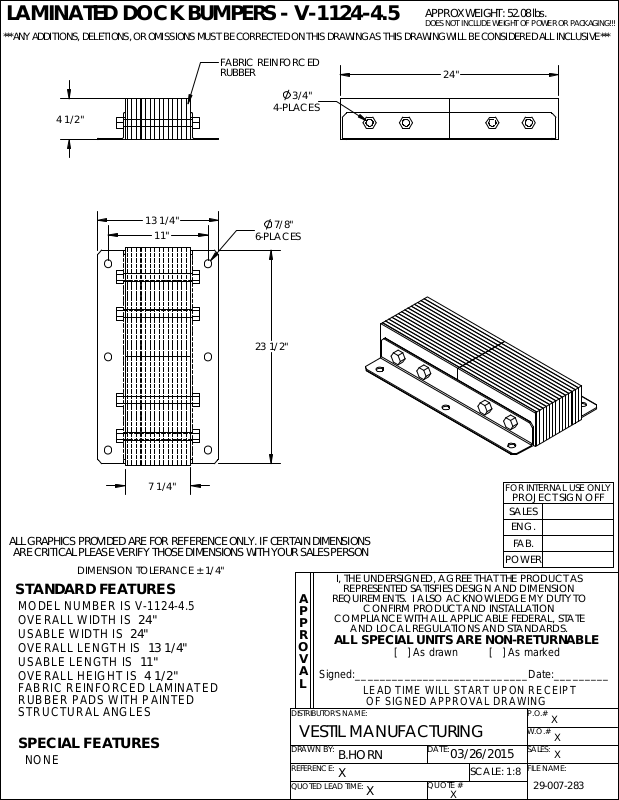

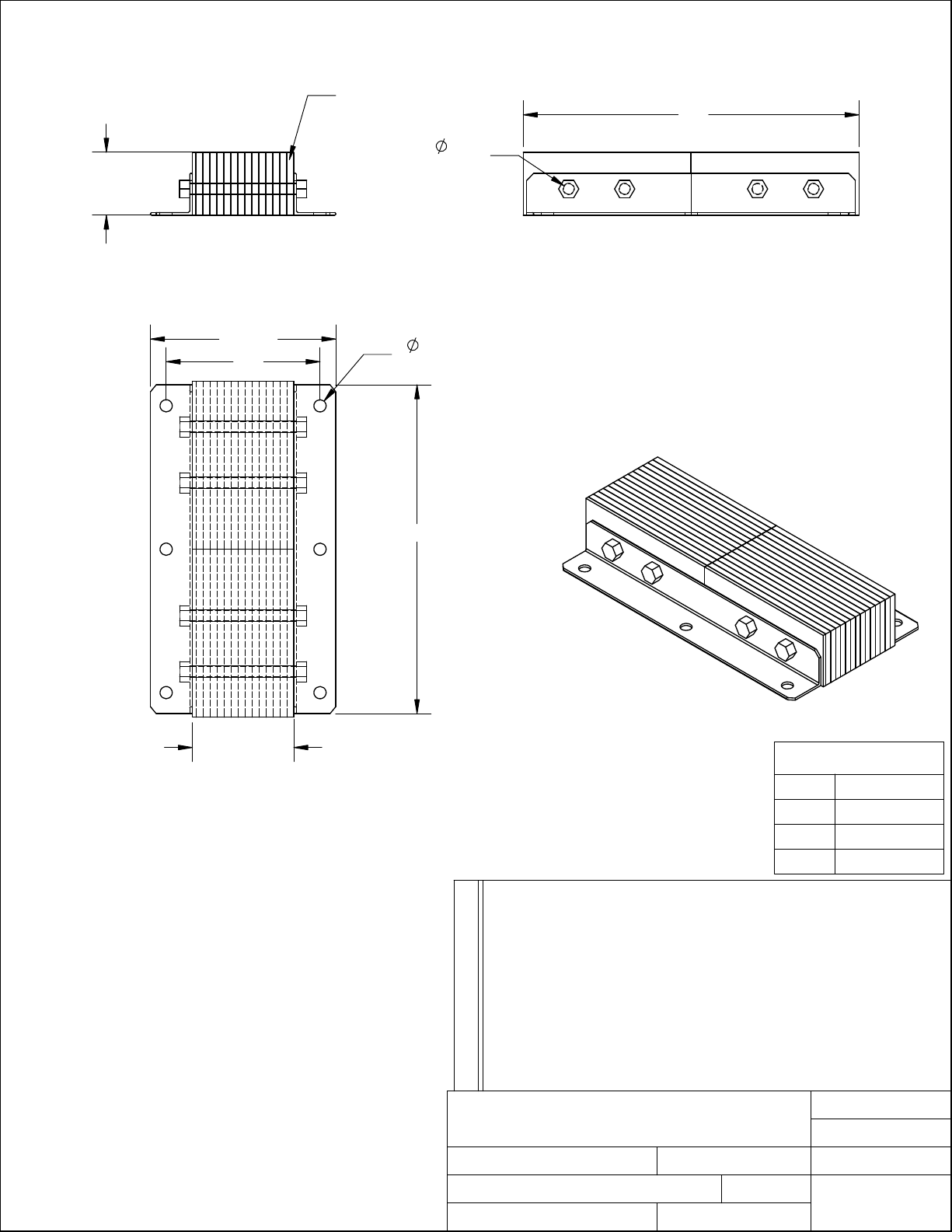

LAMINATED DOCK BUMPERS - V-1124-4.5
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
FABRIC REINFORCED
RUBBER
3/4"
4-PLACES
4 1/2"
APPROX WEIGHT: 52.08 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
24"
13 1/4"
11"
7 1/4"
7/8"
6-PLACES
23 1/2"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE ± 1/4"
STANDARD FEATURES
MODEL NUMBER IS V-1124-4.5
OVERALL WIDTH IS 24"
USABLE WIDTH IS
OVERALL LENGTH IS 13 1/4"
USABLE LENGTH IS 11"
OVERALL HEIGHT IS
FABRIC REINFORCED LAMINATED
RUBBER PADS WITH PAINTED
STRUCTURAL ANGLES
24"
4 1/2"
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
SPECIAL FEATURES
NONE
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
B.HORN
X
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
[ ] As drawn [ ] As marked
P.O.#
W.O.#
DATE:
03/26/2015
SCALE: 1:8
X
QUOTE #
X
SALES:
FILE NAME:
29-007-283
X
X
X
