APPROX WEIGHT: 18 lbs.

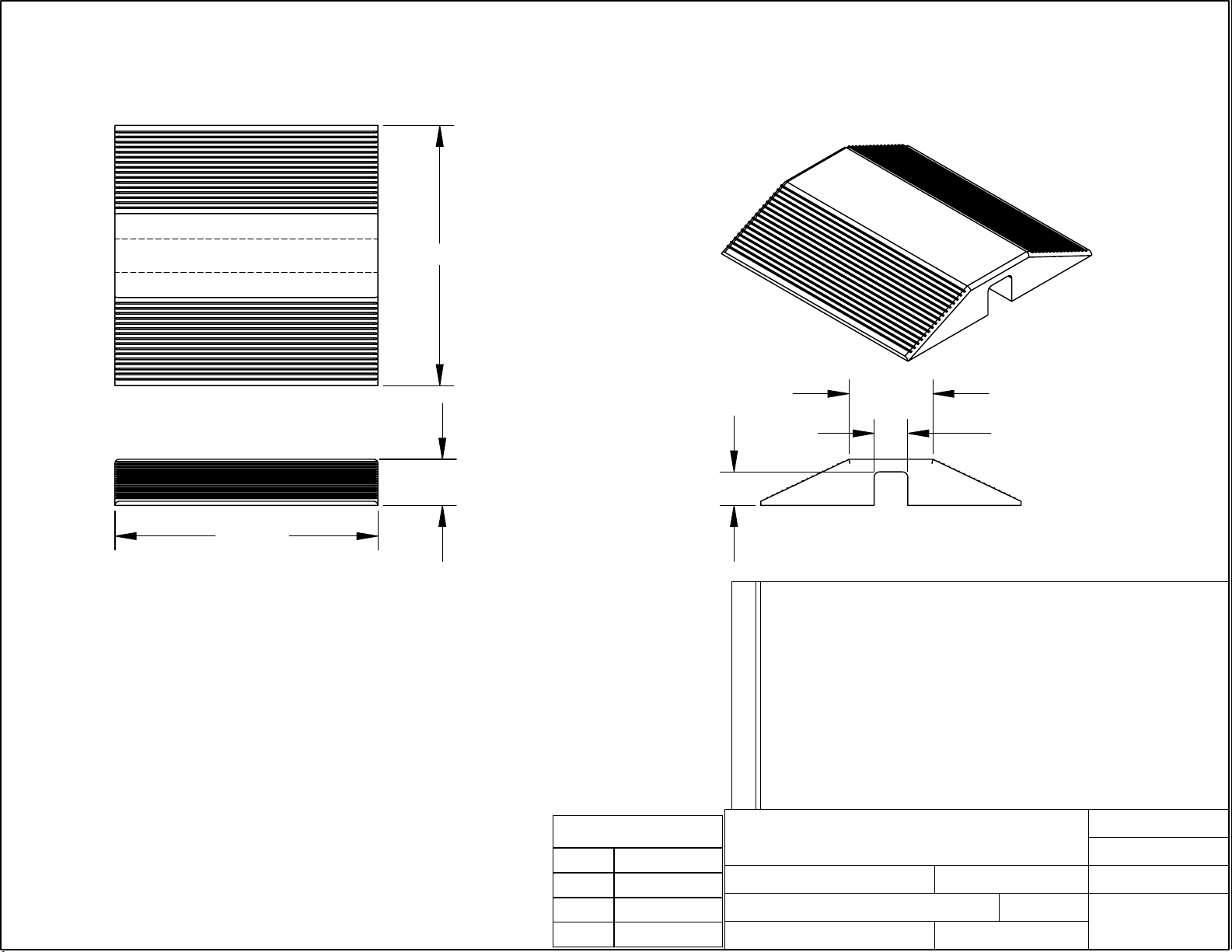

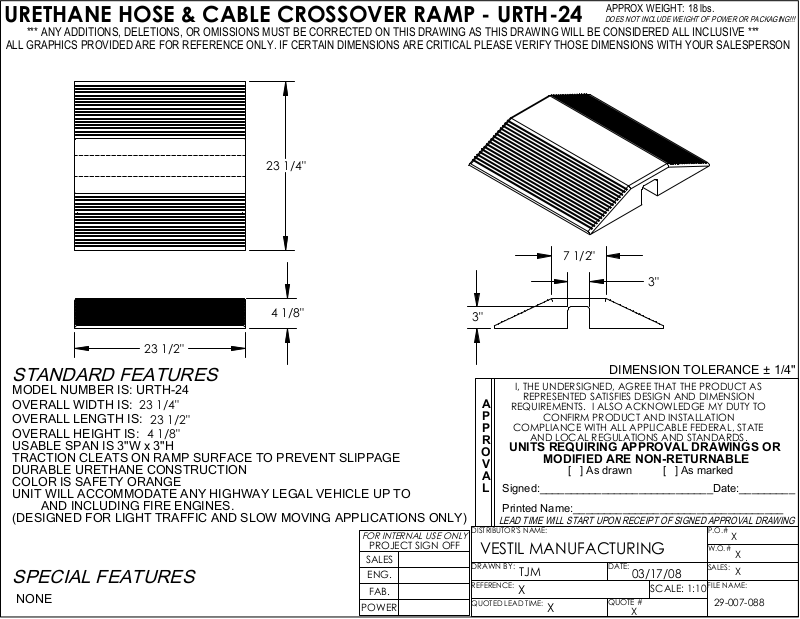

URETHANE HOSE & CABLE CROSSOVER RAMP - URTH-24
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
23 1/4"
7 1/2"
3"
4 1/8"
23 1/2"
STANDARD FEATURES
MODEL NUMBER IS: URTH-24
OVERALL WIDTH IS:
OVERALL LENGTH IS:
OVERALL HEIGHT IS:
USABLE SPAN IS 3"W x 3"H
TRACTION CLEATS ON RAMP SURFACE TO PREVENT SLIPPAGE
DURABLE URETHANE CONSTRUCTION
COLOR IS SAFETY ORANGE
UNIT WILL ACCOMMODATE ANY HIGHWAY LEGAL VEHICLE UP TO
AND INCLUDING FIRE ENGINES.
(DESIGNED FOR LIGHT TRAFFIC AND SLOW MOVING APPLICATIONS ONLY)
SPECIAL FEATURES
NONE
23 1/4"
23 1/2"
4 1/8"
