APPROX WEIGHT: 84.98 lbs.

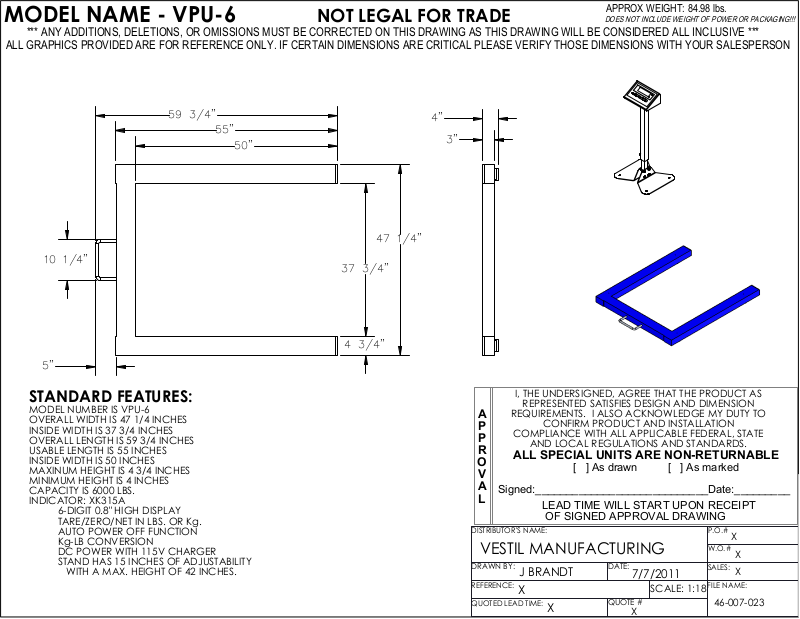

MODEL NAME - VPU-6
NOT LEGAL FOR TRADE
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON

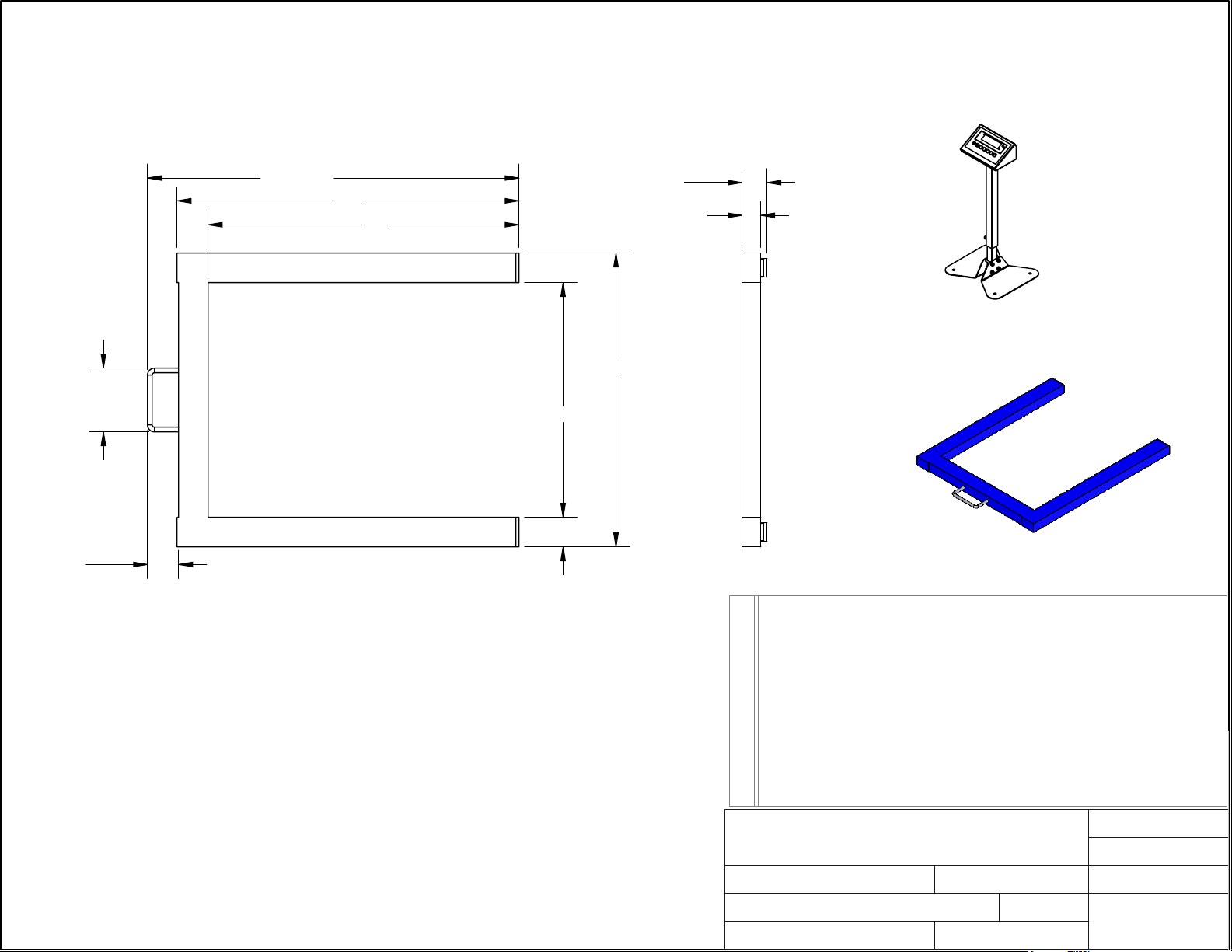

59 3/4"
10 1/4"
5"
STANDARD FEATURES:
MODEL NUMBER IS VPU-6
OVERALL WIDTH IS 47 1/4 INCHES
INSIDE WIDTH IS 37 3/4 INCHES
OVERALL LENGTH IS 59 3/4 INCHES
USABLE LENGTH IS 55 INCHES
INSIDE WIDTH IS 50 INCHES
MAXINUM HEIGHT IS 4 3/4 INCHES
MINIMUM HEIGHT IS 4 INCHES
CAPACITY IS 6000 LBS.
INDICATOR: XK315A
6-DIGIT 0.8" HIGH DISPLAY
TARE/ZERO/NET IN LBS. OR Kg.
AUTO POWER OFF FUNCTION
Kg-LB CONVERSION
DC POWER WITH 115V CHARGER
STAND HAS 15 INCHES OF ADJUSTABILITY
WITH A MAX. HEIGHT OF 42 INCHES.
55"
50"
47 1/4"
37 3/4"
4 3/4"
4"
3"
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
I, THE
UNDERSIGNED,
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
AGREE THAT
THE PRODUCT AS
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
J BRANDT
X
:
X
DATE:
7/7/2011
SCALE: 1:18
QUOTE #
X
SALES:
X
FILE NAME:
46-007-023
