APPROX WEIGHT: 8.33 lbs.

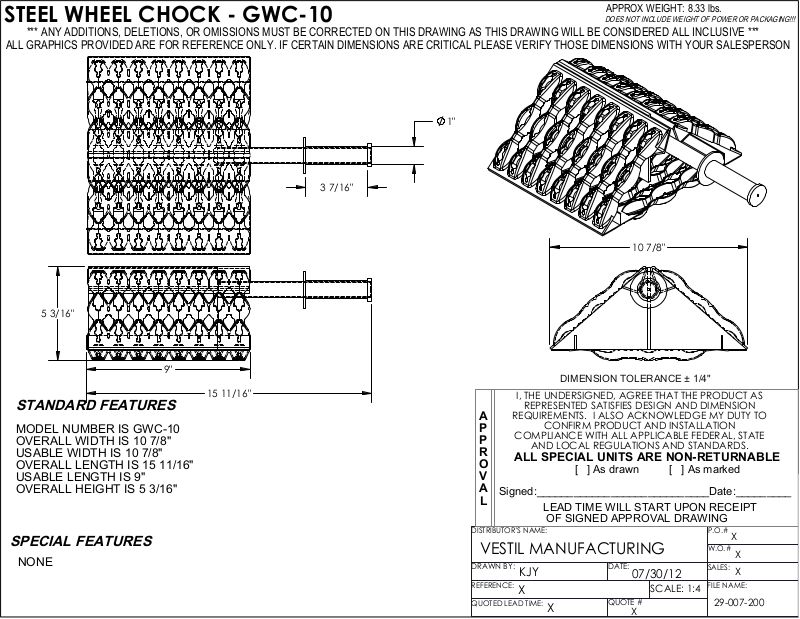

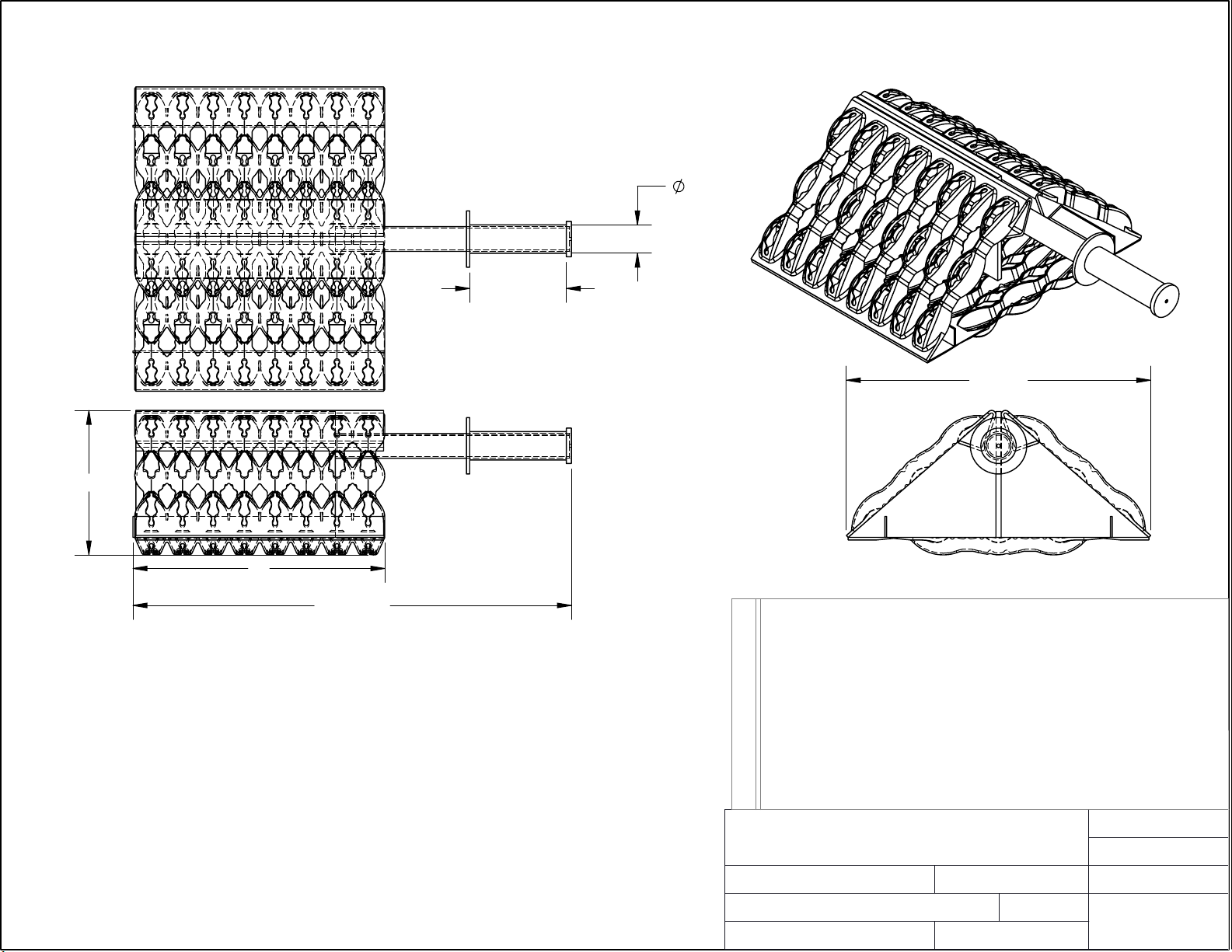

STEEL WHEEL CHOCK - GWC-10
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
1"
3 7/16"
10 7/8"
5 3/16"
9"
STANDARD FEATURES
MODEL NUMBER IS GWC-10
OVERALL WIDTH IS 10 7/8"
USABLE WIDTH IS 10 7/8"
OVERALL LENGTH IS 15 11/16"
USABLE LENGTH IS 9"
OVERALL HEIGHT IS 5 3/16"
SPECIAL FEATURES
NONE
15 11/16"
DIMENSION TOLERANCE ± 1/4"
