Page 1

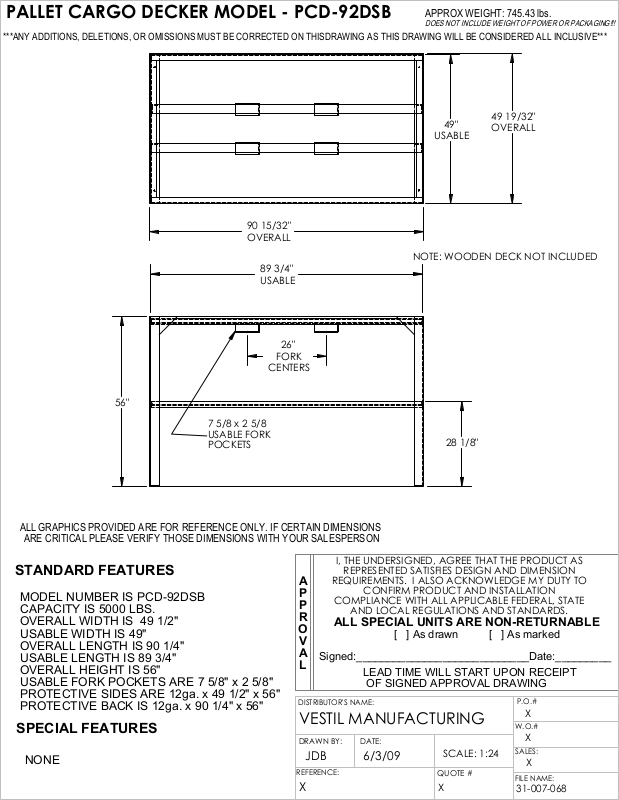

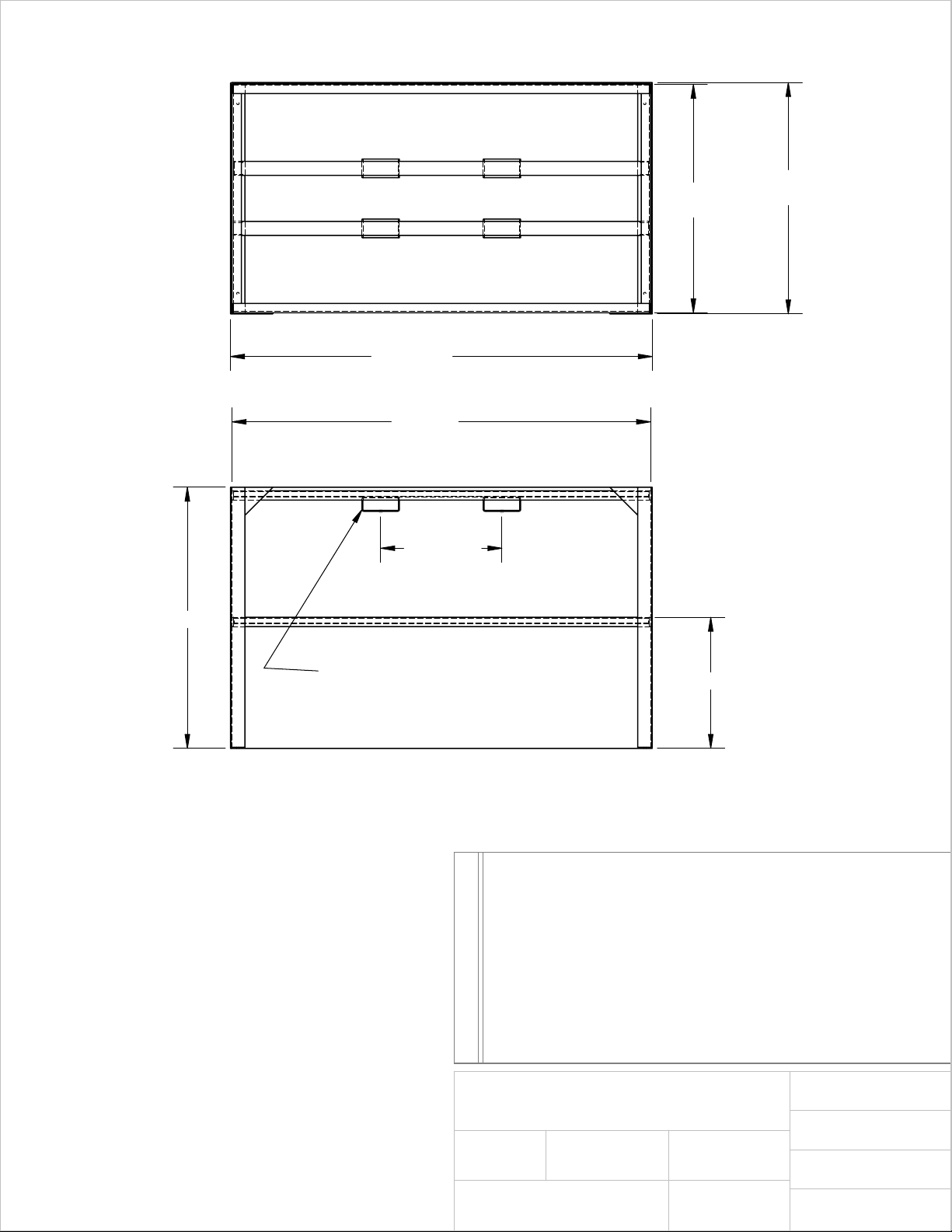

PALLET CARGO DECKER MODEL - PCD-92DSB
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THISDRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
APPROX WEIGHT: 745.43 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
56"
90 15/32"
OVERALL
89 3/4"
USABLE
26"
FORK
CENTERS
49"
USABLE
NOTE: WOODEN DECK NOT INCLUDED
49 19/32"
OVERALL
7 5/8 x 2 5/8
USABLE FORK
POCKETS
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
I, THE
UNDERSIGNED,
STANDARD FEATURES
MODEL NUMBER IS PCD-92DSB
CAPACITY IS 5000 LBS.
OVERALL WIDTH IS 49 1/2"
USABLE WIDTH IS 49"
OVERALL LENGTH IS 90 1/4"
USABLE LENGTH IS 89 3/4"
OVERALL HEIGHT IS 56"
USABLE FORK POCKETS ARE 7 5/8" x 2 5/8"
PROTECTIVE SIDES ARE 12ga. x 49 1/2" x 56"
PROTECTIVE BACK IS 12ga. x 90 1/4" x 56"
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
SPECIAL FEATURES
NONE
DRAWN BY:
JDB
REFERENCE:
X
DATE:
6/3/09
28 1/8"
AGREE THAT
[ ] As drawn [ ] As marked
SCALE: 1:24
QUOTE #
X
THE PRODUCT AS
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
31-007-068
