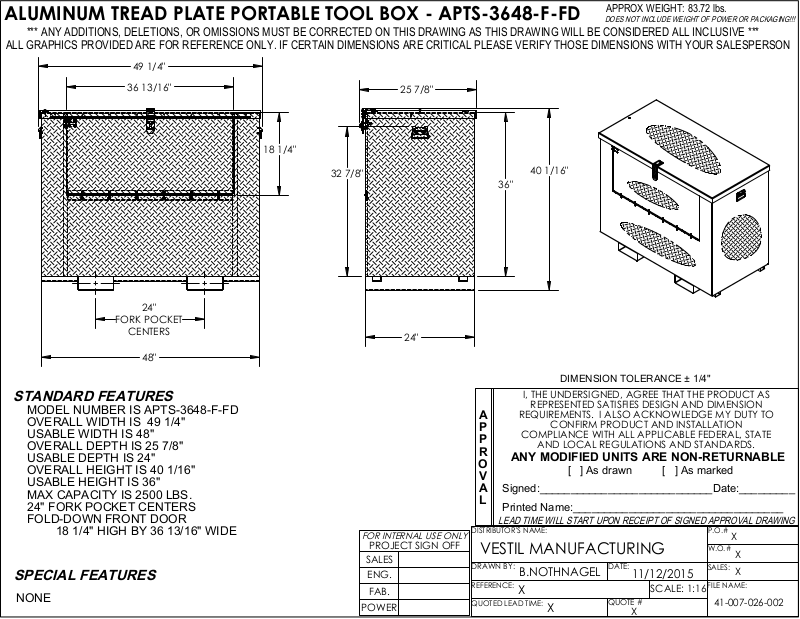

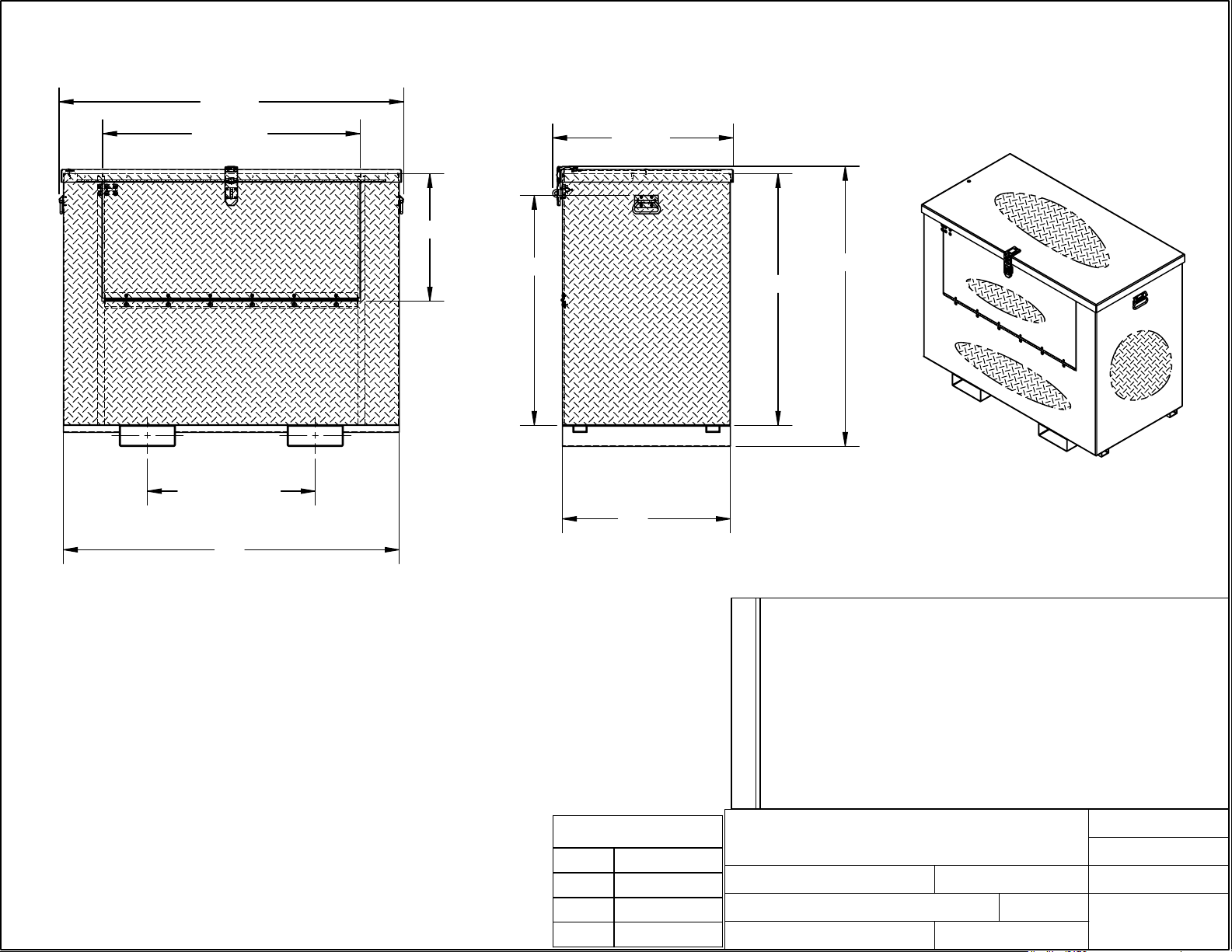

ALUMINUM TREAD PLATE PORTABLE TOOL BOX - APTS-3648-F-FD
APPROX WEIGHT: 83.72 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
49 1/4"
36 13/16"
24"
FORK POCKET
CENTERS
48"
STANDARD FEATURES
MODEL NUMBER IS APTS-3648-F-FD
OVERALL WIDTH IS 49 1/4"
USABLE WIDTH IS 48"
OVERALL DEPTH IS 25 7/8"
USABLE DEPTH IS 24"
OVERALL HEIGHT IS 40 1/16"
USABLE HEIGHT IS 36"
MAX CAPACITY IS 2500 LBS.
24" FORK POCKET CENTERS
FOLD-DOWN FRONT DOOR
18 1/4" HIGH BY 36 13/16" WIDE
SPECIAL FEATURES
NONE
18 1/4"
32 7/8"
25 7/8"
24"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
40 1/16"
36"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
B.NOTHNAGEL
X
:
X
DATE:
11/12/2015
SCALE: 1:16
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
41-007-026-002
