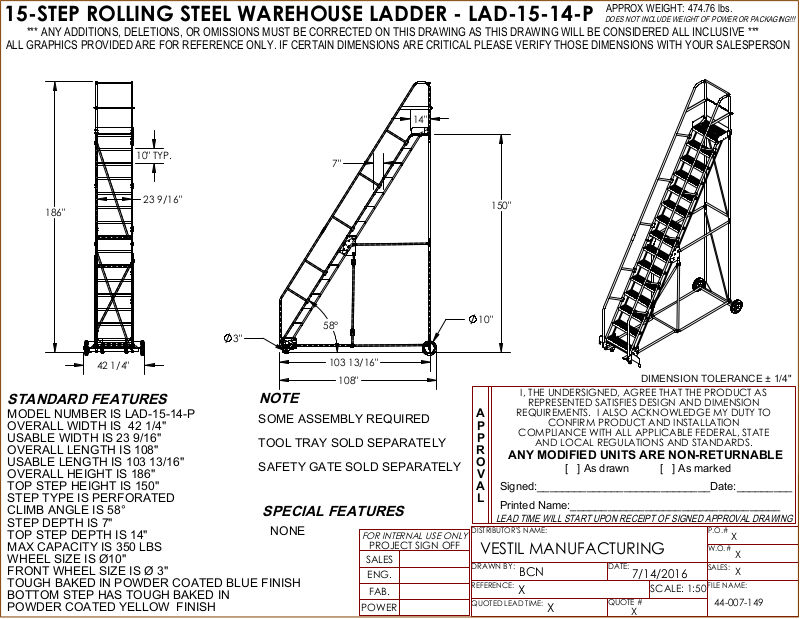

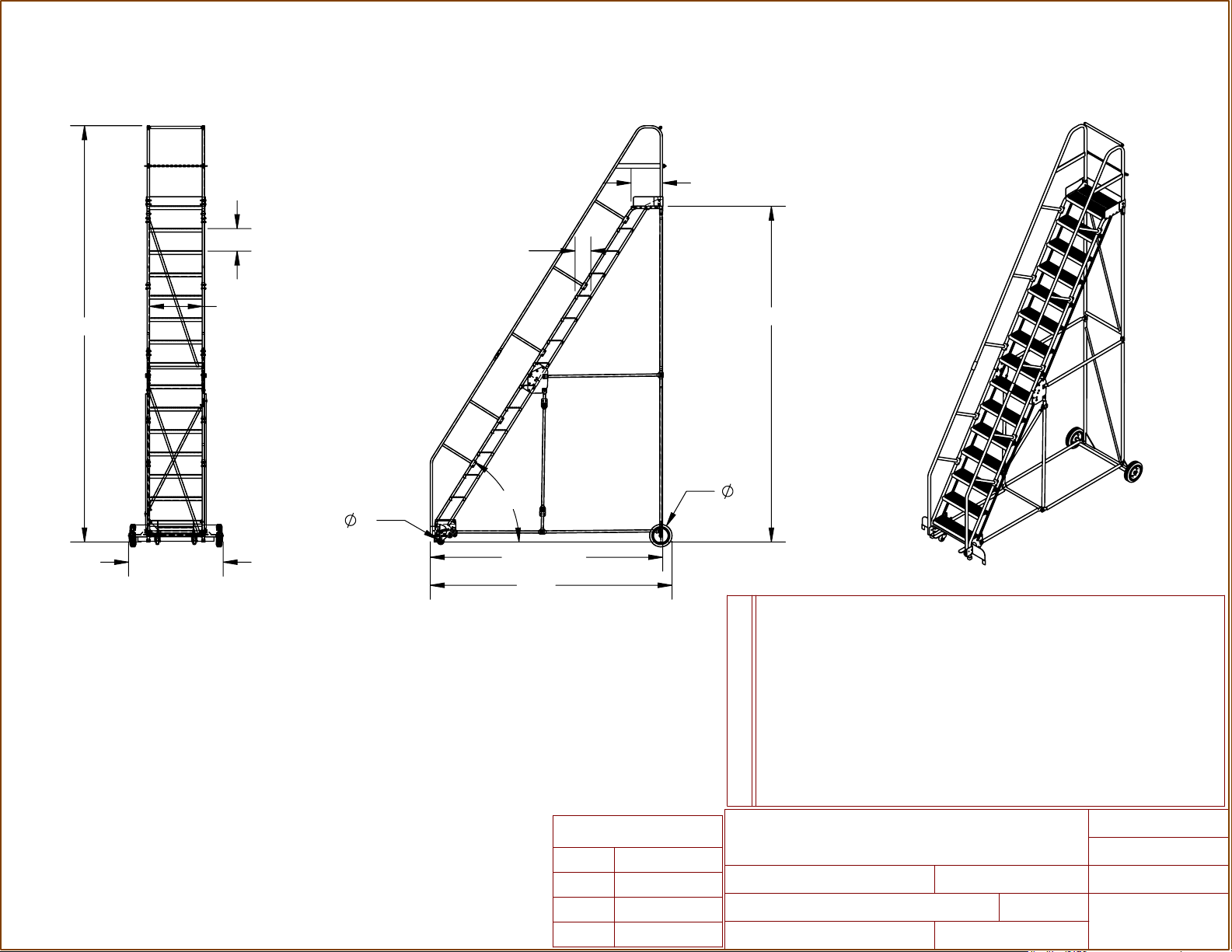

15-STEP ROLLING STEEL WAREHOUSE LADDER - LAD-15-14-P
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
14"
APPROX WEIGHT: 474.76 lbs.
10" TYP.
23 9/16"
186"
3"
42 1/4"
STANDARD FEATURES
MODEL NUMBER IS LAD-15-14-P
OVERALL WIDTH IS 42 1/4"
USABLE WIDTH IS 23 9/16"
OVERALL LENGTH IS 108"
USABLE LENGTH IS 103 13/16"
OVERALL HEIGHT IS 186"
NOTE
SOME ASSEMBLY REQUIRED
TOOL TRAY SOLD SEPARATELY
SAFETY GATE SOLD SEPARATELY
TOP STEP HEIGHT IS 150"
STEP TYPE IS PERFORATED
CLIMB ANGLE IS 58°
SPECIAL FEATURES
STEP DEPTH IS 7"
TOP STEP DEPTH IS 14"
NONE
MAX CAPACITY IS 350 LBS
WHEEL SIZE IS Ø10"
FRONT WHEEL SIZE IS Ø 3"
TOUGH BAKED IN POWDER COATED BLUE FINISH
BOTTOM STEP HAS TOUGH BAKED IN
POWDER COATED YELLOW FINISH
7"
58°
103 13/16"
108"
FOR INTERNAL USE ONLY
POWER
PROJECT SIGN OFF
SALES
ENG.
FAB.
150"
10"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
BCN
X
:
X
DATE:
QUOTE #
DIMENSION TOLERANCE ± 1/4"
P.O.#
X
W.O.#
X
SALES:
7/14/2016
SCALE: 1:50
X
X
FILE NAME:
44-007-149
