APPROX WEIGHT: 1.80 lbs.

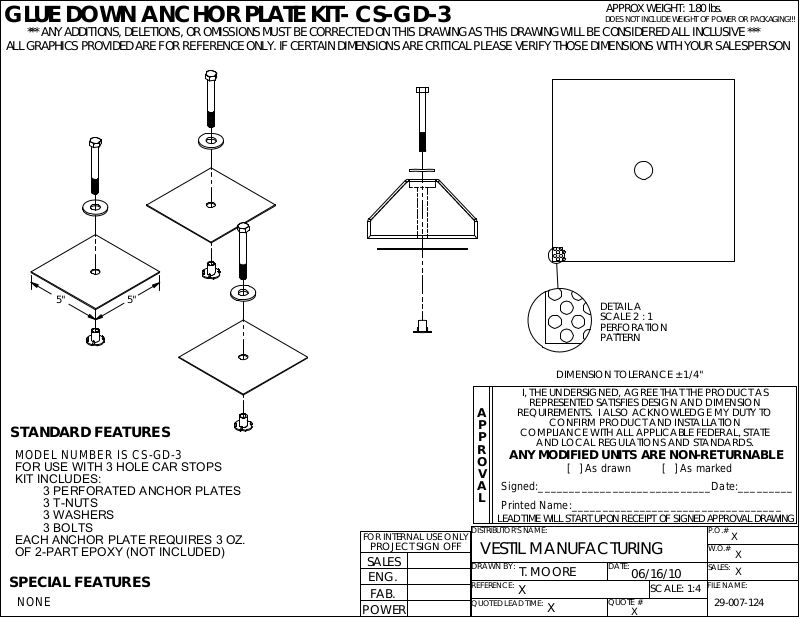

GLUE DOWN ANCHOR PLATE KIT- CS-GD-3
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
5" 5"
STANDARD FEATURES
MODEL NUMBER IS CS-GD-3
FOR USE WITH 3 HOLE CAR STOPS
KIT INCLUDES:
3 PERFORATED ANCHOR PLATES
3 T-NUTS
3 WASHERS
3 BOLTS
EACH ANCHOR PLATE REQUIRES 3 OZ.
OF 2-PART EPOXY (NOT INCLUDED)
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DETAIL A
SCALE 2 : 1
PERFORATION
PATTERN
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
T. MOORE
X
X
DATE:
06/16/10
SCALE: 1:4
QUOTE #
X
SALES:
FILE NAME:
29-007-124
X
X
