APPROX WEIGHT: 226.35 lbs.

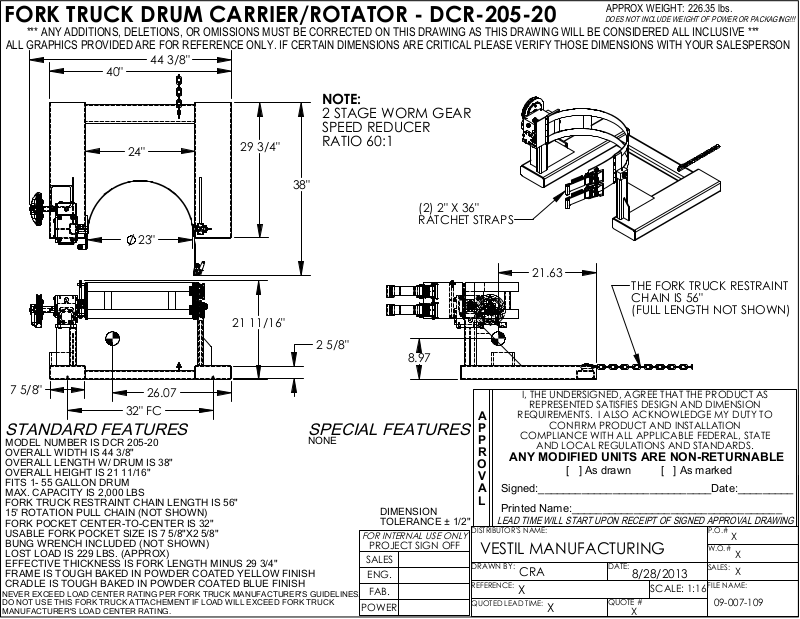

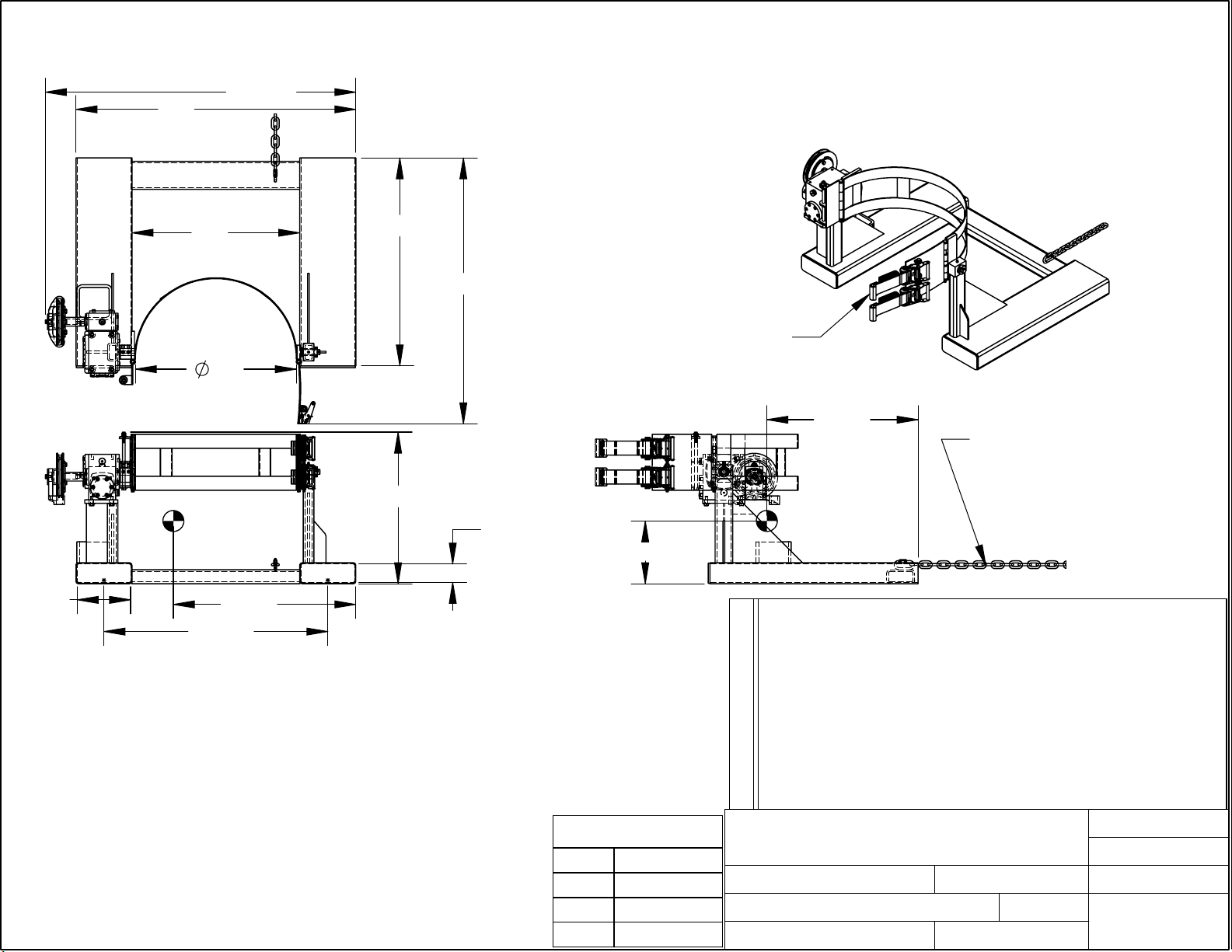

FORK TRUCK DRUM CARRIER/ROTATOR - DCR-205-20
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
44 3/8"
40"
NOTE:
2 STAGE WORM GEAR
SPEED REDUCER
24"
29 3/4"
38"
23"
21 11/16"
RATIO 60:1
(2) 2" X 36"
RATCHET STRAPS
21.63
THE FORK TRUCK RESTRAINT
CHAIN IS 56"
(FULL LENGTH NOT SHOWN)
2 5/8"
7 5/8"
26.07
32" FC
STANDARD FEATURES
MODEL NUMBER IS DCR 205-20
OVERALL WIDTH IS 44 3/8"
OVERALL LENGTH W/ DRUM IS 38"
OVERALL HEIGHT IS 21 11/16"
FITS 1- 55 GALLON DRUM
MAX. CAPACITY IS 2,000 LBS
FORK TRUCK RESTRAINT CHAIN LENGTH IS 56"
15' ROTATION PULL CHAIN (NOT SHOWN)
FORK POCKET CENTER-TO-CENTER IS 32"
USABLE FORK POCKET SIZE IS 7 5/8"X2 5/8"
BUNG WRENCH INCLUDED (NOT SHOWN)
LOST LOAD IS 229 LBS. (APPROX)
EFFECTIVE THICKNESS IS FORK LENGTH MINUS 29 3/4"
FRAME IS TOUGH BAKED IN POWDER COATED YELLOW FINISH
CRADLE IS TOUGH BAKED IN POWDER COATED BLUE FINISH
NEVER EXCEED LOAD CENTER RATING PER FORK TRUCK MANUFACTURER'S GUIDELINES.
DO NOT USE THIS FORK TRUCK ATTACHEMENT IF LOAD WILL EXCEED FORK TRUCK
MANUFACTURER'S LOAD CENTER RATING.
SPECIAL FEATURES
NONE
8.97
DIMENSION
TOLERANCE ± 1/2"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
CRA
X
:
X
DATE:
8/28/2013
SCALE: 1:16
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
09-007-109
