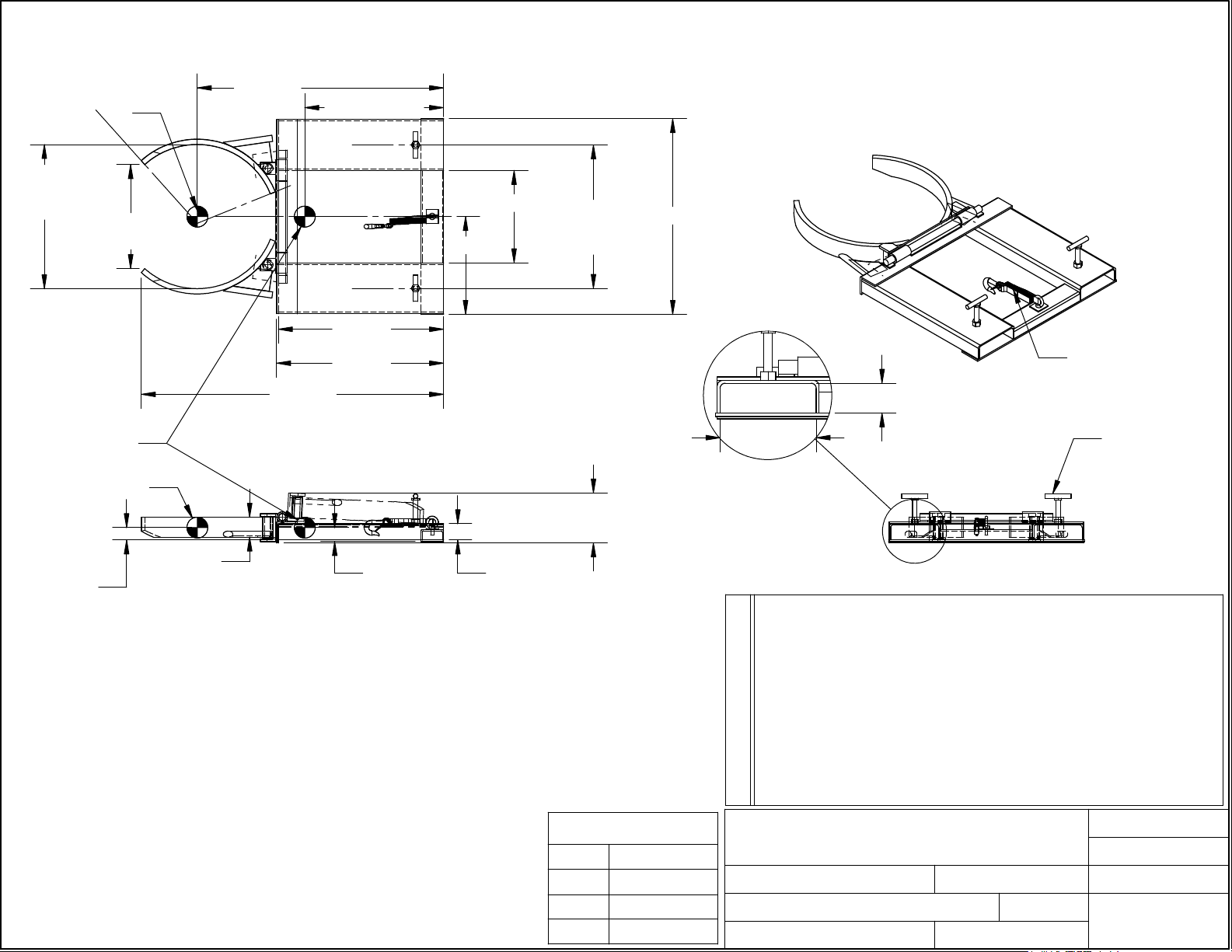

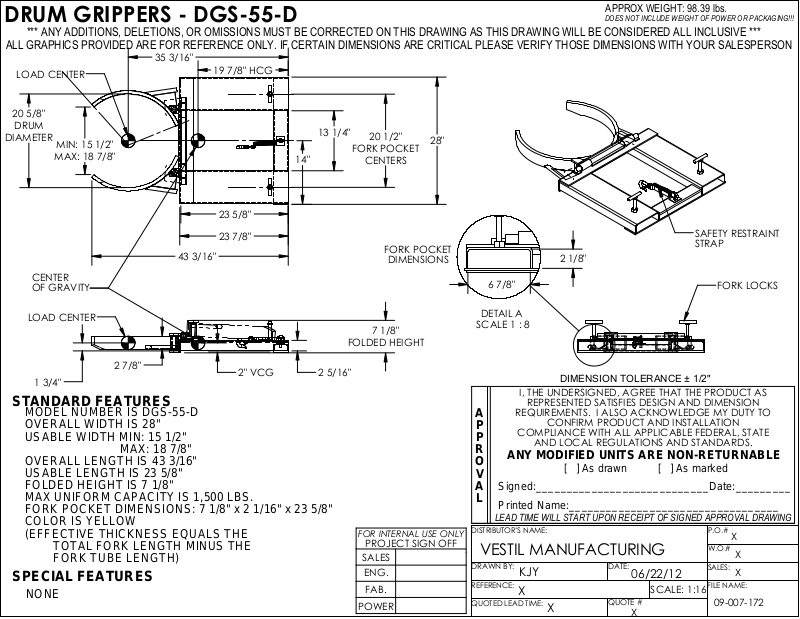

DRUM GRIPPERS - DGS-55-D
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
35 3/16"
LOAD CENTER
20 5/8"
DRUM
DIAMETER
MAX: 18 7/8"
MIN: 15 1/2"
19 7/8" HCG
23 5/8"
14"
13 1/4"
20 1/2"
FORK POCKET
CENTERS
28"
23 7/8"
43 3/16"
CENTER
OF GRAVITY
LOAD CENTER
2 7/8"
1 3/4"
2" VCG
STANDARD FEATURES
MODEL NUMBER IS DGS-55-D
OVERALL WIDTH IS 28"
USABLE WIDTH MIN: 15 1/2"
MAX: 18 7/8"
OVERALL LENGTH IS 43 3/16"
USABLE LENGTH IS 23 5/8"
FOLDED HEIGHT IS 7 1/8"
MAX UNIFORM CAPACITY IS 1,500 LBS.
FORK POCKET DIMENSIONS: 7 1/8" x 2 1/16" x 23 5/8"
COLOR IS YELLOW
(EFFECTIVE THICKNESS EQUALS THE
TOTAL FORK LENGTH MINUS THE
FORK TUBE LENGTH)
SPECIAL FEATURES
NONE
2 5/16"
FORK POCKET
DIMENSIONS
7 1/8"
FOLDED HEIGHT
