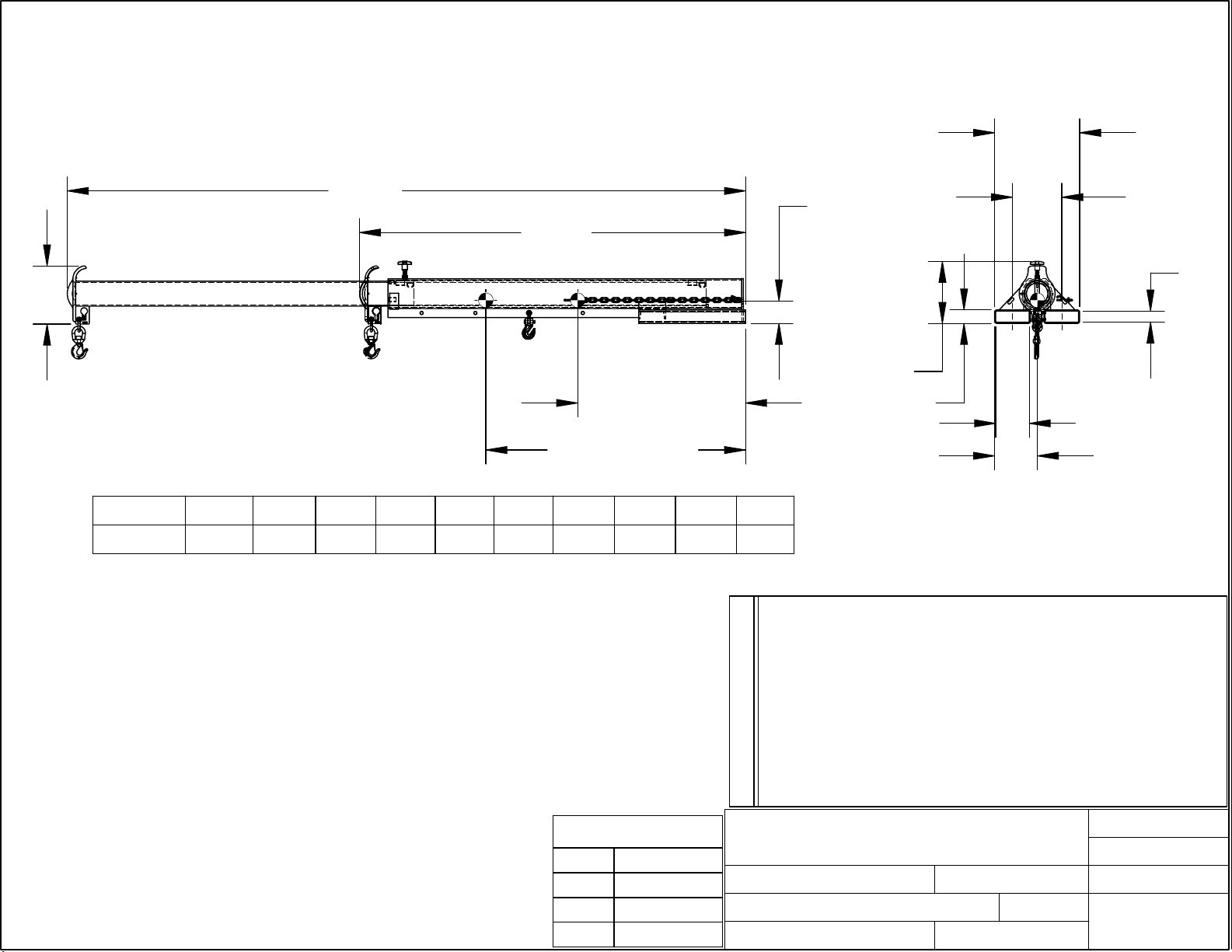

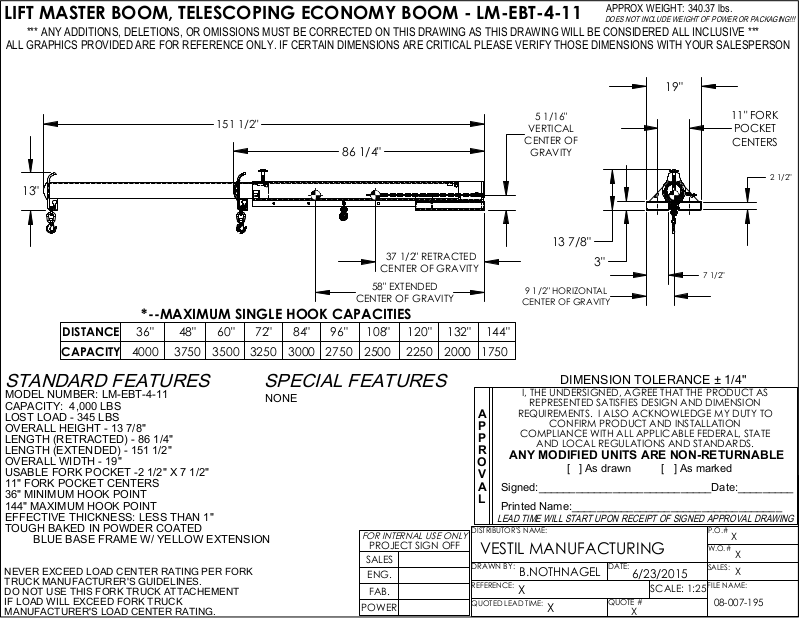

LIFT MASTER BOOM, TELESCOPING ECONOMY BOOM - LM-EBT-4-11
APPROX WEIGHT: 340.37 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
19"
151 1/2"
13"
*--MAXIMUM SINGLE HOOK CAPACITIES
DISTANCE
CAPACITY
36" 48" 60" 72" 84" 96"
4000 3750 3500 3250 3000 2750 2500 2250 2000 1750
STANDARD FEATURES
MODEL NUMBER: LM-EBT-4-11
CAPACITY: 4,000 LBS
LOST LOAD - 345 LBS
OVERALL HEIGHT - 13 7/8"
LENGTH (RETRACTED) - 86 1/4"
LENGTH (EXTENDED) - 151 1/2"
OVERALL WIDTH - 19"
USABLE FORK POCKET -2 1/2" X 7 1/2"
11" FORK POCKET CENTERS
36" MINIMUM HOOK POINT
144" MAXIMUM HOOK POINT
EFFECTIVE THICKNESS: LESS THAN 1"
TOUGH BAKED IN POWDER COATED
BLUE BASE FRAME W/ YELLOW EXTENSION
NEVER EXCEED LOAD CENTER RATING PER FORK
TRUCK MANUFACTURER'S GUIDELINES.
DO NOT USE THIS FORK TRUCK ATTACHEMENT
IF LOAD WILL EXCEED FORK TRUCK
MANUFACTURER'S LOAD CENTER RATING.
86 1/4"
37 1/2" RETRACTED
CENTER OF GRAVITY
58" EXTENDED
CENTER OF GRAVITY
108" 120" 132" 144"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
5 1/16"
VERTICAL
CENTER OF
GRAVITY
11" FORK
POCKET
CENTERS
13 7/8"
3"
7 1/2"
9 1/2" HORIZONTAL
CENTER OF GRAVITY
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
B.NOTHNAGEL
X
:
X
DATE:
6/23/2015
SCALE: 1:25
QUOTE #
X
SALES:
X
FILE NAME:
08-007-195
