APPROX WEIGHT: 22.65 lbs.

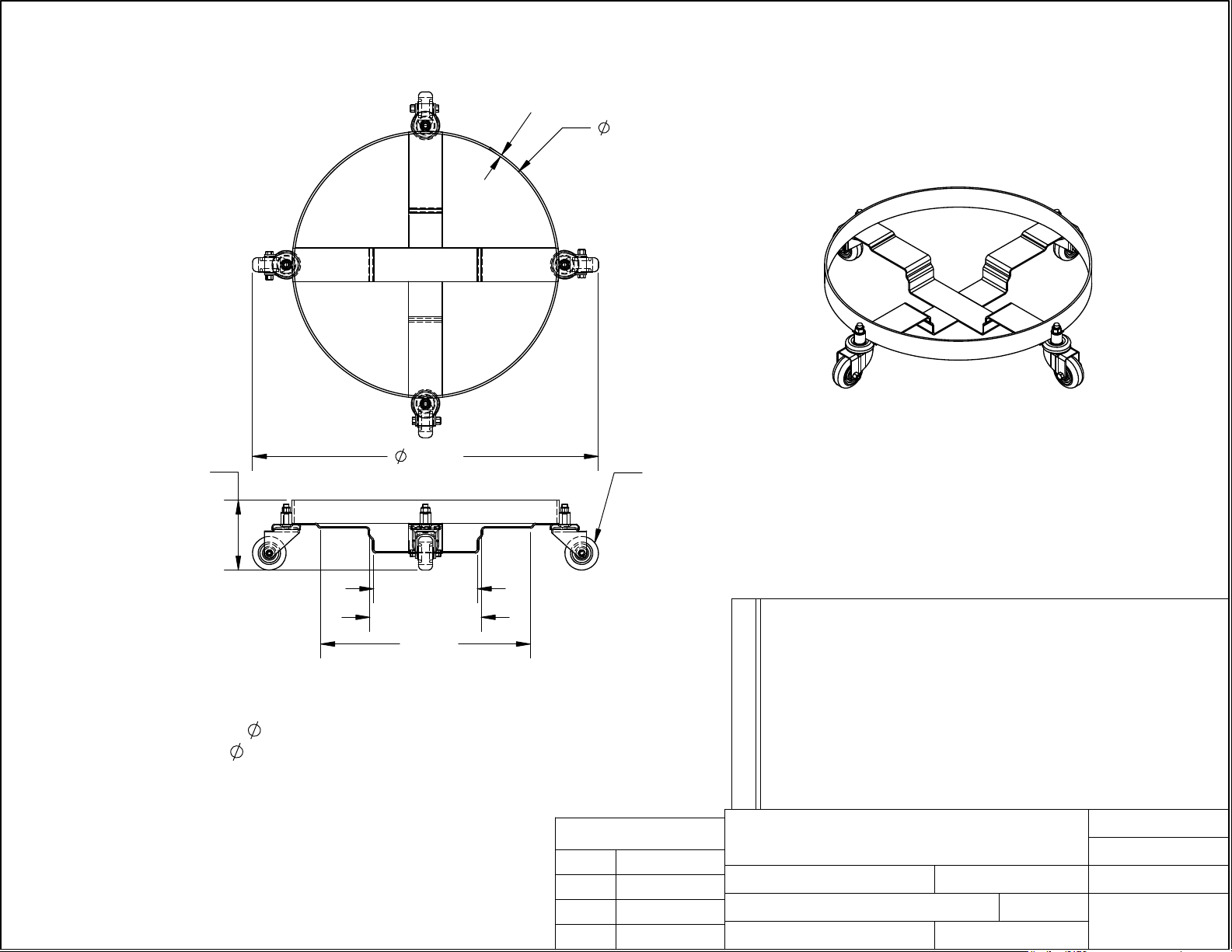

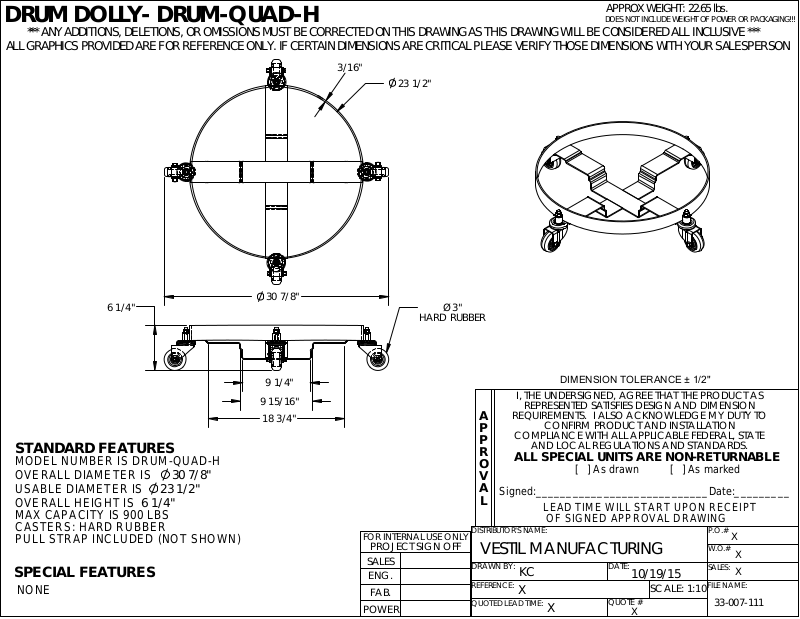

DRUM DOLLY- DRUM-QUAD-H
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
3/16"
23 1/2"
30 7/8"
6 1/4"
Ø3"
HARD RUBBER
STANDARD FEATURES
MODEL NUMBER IS DRUM-QUAD-H
OVERALL DIAMETER IS 30 7/8"
USABLE DIAMETER IS 23 1/2"
OVERALL HEIGHT IS
6 1/4"
MAX CAPACITY IS 900 LBS
CASTERS: HARD RUBBER
PULL STRAP INCLUDED (NOT SHOWN)
SPECIAL FEATURES
NONE
9 1/4"
9 15/16"
18 3/4"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/2"
