Page 1
APPROX WEIGHT: 821.17 lbs.

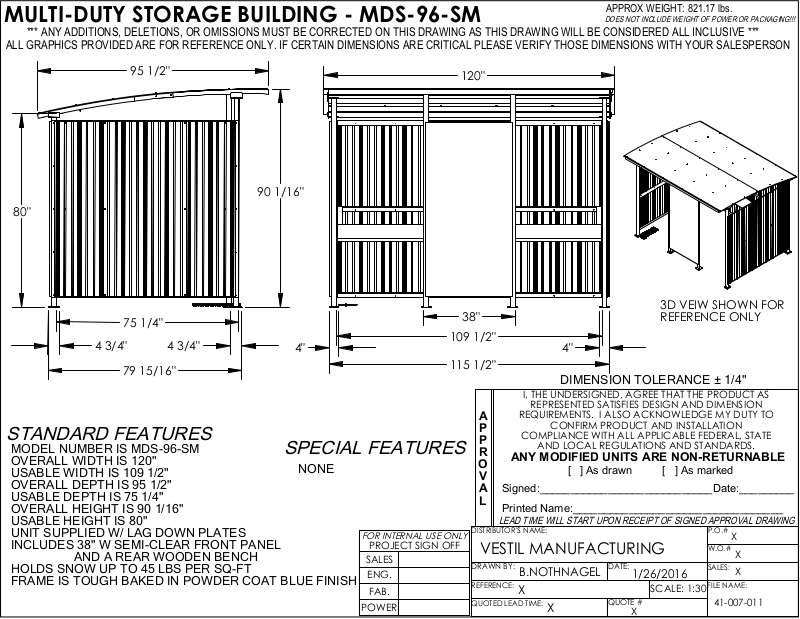

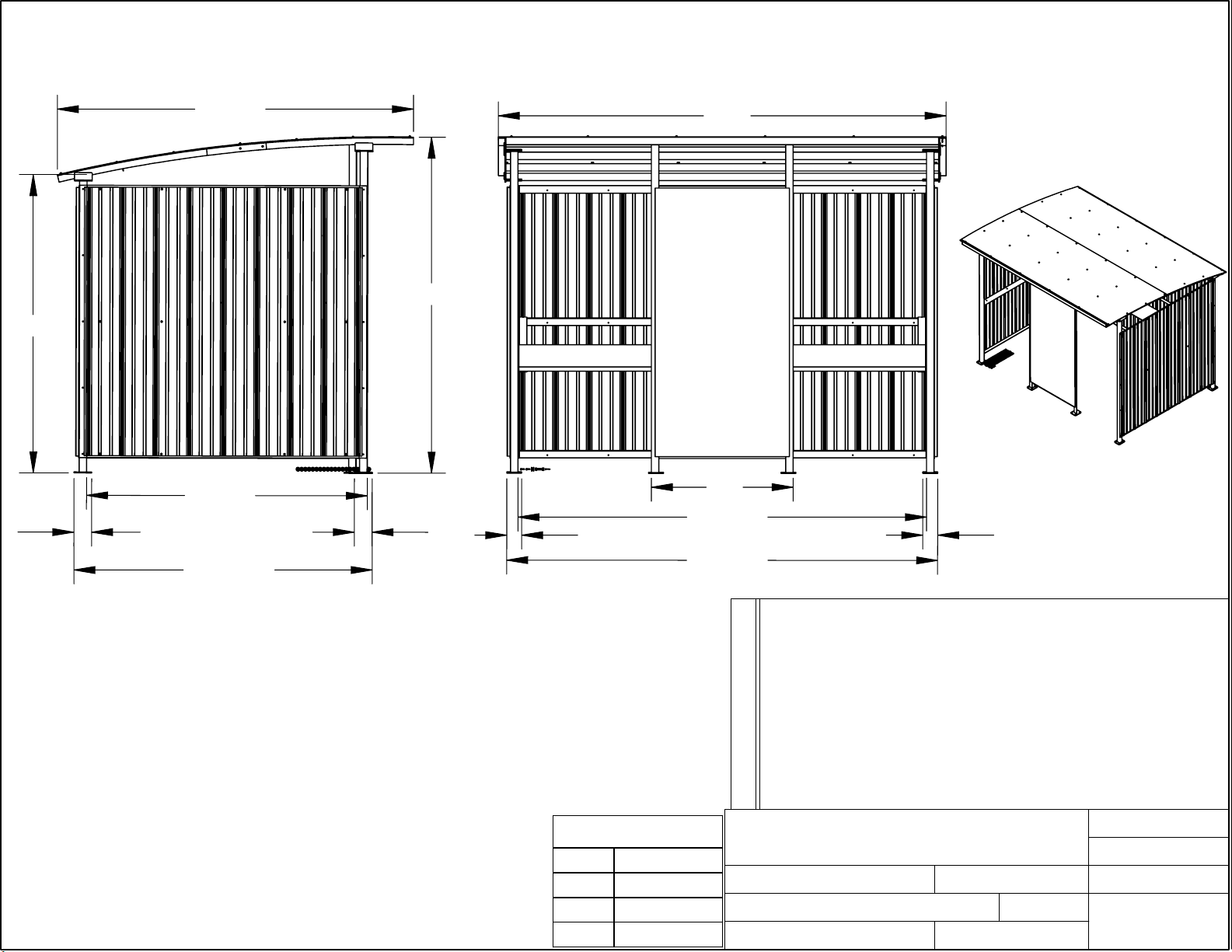

MULTI-DUTY STORAGE BUILDING - MDS-96-SM
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
95 1/2"
90 1/16"
80"
75 1/4"
4 3/4"
4 3/4"
4" 4"
79 15/16"
STANDARD FEATURES
MODEL NUMBER IS MDS-96-SM
OVERALL WIDTH IS 120"
USABLE WIDTH IS 109 1/2"
OVERALL DEPTH IS 95 1/2"
USABLE DEPTH IS 75 1/4"
OVERALL HEIGHT IS 90 1/16"
USABLE HEIGHT IS 80"
UNIT SUPPLIED W/ LAG DOWN PLATES
INCLUDES 38" W SEMI-CLEAR FRONT PANEL
AND A REAR WOODEN BENCH
HOLDS SNOW UP TO 45 LBS PER SQ-FT
FRAME IS TOUGH BAKED IN POWDER COAT BLUE FINISH
SPECIAL FEATURES
NONE
120"
38"
109 1/2"
115 1/2"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
3D VEIW SHOWN FOR
REFERENCE ONLY
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
B.NOTHNAGEL
X
:
X
DATE:
1/26/2016
SCALE: 1:30
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
41-007-011
