APPROX WEIGHT: 26.25 lbs.

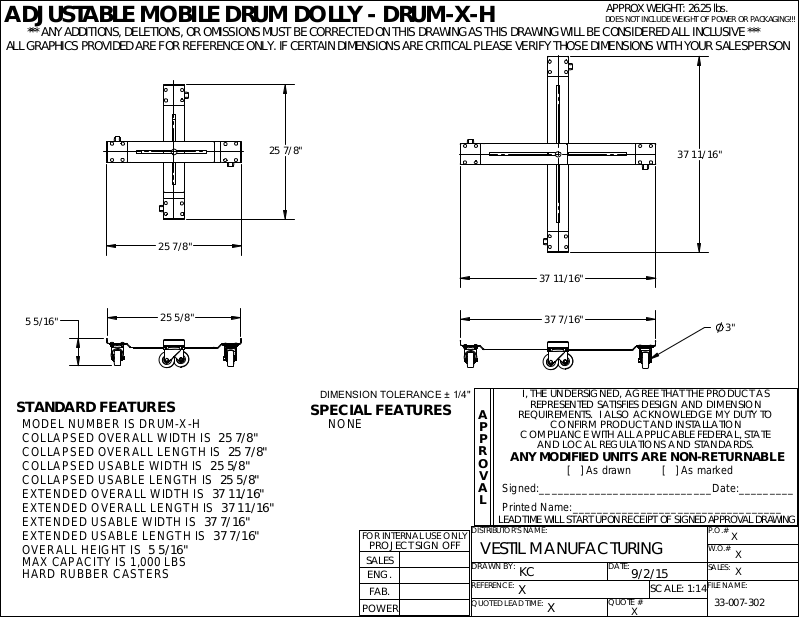

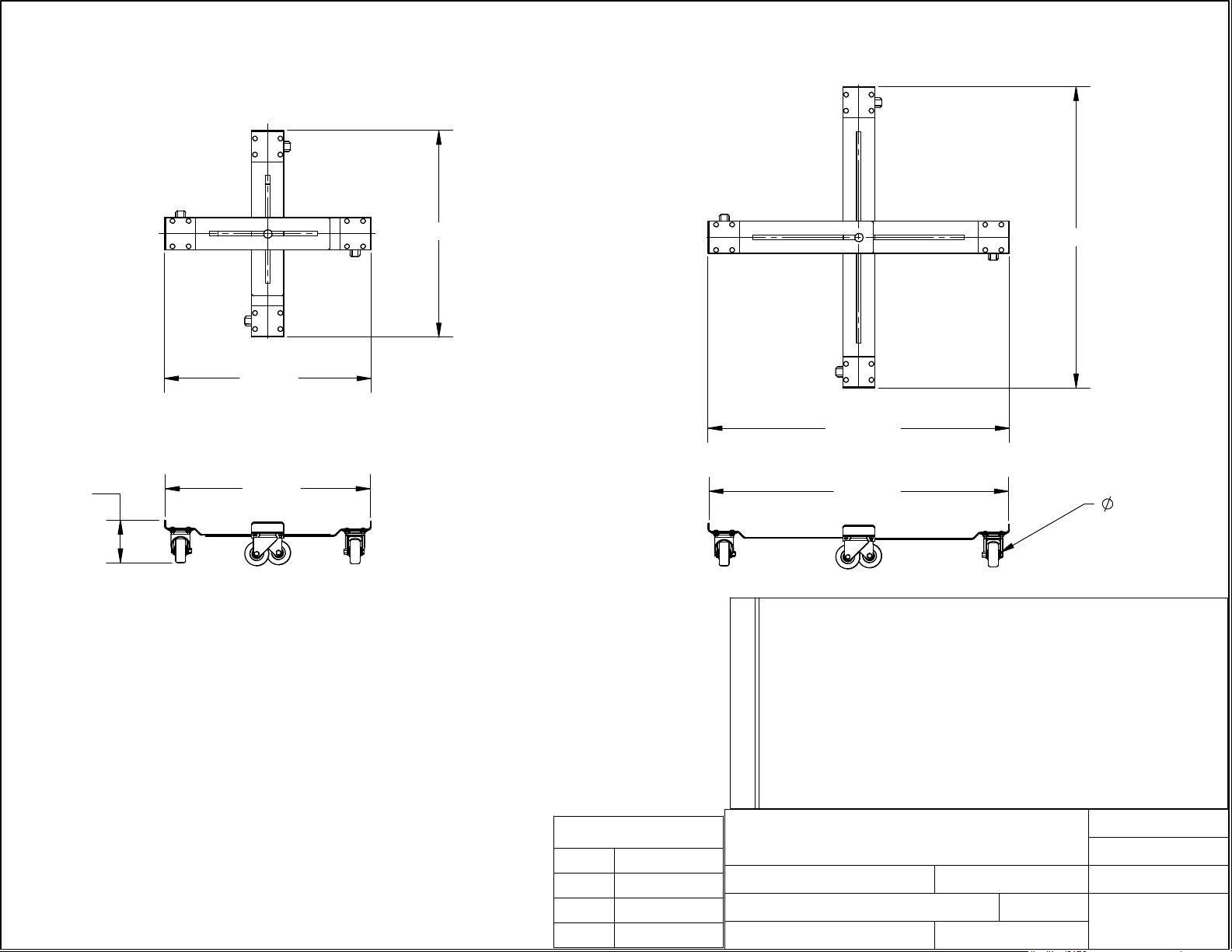

ADJUSTABLE MOBILE DRUM DOLLY - DRUM-X-H
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
25 7/8"
5 5/16"
25 5/8"
STANDARD FEATURES
MODEL NUMBER IS DRUM-X-H
COLLAPSED OVERALL WIDTH IS
COLLAPSED OVERALL LENGTH IS 25 7/8"
COLLAPSED USABLE WIDTH IS 25 5/8"
COLLAPSED USABLE LENGTH IS
EXTENDED OVERALL WIDTH IS 37 11/16"
EXTENDED OVERALL LENGTH IS 37 11/16"
EXTENDED USABLE WIDTH IS
EXTENDED USABLE LENGTH IS 37 7/16"
OVERALL HEIGHT IS 5 5/16"
MAX CAPACITY IS 1,000 LBS
HARD RUBBER CASTERS
25 7/8"
25 5/8"
37 7/16"
25 7/8"
DIMENSION TOLERANCE ± 1/4"
SPECIAL FEATURES
NONE
