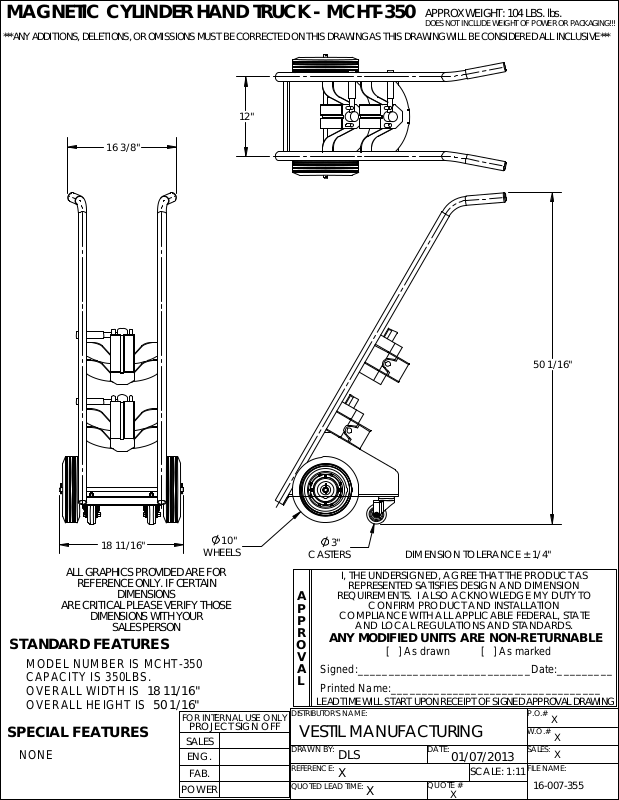

MAGNETIC CYLINDER HAND TRUCK - MCHT-350
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
12"
16 3/8"
APPROX WEIGHT: 104 LBS. lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
18 11/16"
ALL GRAPHICS PROVIDED ARE FOR
REFERENCE ONLY. IF CERTAIN
DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE
DIMENSIONS WITH YOUR
SALESPERSON
STANDARD FEATURES
MODEL NUMBER IS MCHT-350
CAPACITY IS 350LBS.
OVERALL WIDTH IS 18 11/16"
OVERALL HEIGHT IS 50 1/16"
SPECIAL FEATURES
NONE
10"
WHEELS
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
50 1/16"
3"
CASTERS
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
DLS
X
X
DIMENSION TOLERANCE ± 1/4"
P.O.#
W.O.#
DATE:
SALES:
01/07/2013
SCALE: 1:11
QUOTE #
X
FILE NAME:
16-007-355
X
X
X
