APPROX WEIGHT: 337.28 lbs.

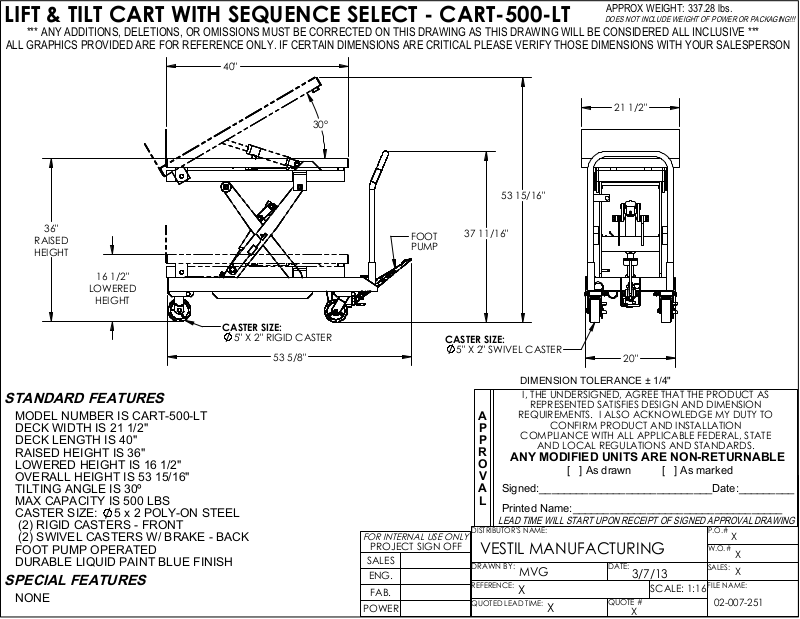

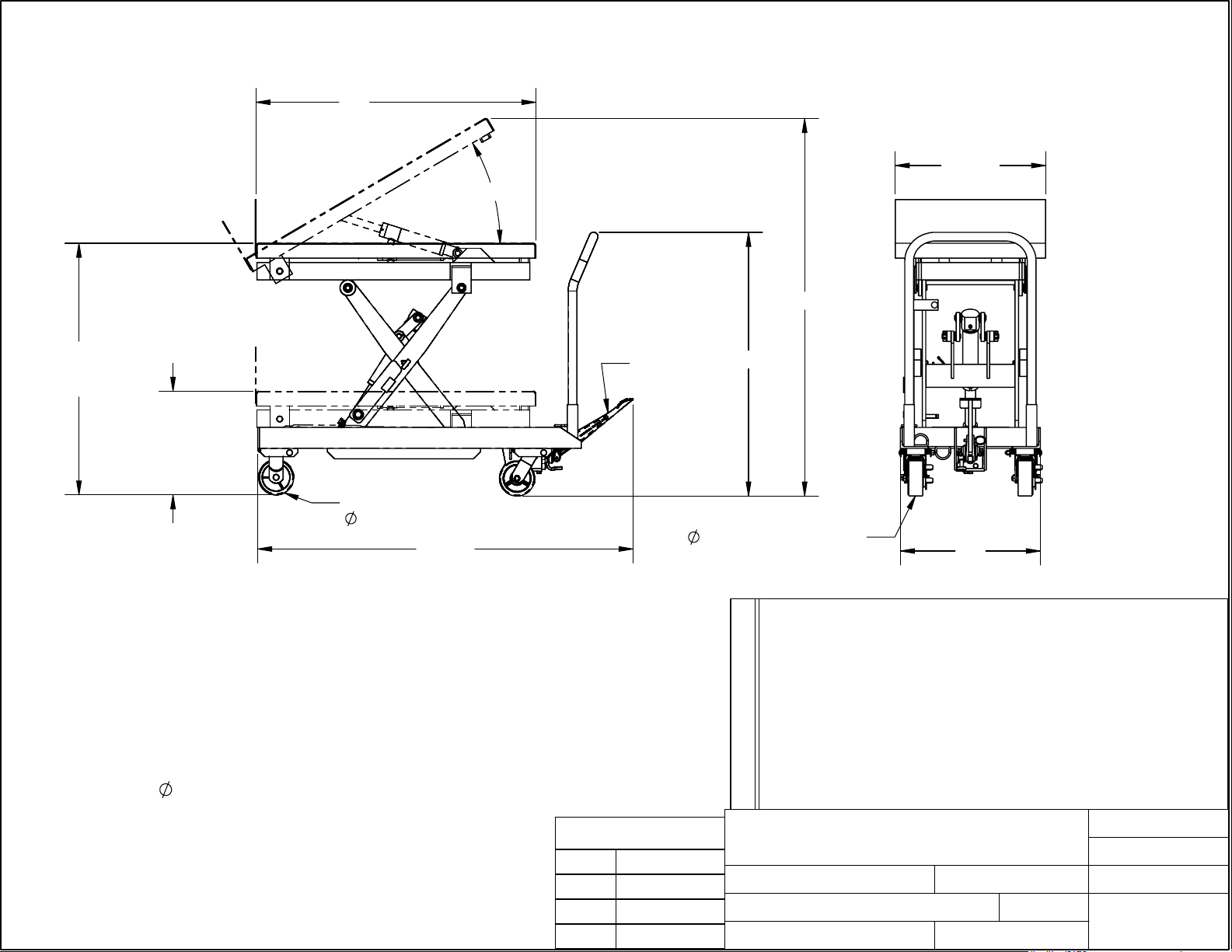

LIFT & TILT CART WITH SEQUENCE SELECT - CART-500-LT
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
40"
21 1/2"
30°
53 15/16"
36"
RAISED
HEIGHT
16 1/2"
LOWERED
HEIGHT
STANDARD FEATURES
MODEL NUMBER IS CART-500-LT
DECK WIDTH IS 21 1/2"
DECK LENGTH IS 40"
RAISED HEIGHT IS 36"
LOWERED HEIGHT IS 16 1/2"
OVERALL HEIGHT IS 53 15/16"
TILTING ANGLE IS 30º
MAX CAPACITY IS 500 LBS
CASTER SIZE:
5 x 2 POLY-ON STEEL
(2) RIGID CASTERS - FRONT
(2) SWIVEL CASTERS W/ BRAKE - BACK
FOOT PUMP OPERATED
DURABLE LIQUID PAINT BLUE FINISH
SPECIAL FEATURES
NONE
CASTER SIZE:
5" X 2" RIGID CASTER
53 5/8"
FOOT
PUMP
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
37 11/16"
CASTER SIZE:
5" X 2" SWIVEL CASTER
20"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
MVG
X
:
X
DATE:
3/7/13
SCALE: 1:16
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
02-007-251
