Page 1
APPROX WEIGHT: 2412.33 lbs.

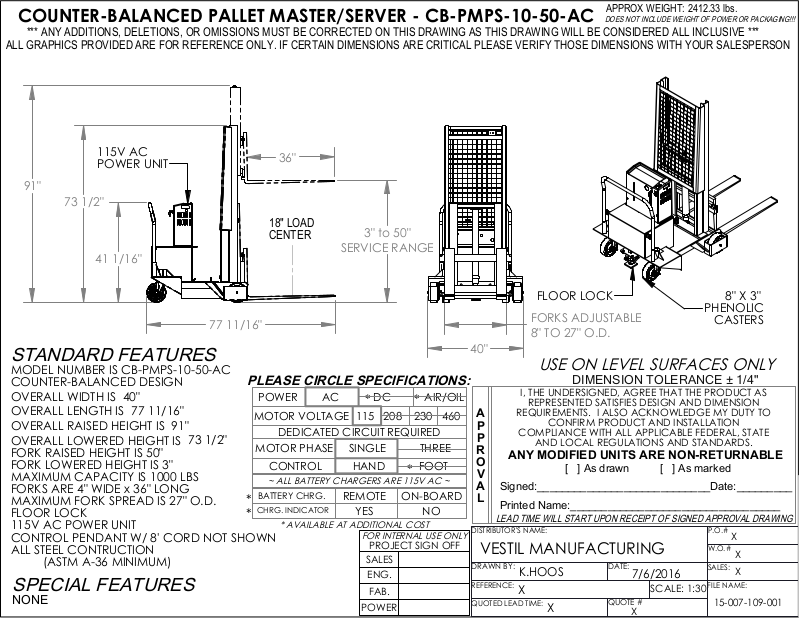

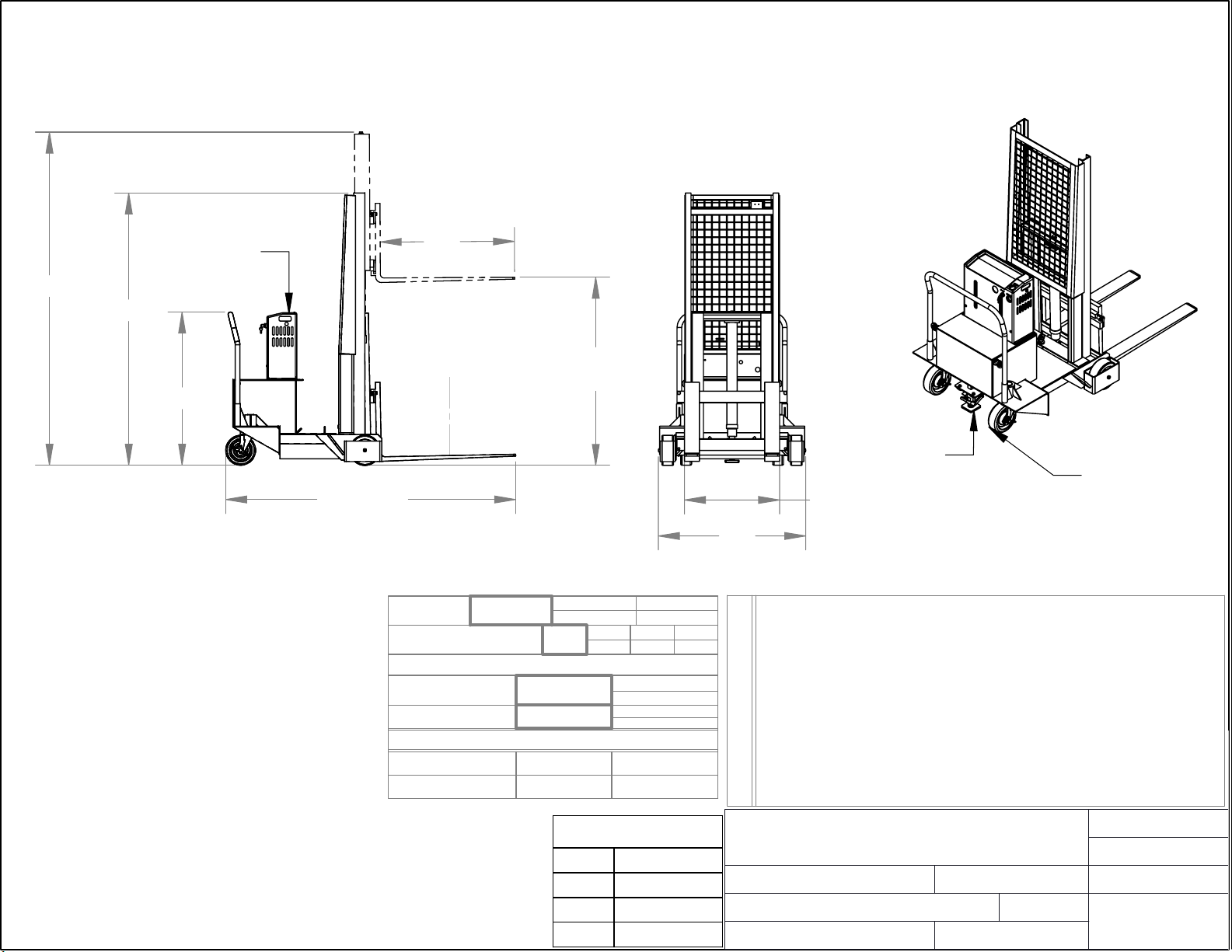

COUNTER-BALANCED PALLET MASTER/SERVER - CB-PMPS-10-50-AC
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
115V AC
POWER UNIT
91"
73 1/2"
41 1/16"
77 11/16"
STANDARD FEATURES
MODEL NUMBER IS CB-PMPS-10-50-AC
COUNTER-BALANCED DESIGN
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL RAISED HEIGHT IS
40"
77 11/16"
91"
OVERALL LOWERED HEIGHT IS
FORK RAISED HEIGHT IS 50"
73 1/2"
PLEASE CIRCLE SPECIFICATIONS:
POWER AC DC AIR/OIL
MOTOR VOLTAGE 115 208 230 460
MOTOR PHASE SINGLE THREE
FORK LOWERED HEIGHT IS 3"
MAXIMUM CAPACITY IS 1000 LBS
FORKS ARE 4" WIDE x 36" LONG
MAXIMUM FORK SPREAD IS 27" O.D.
FLOOR LOCK
BATTERY CHRG.
*
CHRG. INDICATOR
*
115V AC POWER UNIT
CONTROL PENDANT W/ 8' CORD NOT SHOWN
ALL STEEL CONTRUCTION
(ASTM A-36 MINIMUM)
SPECIAL FEATURES
NONE
36"
18" LOAD
CENTER
3" to 50"
SERVICE RANGE
*
DEDICATED CIRCUIT REQUIRED
CONTROL HAND FOOT
~ ALL BATTERY CHARGERS ARE 115V AC ~
REMOTE ON-BOARD
YES NO
* AVAILABLE AT ADDITIONAL COST
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
*
*
40"
A
P
P
R
O
V
>
A
L
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
FLOOR LOCK
8" X 3"
PHENOLIC
FORKS ADJUSTABLE
CASTERS
8" TO 27" O.D.
USE ON LEVEL SURFACES ONLY
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
P.O.#
X
W.O.#
X
K.HOOS
X
:
X
DATE:
7/6/2016
SCALE: 1:30
QUOTE #
X
SALES:
X
FILE NAME:
15-007-109-001
