Page 1

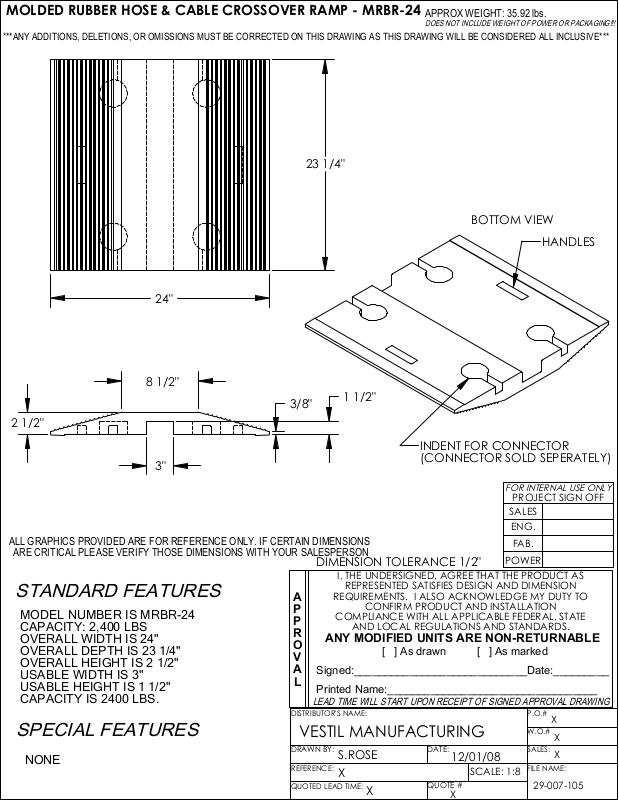

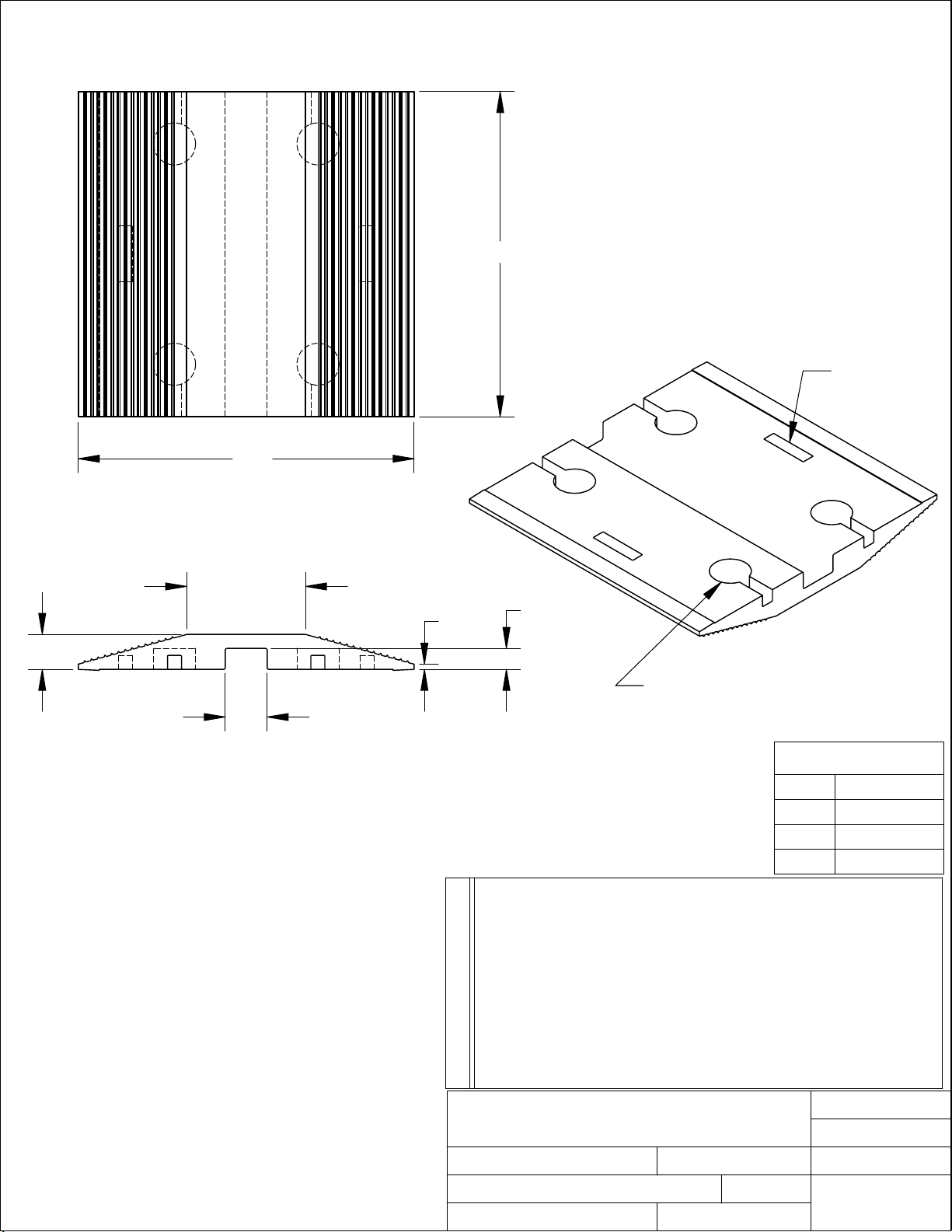

MOLDED RUBBER HOSE & CABLE CROSSOVER RAMP - MRBR-24
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
APPROX WEIGHT: 35.92 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
23 1/4"
BOTTOM VIEW
HANDLES
24"
8 1/2"
3/8"
1 1/2"
2 1/2"
3"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE 1/2"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
STANDARD FEATURES
MODEL NUMBER IS MRBR-24
CAPACITY: 2,400 LBS
OVERALL WIDTH IS 24"
OVERALL DEPTH IS 23 1/4"
OVERALL HEIGHT IS 2 1/2"
USABLE WIDTH IS 3"
USABLE HEIGHT IS 1 1/2"
CAPACITY IS 2400 LBS.
SPECIAL FEATURES
NONE
A
P
P
R
O
V
A
L
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
S.ROSE
X
:
INDENT FOR CONNECTOR
(CONNECTOR SOLD SEPERATELY)
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
CONFIRM PRODUCT AND INSTALLATION
P.O.#
X
W.O.#
DATE:
SALES:
12/01/08
SCALE: 1:8
X
QUOTE #
X
FILE NAME:
29-007-105
X
X
