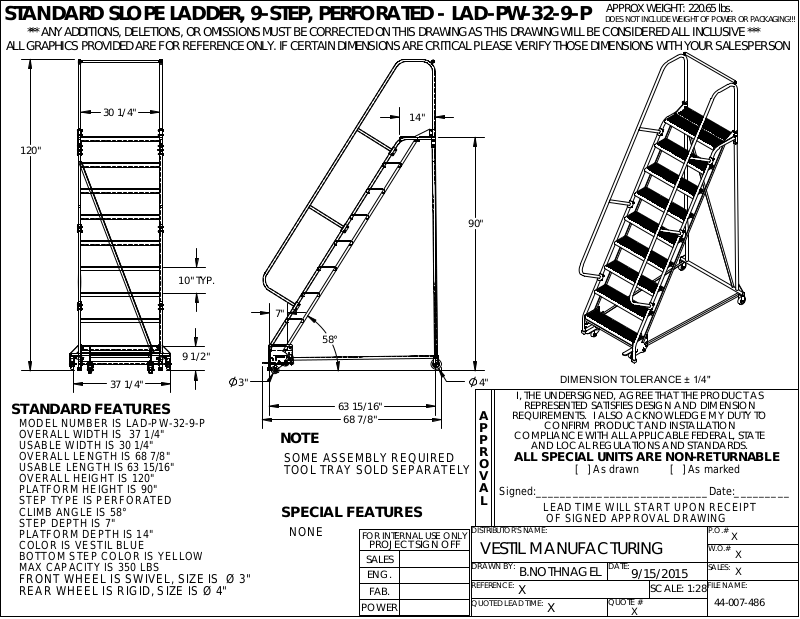

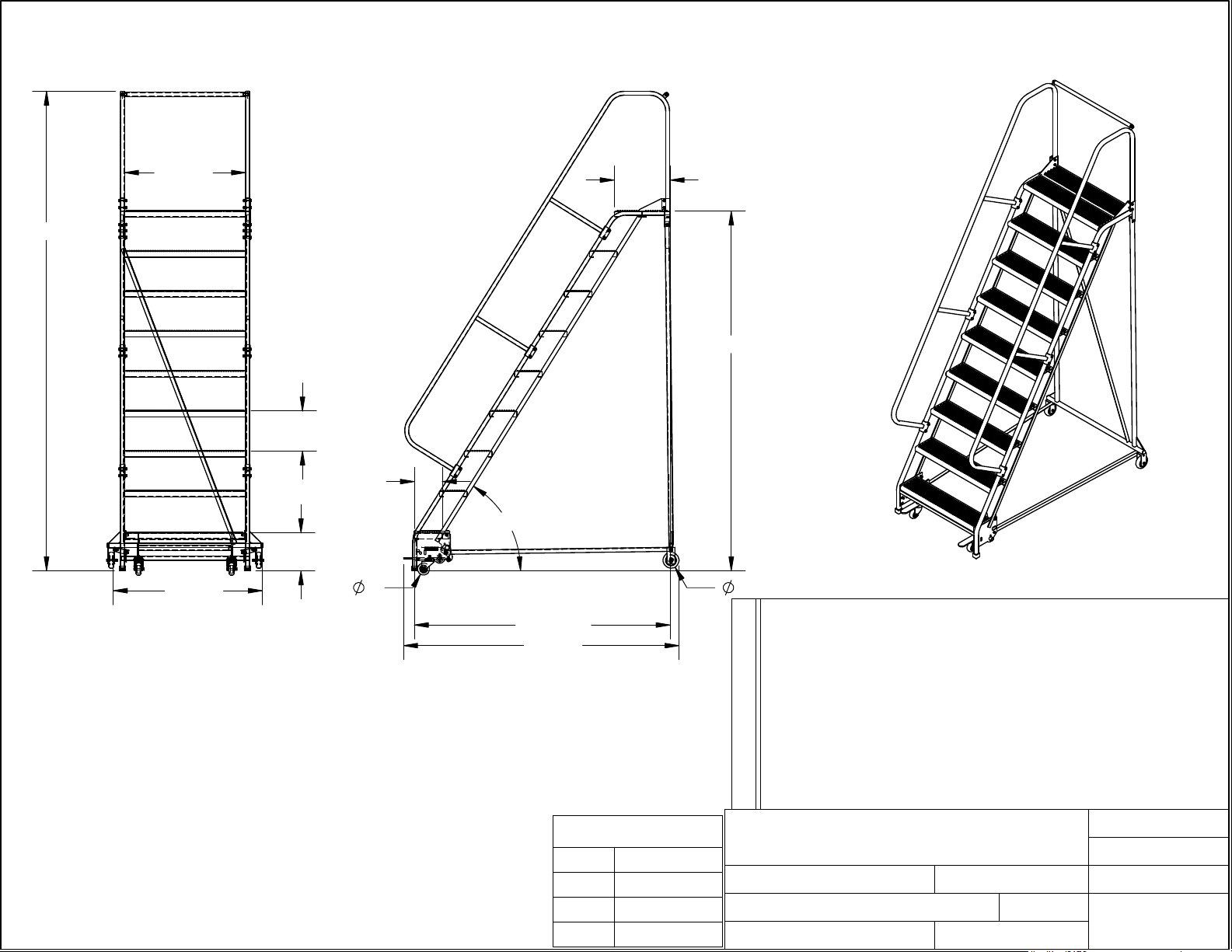

STANDARD SLOPE LADDER, 9-STEP, PERFORATED - LAD-PW-32-9-P
APPROX WEIGHT: 220.65 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
30 1/4"
120"
10" TYP.
9 1/2"
37 1/4"
3" 4"
STANDARD FEATURES
MODEL NUMBER IS LAD-PW-32-9-P
OVERALL WIDTH IS 37 1/4"
USABLE WIDTH IS 30 1/4"
OVERALL LENGTH IS 68 7/8"
USABLE LENGTH IS 63 15/16"
OVERALL HEIGHT IS 120"
PLATFORM HEIGHT IS 90"
STEP TYPE IS PERFORATED
CLIMB ANGLE IS 58°
STEP DEPTH IS 7"
PLATFORM DEPTH IS 14"
COLOR IS VESTIL BLUE
BOTTOM STEP COLOR IS YELLOW
MAX CAPACITY IS 350 LBS
FRONT WHEEL IS SWIVEL, SIZE IS Ø 3"
REAR WHEEL IS RIGID, SIZE IS Ø 4"
14"
7"
58°
63 15/16"
68 7/8"
NOTE
SOME ASSEMBLY REQUIRED
TOOL TRAY SOLD SEPARATELY
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
90"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
B.NOTHNAGEL
X
X
DATE:
QUOTE #
9/15/2015
SCALE: 1:28
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
44-007-486
