APPROX WEIGHT: 206.32 lbs.

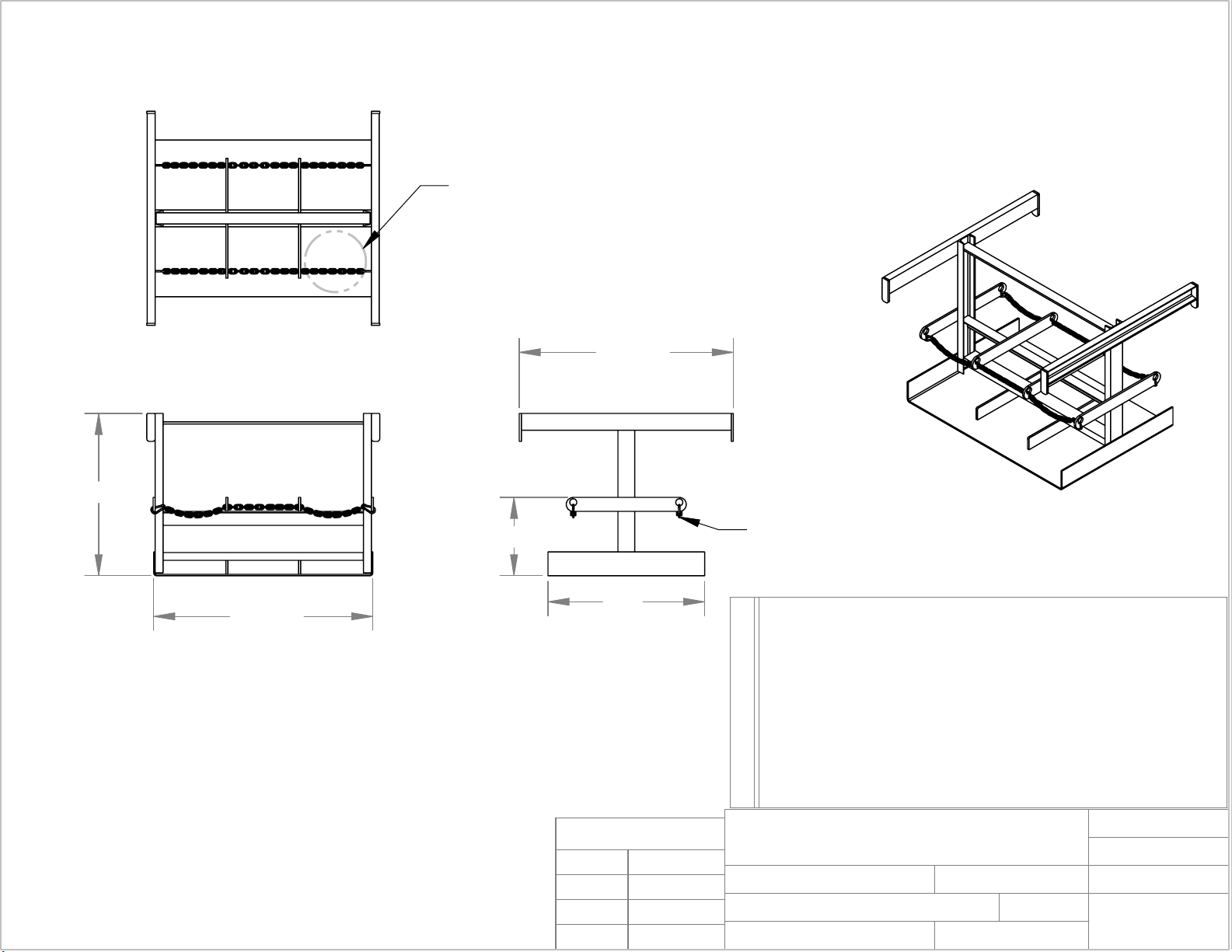

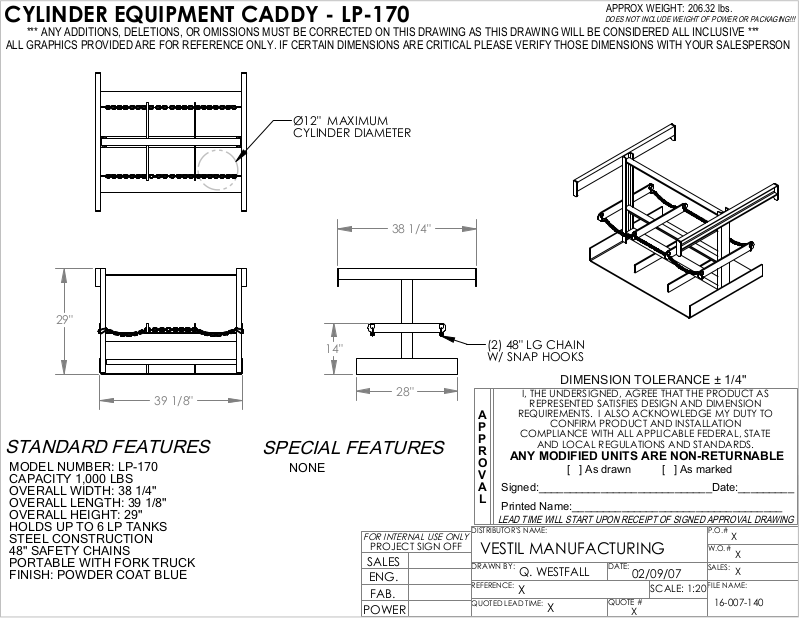

CYLINDER EQUIPMENT CADDY - LP-170
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
Ø12" MAXIMUM
CYLINDER DIAMETER
38 1/4"
29"
39 1/8"
STANDARD FEATURES
MODEL NUMBER: LP-170
CAPACITY 1,000 LBS
OVERALL WIDTH: 38 1/4"
OVERALL LENGTH: 39 1/8"
OVERALL HEIGHT: 29"
HOLDS UP TO 6 LP TANKS
STEEL CONSTRUCTION
48" SAFETY CHAINS
PORTABLE WITH FORK TRUCK
FINISH: POWDER COAT BLUE
14"
28"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
(2) 48" LG CHAIN
W/ SNAP HOOKS
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
Q. WESTFALL
X
:
X
DATE:
02/09/07
SCALE: 1:20
QUOTE #
X
SALES:
X
FILE NAME:
16-007-140
