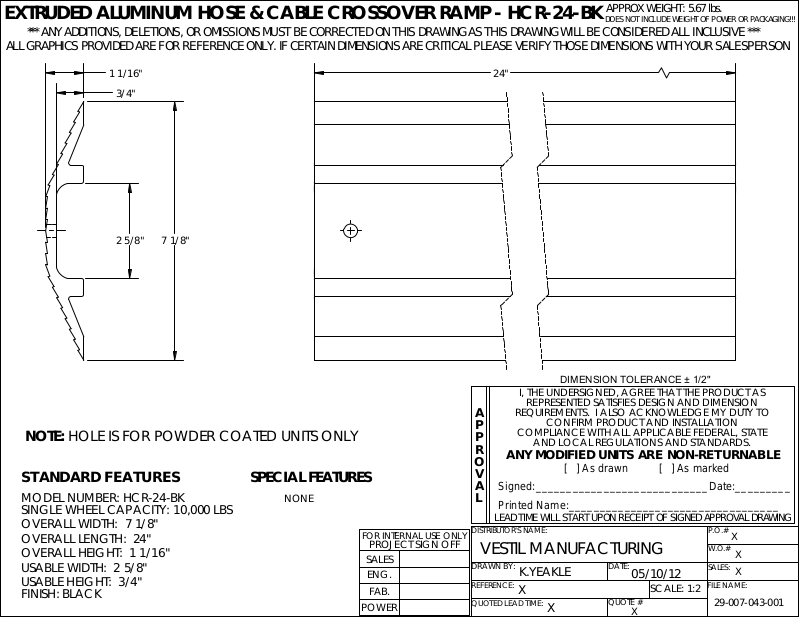

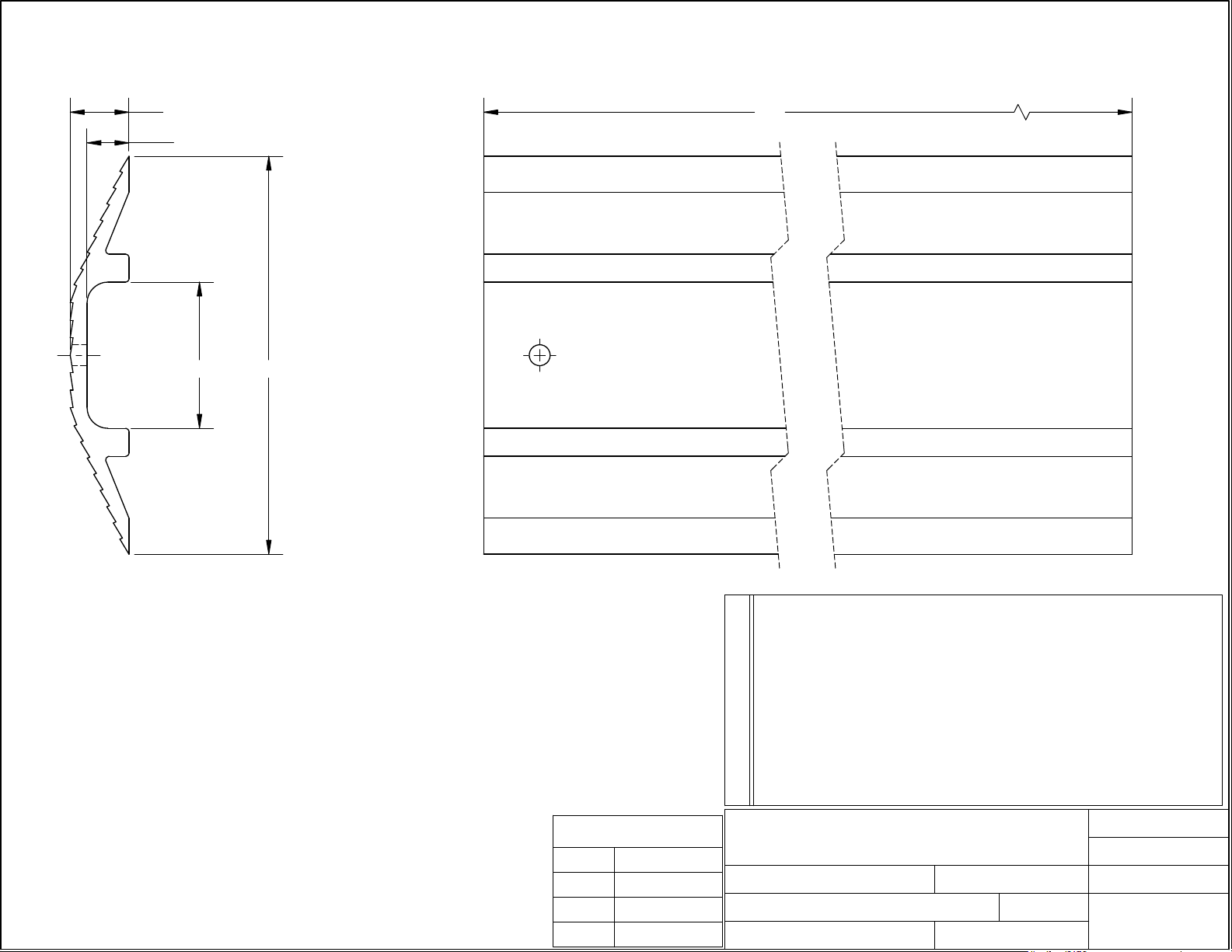

EXTRUDED ALUMINUM HOSE & CABLE CROSSOVER RAMP - HCR-24-BK
APPROX WEIGHT: 5.67 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
1 1/16"
3/4"
24"
7 1/8" 2 5/8"
NOTE: HOLE IS FOR POWDER COATED UNITS ONLY
STANDARD FEATURES
MODEL NUMBER: HCR-24-BK
SINGLE WHEEL CAPACITY: 10,000 LBS
OVERALL WIDTH: 7 1/8"
OVERALL LENGTH: 24"
OVERALL HEIGHT: 1 1/16"
USABLE WIDTH: 2 5/8"
USABLE HEIGHT: 3/4"
FINISH: BLACK
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/2"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
K.YEAKLE
X
X
DATE:
05/10/12
SCALE: 1:2
QUOTE #
X
SALES:
X
FILE NAME:
29-007-043-001
