APPROX WEIGHT: 169.14 lbs.

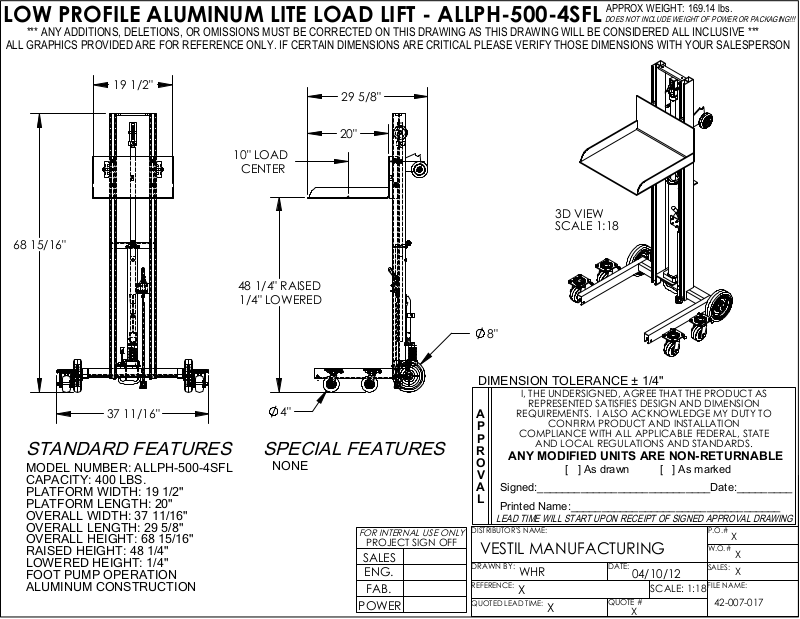

LOW PROFILE ALUMINUM LITE LOAD LIFT - ALLPH-500-4SFL
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
19 1/2"
29 5/8"
20"
10"
LOAD
CENTER

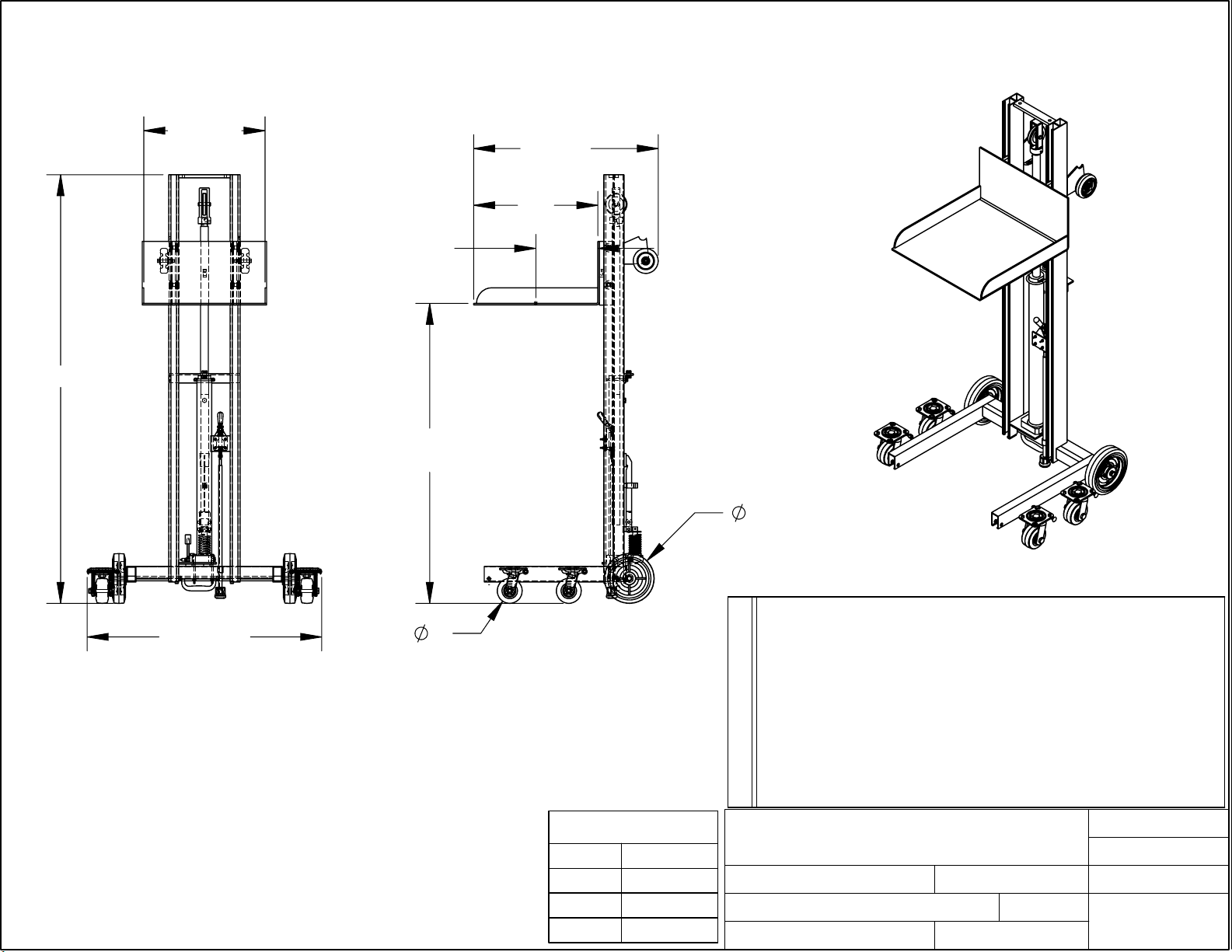

3D VIEW
SCALE 1:18
68 15/16"
37 11/16"
STANDARD FEATURES
MODEL NUMBER: ALLPH-500-4SFL
CAPACITY: 400 LBS.
PLATFORM WIDTH: 19 1/2"
PLATFORM LENGTH: 20"
OVERALL WIDTH: 37 11/16"
OVERALL LENGTH: 29 5/8"
OVERALL HEIGHT: 68 15/16"
RAISED HEIGHT: 48 1/4"
LOWERED HEIGHT: 1/4"
FOOT PUMP OPERATION
ALUMINUM CONSTRUCTION
48 1/4"
RAISED
1/4" LOWERED
4"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
8"
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
WHR
X
DATE:
04/10/12
SCALE: 1:18
:
X
QUOTE #
X
SALES:
X
FILE NAME:
42-007-017
