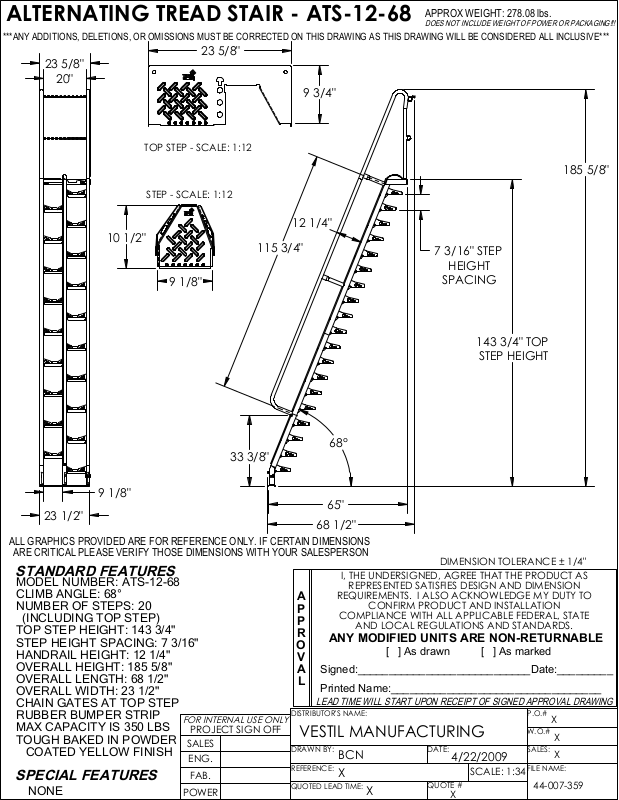

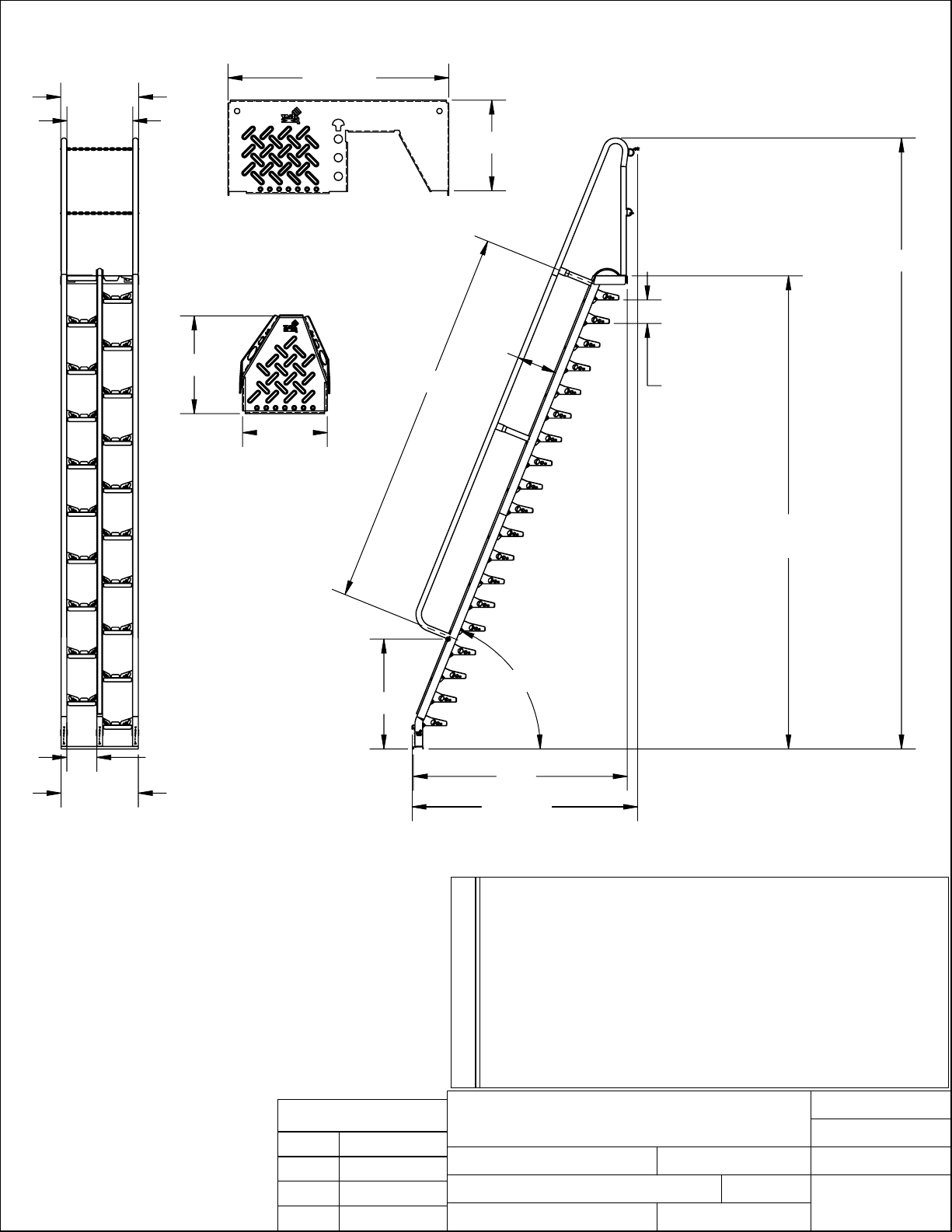

ALTERNATING TREAD STAIR - ATS-12-68
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
APPROX WEIGHT: 278.08 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
23 5/8"
23 5/8"
20"
9 3/4"
TOP STEP - SCALE: 1:12
185 5/8"
STEP - SCALE: 1:12
12 1/4"
10 1/2"
115 3/4"
7 3/16"
STEP
HEIGHT
9 1/8"
SPACING
68°
33 3/8"
9 1/8"
65"
23 1/2"
68 1/2"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
STANDARD FEATURES
MODEL NUMBER: ATS-12-68
CLIMB ANGLE: 68°
NUMBER OF STEPS: 20
(INCLUDING TOP STEP)
TOP STEP HEIGHT: 143 3/4"
STEP HEIGHT SPACING: 7 3/16"
HANDRAIL HEIGHT: 12 1/4"
OVERALL HEIGHT: 185 5/8"
OVERALL LENGTH: 68 1/2"
OVERALL WIDTH: 23 1/2"
CHAIN GATES AT TOP STEP
RUBBER BUMPER STRIP
MAX CAPACITY IS 350 LBS
TOUGH BAKED IN POWDER
COATED YELLOW FINISH
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
BCN
X
:
143 3/4"
TOP
STEP HEIGHT
DIMENSION TOLERANCE ± 1/4"
CONFIRM PRODUCT AND INSTALLATION
P.O.#
W.O.#
DATE:
SALES:
4/22/2009
SCALE: 1:34
X
QUOTE #
X
FILE NAME:
44-007-359
X
X
X
