APPROX WEIGHT: 28.97 lbs.

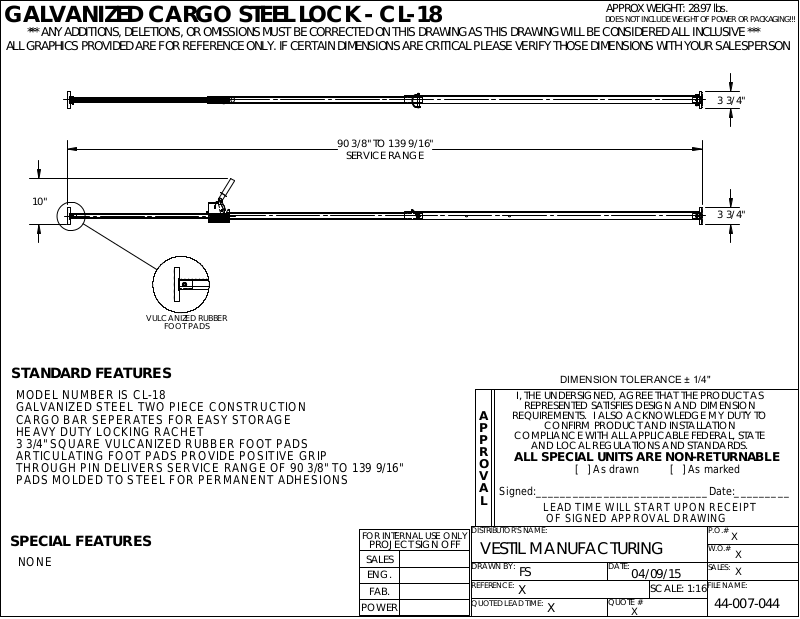

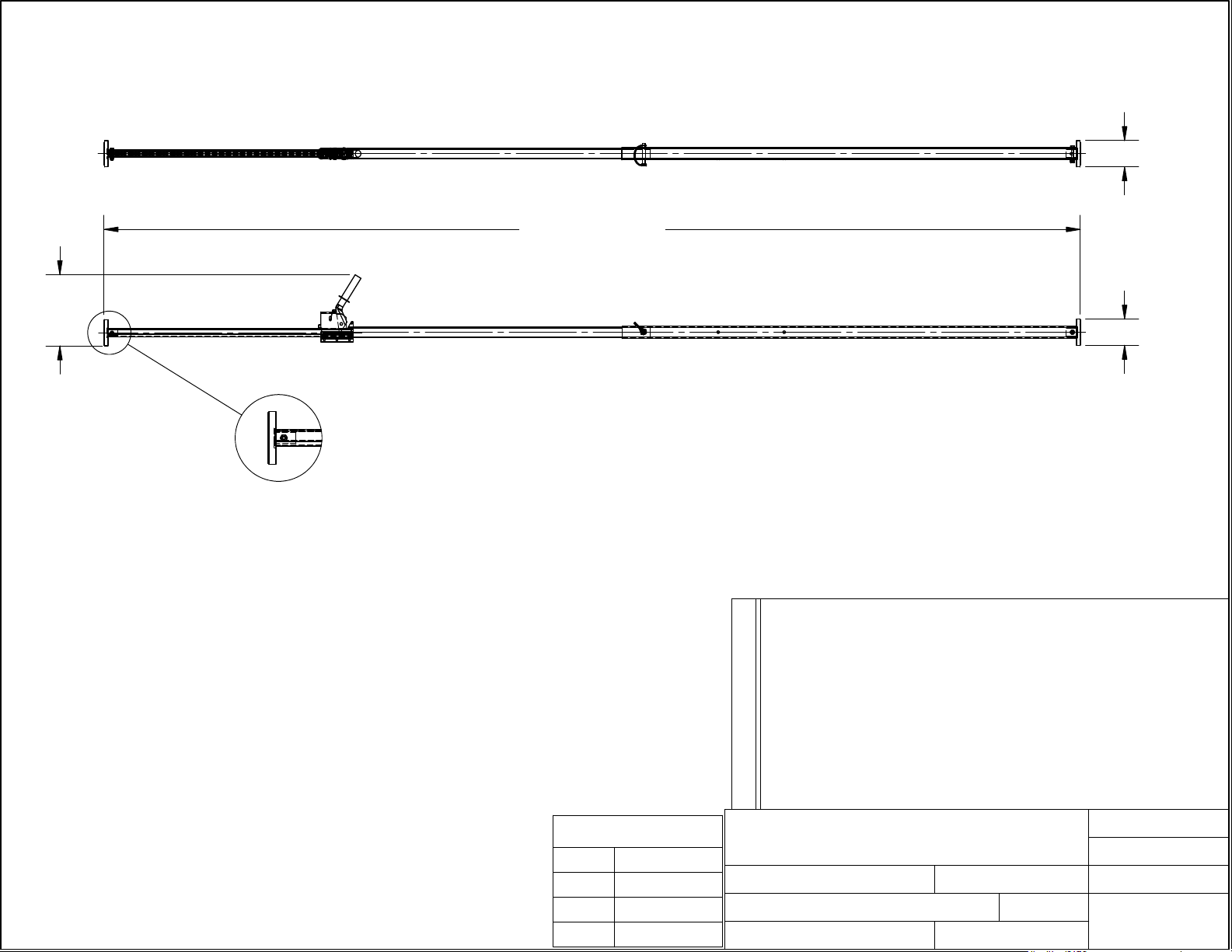

GALVANIZED CARGO STEEL LOCK - CL-18
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
3 3/4"
90 3/8" TO 139 9/16"
SERVICE RANGE
10"
3 3/4"
VULCANIZED RUBBER
FOOT PADS
STANDARD FEATURES
MODEL NUMBER IS CL-18
GALVANIZED STEEL TWO PIECE CONSTRUCTION
CARGO BAR SEPERATES FOR EASY STORAGE
HEAVY DUTY LOCKING RACHET
3 3/4" SQUARE VULCANIZED RUBBER FOOT PADS
ARTICULATING FOOT PADS PROVIDE POSITIVE GRIP
THROUGH PIN DELIVERS SERVICE RANGE OF 90 3/8" TO 139 9/16"
PADS MOLDED TO STEEL FOR PERMANENT ADHESIONS
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
FS
X
X
DATE:
04/09/15
QUOTE #
X
SCALE: 1:16
P.O.#
W.O.#
SALES:
FILE NAME:
44-007-044
X
X
X
