Page 1

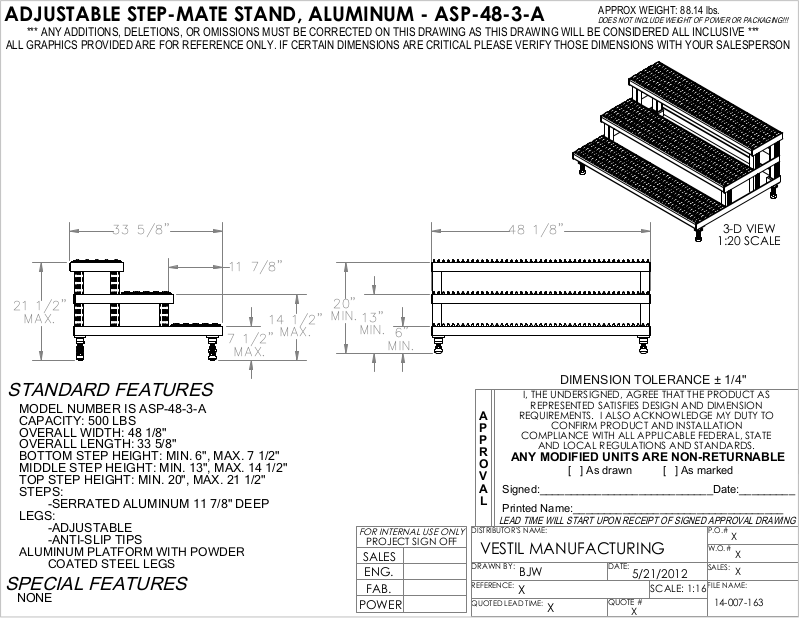

ADJUSTABLE STEP-MATE STAND, ALUMINUM - ASP-48-3-A
APPROX WEIGHT: 88.14 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
33 5/8"
11 7/8"
21 1/2"
MAX.
7 1/2"
MAX.
STANDARD FEATURES
MODEL NUMBER IS ASP-48-3-A
CAPACITY: 500 LBS
OVERALL WIDTH: 48 1/8"
OVERALL LENGTH: 33 5/8"
BOTTOM STEP HEIGHT: MIN. 6", MAX. 7 1/2"
MIDDLE STEP HEIGHT: MIN. 13", MAX. 14 1/2"
TOP STEP HEIGHT: MIN. 20", MAX. 21 1/2"
STEPS:
-SERRATED ALUMINUM 11 7/8" DEEP
LEGS:
-ADJUSTABLE
-ANTI-SLIP TIPS
ALUMINUM PLATFORM WITH POWDER
COATED STEEL LEGS
SPECIAL FEATURES
NONE
14 1/2"
MAX.
20"
MIN.
13"
MIN.
6"
MIN.
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
48 1/8"

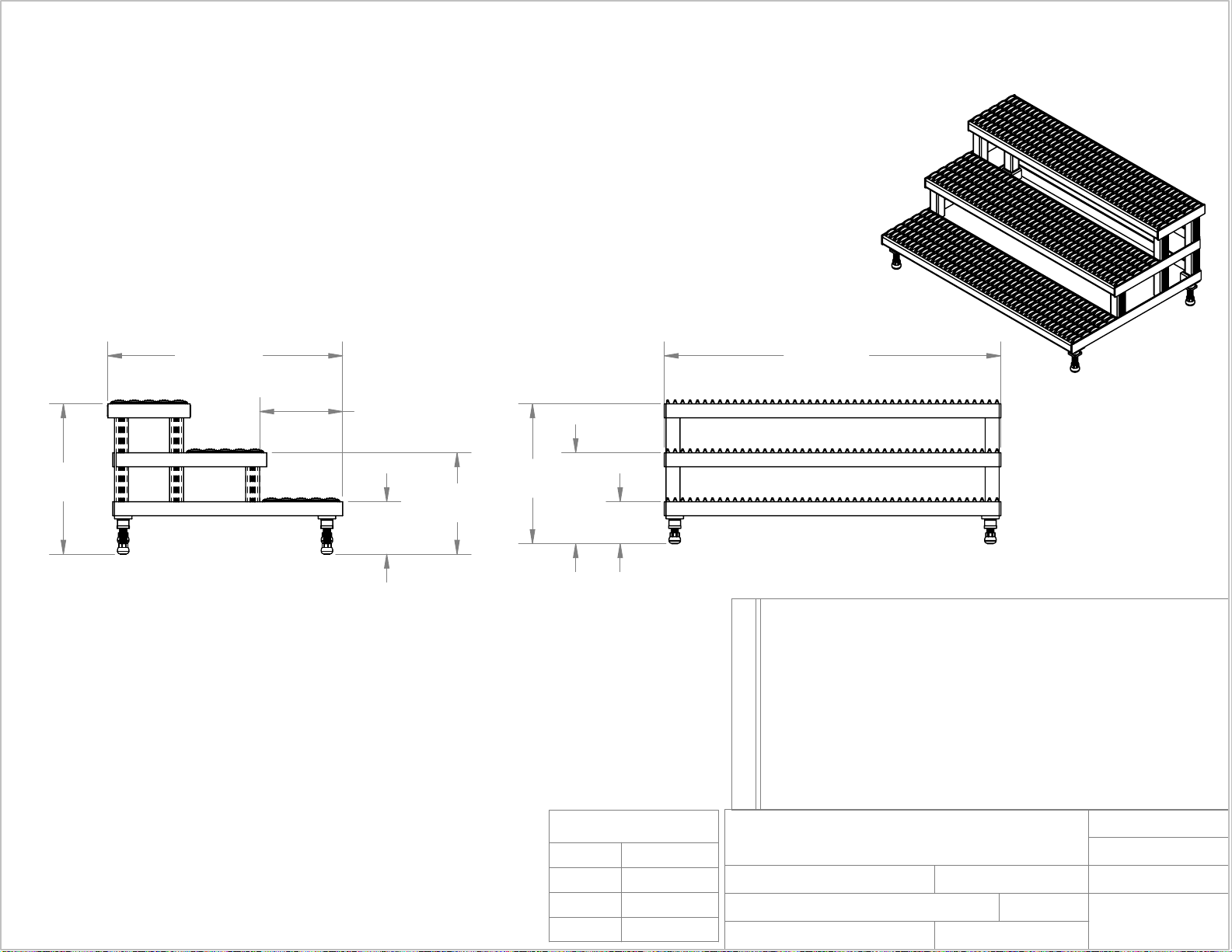

3-D VIEW
1:20 SCALE
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
BJW
X
:
X
DATE:
5/21/2012
SCALE: 1:16
QUOTE #
X
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
14-007-163
