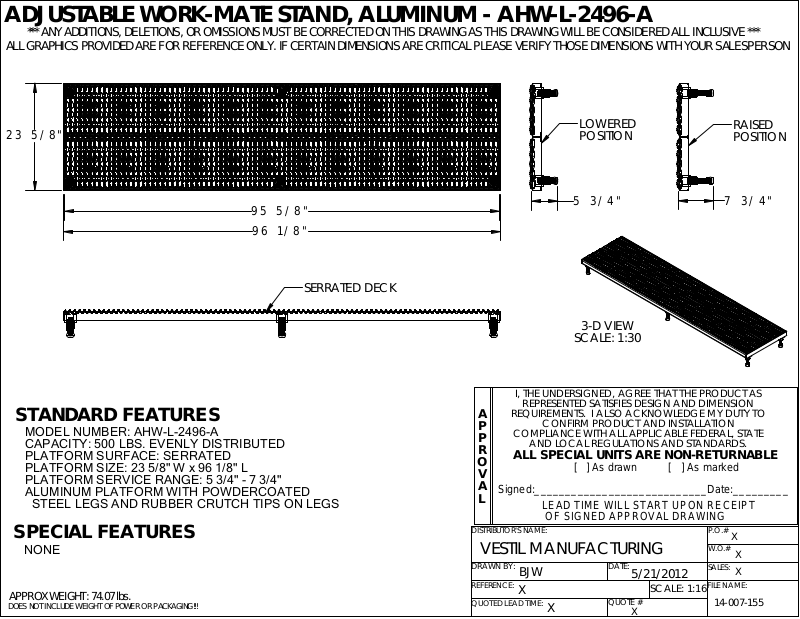

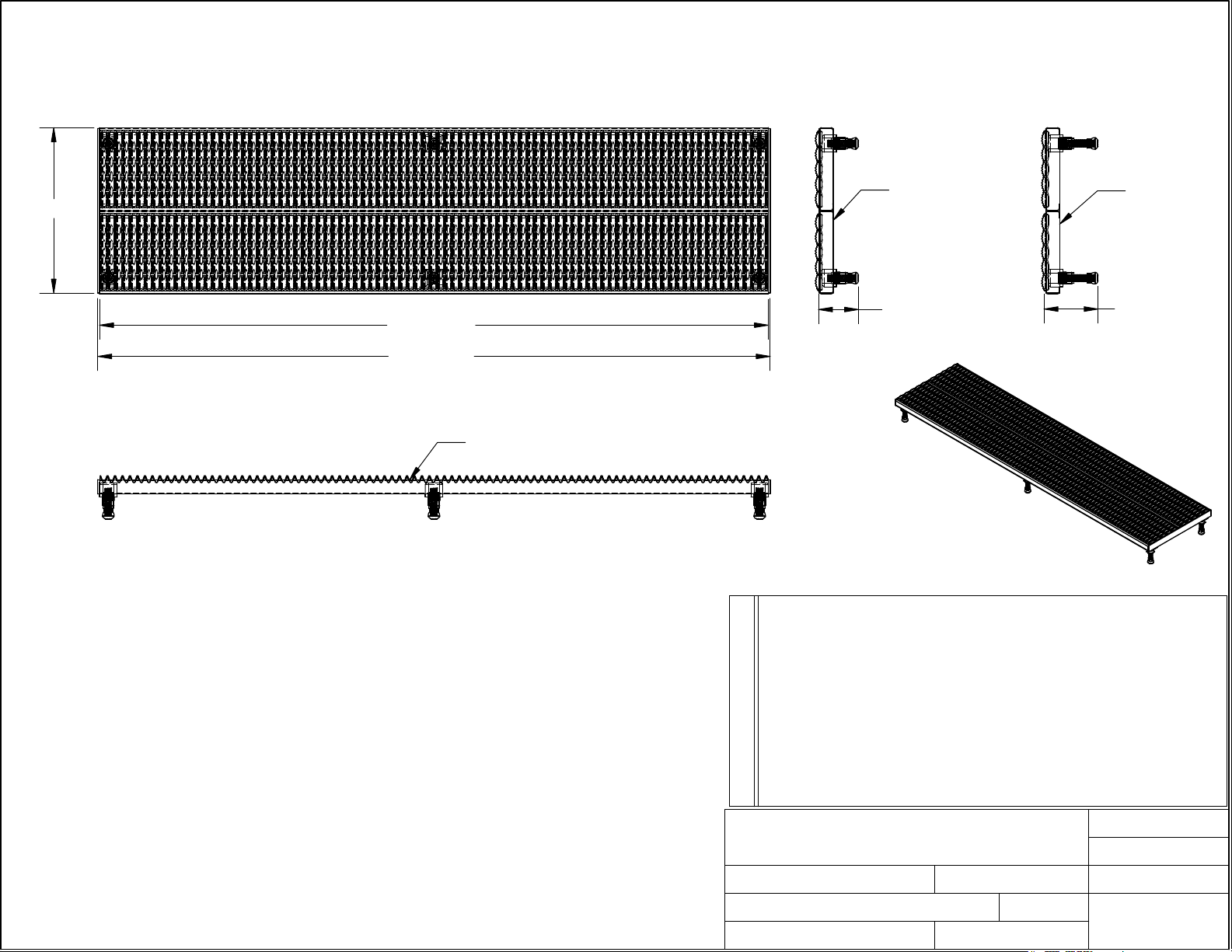

ADJUSTABLE WORK-MATE STAND, ALUMINUM - AHW-L-2496-A
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
23 5/ 8"
95 5/ 8"
96 1/ 8"
STANDARD FEATURES
MODEL NUMBER: AHW-L-2496-A
CAPACITY: 500 LBS. EVENLY DISTRIBUTED
PLATFORM SURFACE: SERRATED
PLATFORM SIZE: 23 5/8" W x 96 1/8" L
PLATFORM SERVICE RANGE: 5 3/4" - 7 3/4"
ALUMINUM PLATFORM WITH POWDERCOATED
STEEL LEGS AND RUBBER CRUTCH TIPS ON LEGS
SPECIAL FEATURES
NONE
APPROX WEIGHT: 74.07 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
SERRATED DECK
LOWERED
POSITION
5 3/ 4"
7 3/ 4"
3-D VIEW
SCALE: 1:30
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ALL SPECIAL UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
LEAD TIME WILL START UPON RECEIPT
OF SIGNED APPROVAL DRAWING
P.O.#
W.O.#
BJW
X
DATE:
5/21/2012
SCALE: 1:16
X
QUOTE #
X
SALES:
FILE NAME:
14-007-155
RAISED
POSITION
X
X
X
