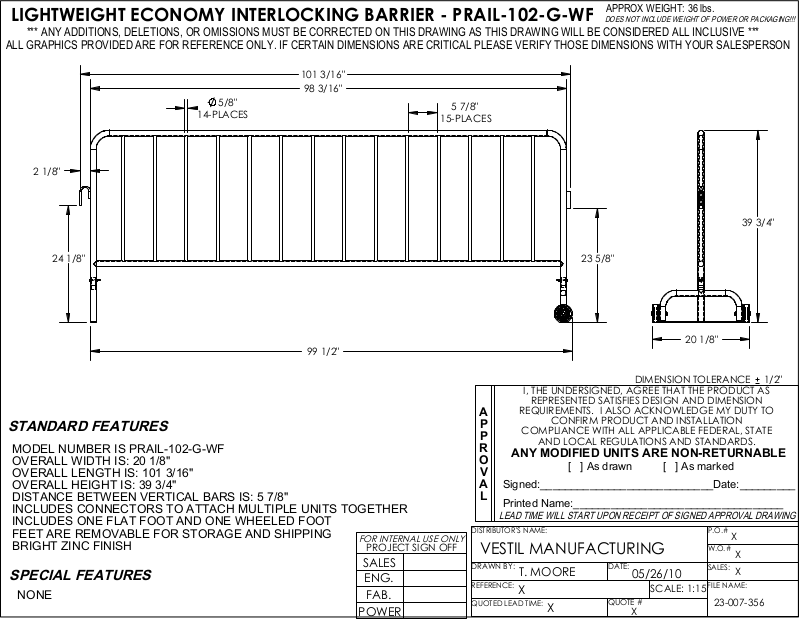

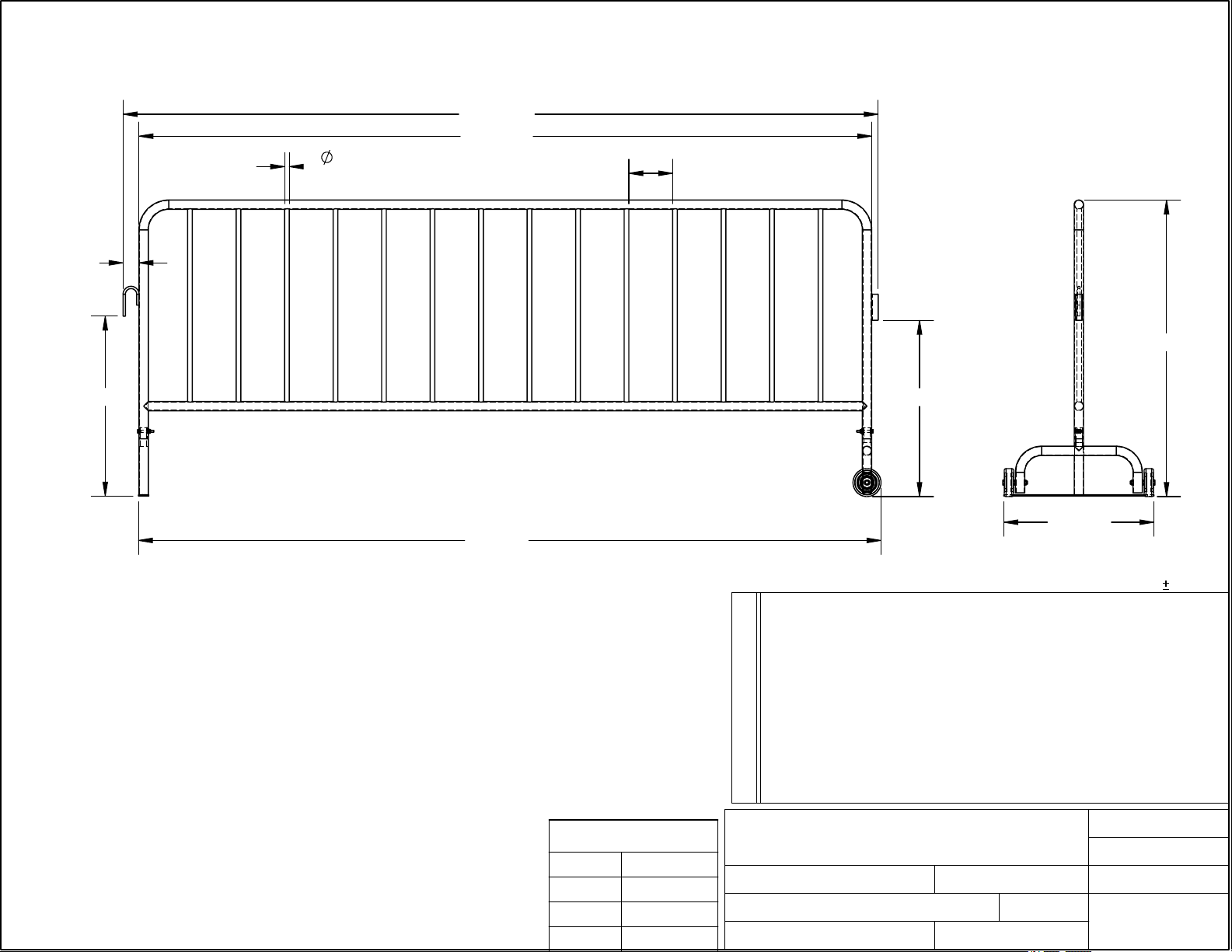

LIGHTWEIGHT ECONOMY INTERLOCKING BARRIER - PRAIL-102-G-WF
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
101 3/16"
98 3/16"
APPROX WEIGHT: 36 lbs.
5/8"
14-PLACES
2 1/8"
5 7/8"
15-PLACES
39 3/4"
24 1/8"
99 1/2"
STANDARD FEATURES
MODEL NUMBER IS PRAIL-102-G-WF
OVERALL WIDTH IS: 20 1/8"
OVERALL LENGTH IS: 101 3/16"
OVERALL HEIGHT IS: 39 3/4"
DISTANCE BETWEEN VERTICAL BARS IS: 5 7/8"
INCLUDES CONNECTORS TO ATTACH MULTIPLE UNITS TOGETHER
INCLUDES ONE FLAT FOOT AND ONE WHEELED FOOT
FEET ARE REMOVABLE FOR STORAGE AND SHIPPING
BRIGHT ZINC FINISH
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
23 5/8"
20 1/8"
DIMENSION TOLERANCE
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
T. MOORE
X
:
X
DATE:
05/26/10
SCALE: 1:15
QUOTE #
X
SALES:
X
FILE NAME:
23-007-356
1/2"
