APPROX WEIGHT: 967 lbs.

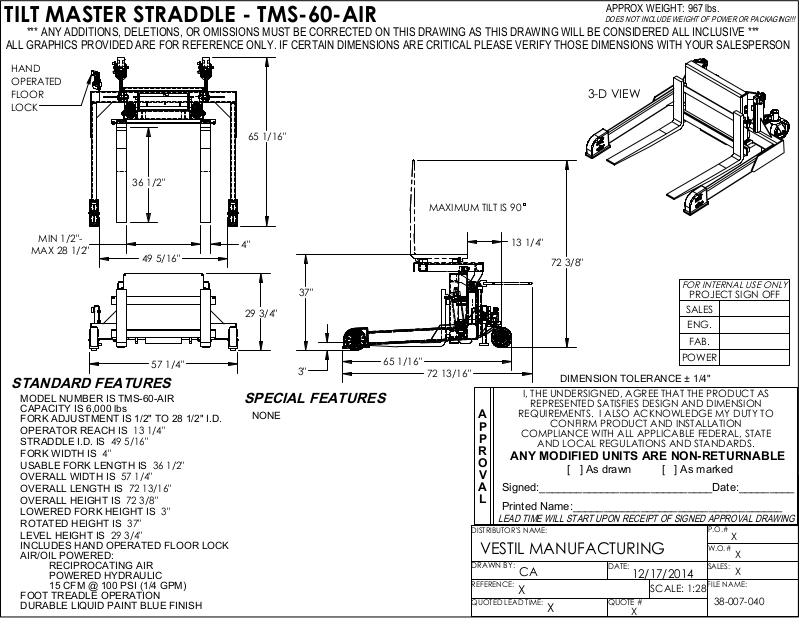

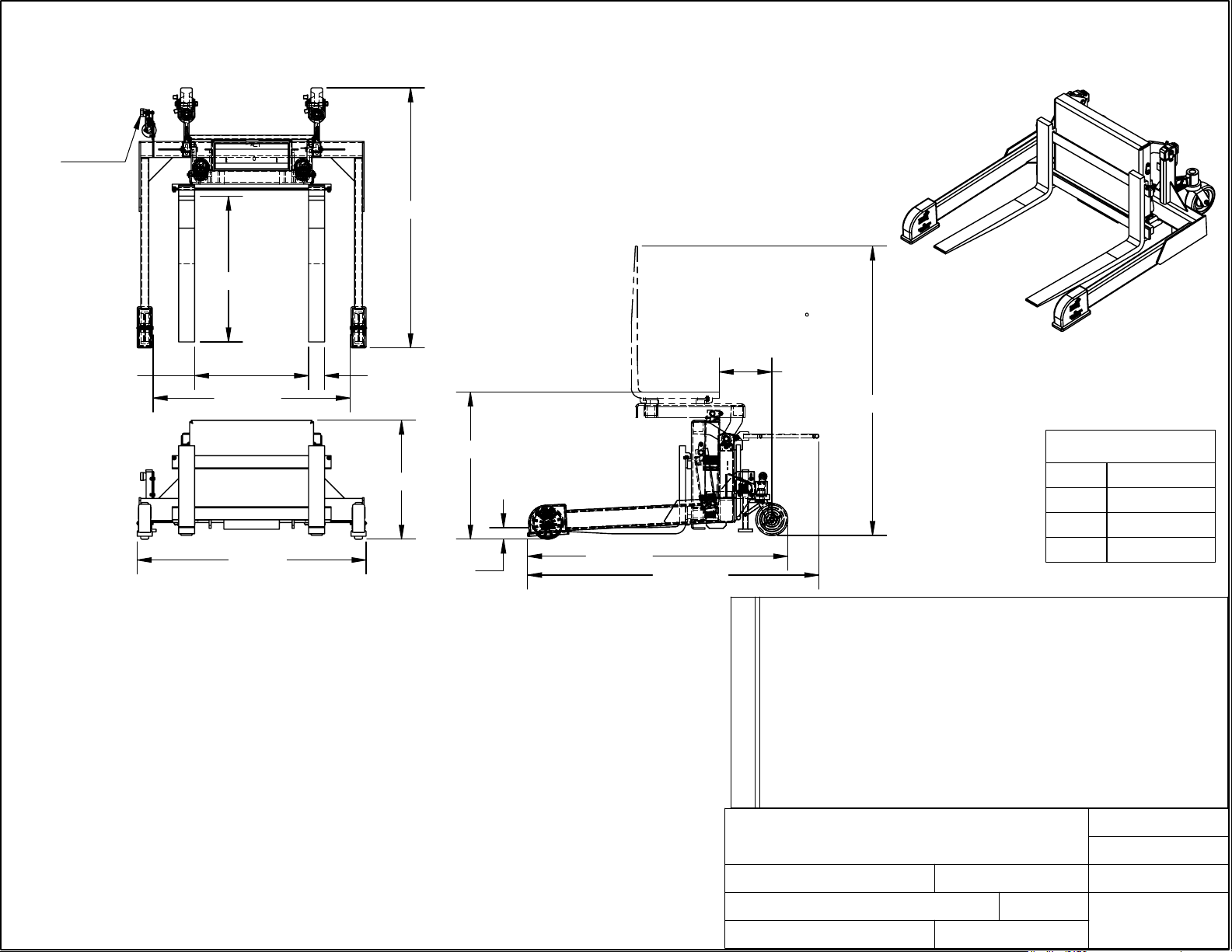

TILT MASTER STRADDLE - TMS-60-AIR
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
HAND
OPERATED
FLOOR
LOCK
65 1/16"
36 1/2"
MAXIMUM TILT IS 90
3-D VIEW
MIN 1/2"-
MAX 28 1/2"
49 5/16"
57 1/4"
STANDARD FEATURES
MODEL NUMBER IS TMS-60-AIR
CAPACITY IS 6,000 lbs
FORK ADJUSTMENT IS 1/2" TO 28 1/2" I.D.
OPERATOR REACH IS
STRADDLE I.D. IS
FORK WIDTH IS
USABLE FORK LENGTH IS
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
LOWERED FORK HEIGHT IS
ROTATED HEIGHT IS
LEVEL HEIGHT IS
INCLUDES HAND OPERATED FLOOR LOCK
AIR/OIL POWERED:
RECIPROCATING AIR
POWERED HYDRAULIC
15 CFM @ 100 PSI (1/4 GPM)
FOOT TREADLE OPERATION
DURABLE LIQUID PAINT BLUE FINISH
4"
13 1/4"
49 5/16"
36 1/2"
57 1/4"
72 13/16"
72 3/8"
3"
37"
29 3/4"
4"
37"
29 3/4"
3"
SPECIAL FEATURES
NONE
65 1/16"
72 13/16"
13 1/4"
72 3/8"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
CA
X
:
X
DATE:
12/17/2014
QUOTE #
X
SCALE: 1:28
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
38-007-040
