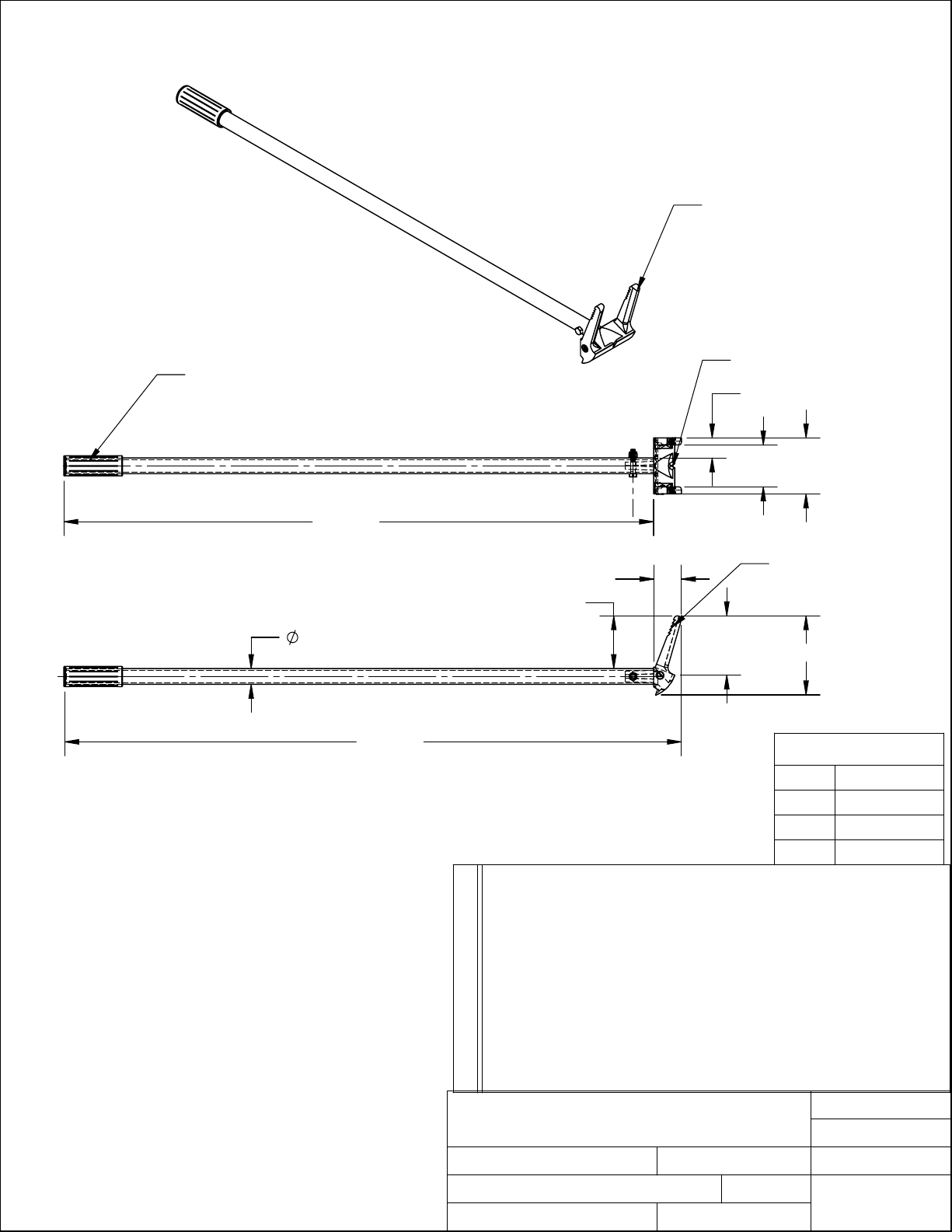

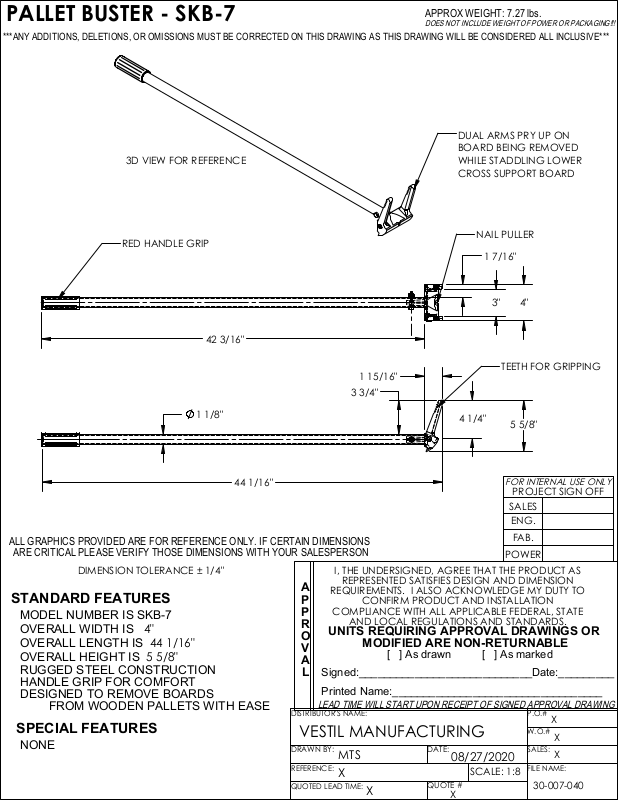

PALLET BUSTER - SKB-7
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
3D VIEW FOR REFERENCE
APPROX WEIGHT: 7.27 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
DUAL ARMS PRY UP ON
BOARD BEING REMOVED
WHILE STADDLING LOWER
CROSS SUPPORT BOARD
RED HANDLE GRIP
42 3/16"
1 15/16"
3 3/4"
1 1/8"
44 1/16"
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS
ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
DIMENSION TOLERANCE ± 1/4"
STANDARD FEATURES
MODEL NUMBER IS SKB-7
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
RUGGED STEEL CONSTRUCTION
4"
44 1/16"
5 5/8"
A
P
P
R
O
V
A
L
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
UNITS REQUIRING APPROVAL DRAWINGS OR
MODIFIED ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
HANDLE GRIP FOR COMFORT
DESIGNED TO REMOVE BOARDS
FROM WOODEN PALLETS WITH EASE
SPECIAL FEATURES
NONE
DISTRIBUTOR'S NAME:
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
MTS
X
:
NAIL PULLER
1 7/16"
4"
3"
TEETH FOR GRIPPING
4 1/4"
DATE:
08/27/2020
SCALE: 1:8
X
QUOTE #
X
5 5/8"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
30-007-040
