APPROX WEIGHT: 110.64 lbs.

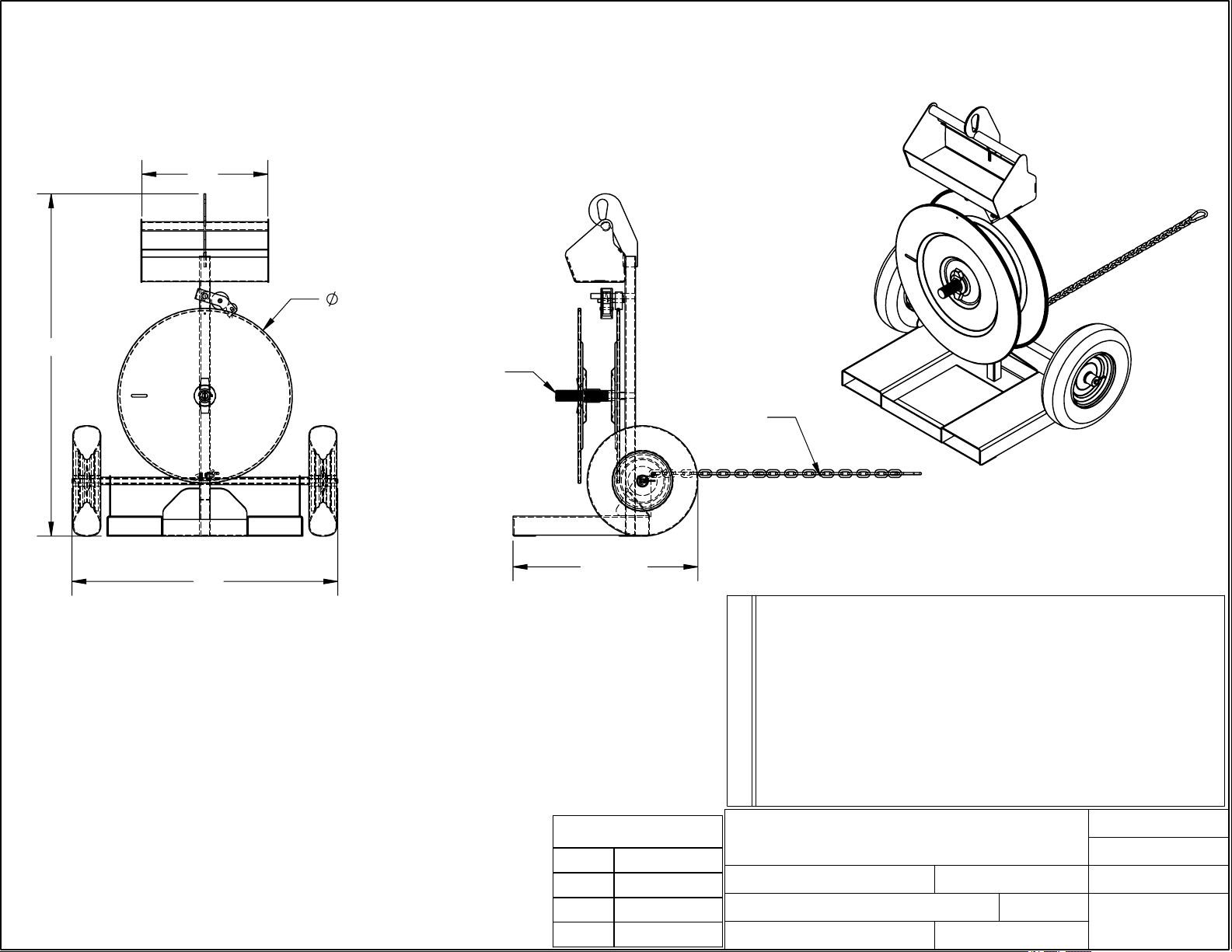

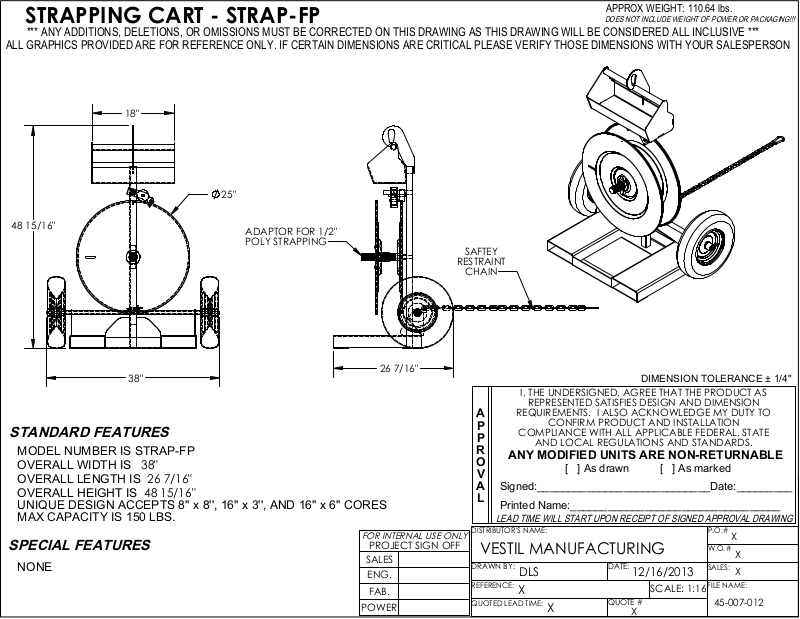

STRAPPING CART - STRAP-FP
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
18"
25"
48 15/16"
38"
ADAPTOR FOR 1/2"
POLY STRAPPING
STANDARD FEATURES
MODEL NUMBER IS STRAP-FP
OVERALL WIDTH IS
OVERALL LENGTH IS
OVERALL HEIGHT IS
38"
26 7/16"
48 15/16"
UNIQUE DESIGN ACCEPTS 8'' x 8'', 16'' x 3'', AND 16'' x 6'' CORES
MAX CAPACITY IS 150 LBS.
FOR INTERNAL USE ONLY
SPECIAL FEATURES
NONE
POWER
26 7/16"
PROJECT SIGN OFF
SALES
ENG.
FAB.
SAFTEY
RESTRAINT
CHAIN
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
DLS
X
:
X
DATE:
QUOTE #
DIMENSION TOLERANCE ± 1/4"
P.O.#
X
W.O.#
X
SALES:
12/16/2013
SCALE: 1:16
X
X
FILE NAME:
45-007-012
